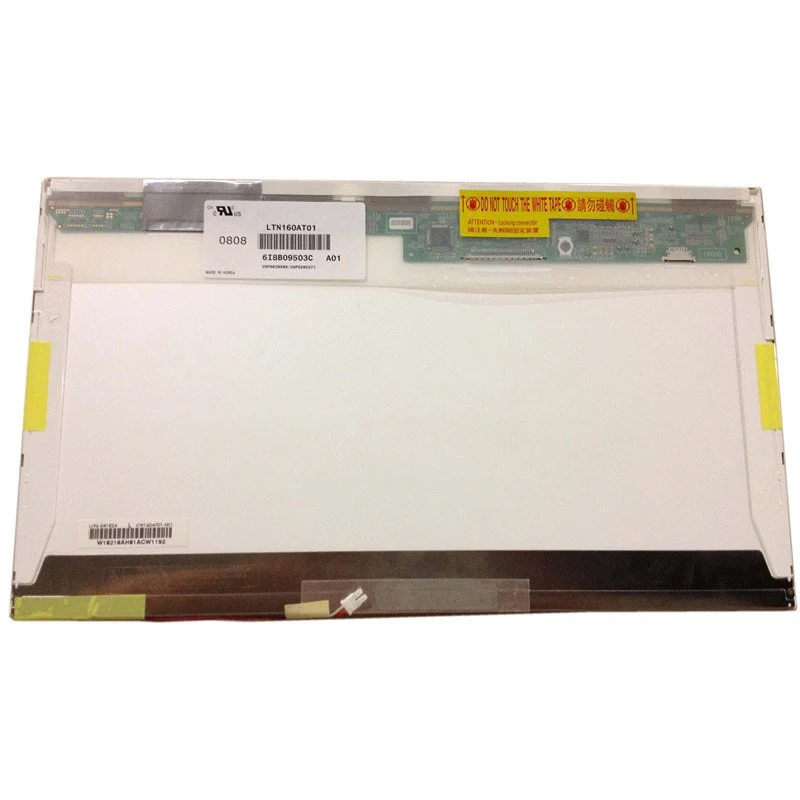

Samsung LTN160AT01-A01 16-Inch TFT LCD Panel 1366×768 Display Module
Samsung LTN160AT01-A01 16-Inch TFT LCD Panel 1366×768 Display Module
Price: $70.00
$60.00/ piece
Add to cart
LTN160AT01-A01
LTN160AT01-A01
LTN160AT01-A01
LTN160AT01-A01

Samsung LTN160AT01-A01 16-Inch TFT LCD Panel 1366×768 Display Module

Price: $70.00
$60.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Samsung LTN160AT01-A01 16-Inch TFT LCD Panel 1366×768 Display Module

Product Information Product Specifications
Model:
LTN160AT01-A01
Brand:
SAMSUNG
Application:
Industrial
Size:
16"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
64
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.000 KG
Overview

Samsung LTN160AT01-A01 16-Inch TFT LCD Display Module


The Samsung LTN160AT01-A01 is a 16.0-inch TFT-LCD panel designed mainly for notebook computers, portable display systems, and replacement LCD applications.

Featuring 1366 × 768 WXGA resolution, TN Normally White transmissive technology, single-channel LVDS interface, and a CCFL backlight system, the LTN160AT01-A01 provides stable image quality, low power consumption, and reliable operation for laptop and embedded display applications.


Key Features

Original Samsung Display TFT LCD panel

16.0-inch widescreen display

Resolution: 1366 × 768 pixels (WXGA)

16:9 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

262K display colors

60% NTSC color gamut

RGB vertical stripe pixel arrangement

LVDS 1-channel 6-bit interface

30-pin LVDS connector

220 cd/m² brightness

600:1 contrast ratio

Single CCFL backlight

Glare surface treatment

3H hard coating


Technical Specifications

SpecificationDetails
ModelLTN160AT01-A01
ManufacturerSamsung
Display Size16.0 Inch
LCD Typea-Si TFT-LCD
Resolution1366 × 768 pixels
Display FormatWXGA
Aspect Ratio16:9
Display ModeTN, Normally White, Transmissive
Display Colors262K
Pixel ArrangementRGB Vertical Stripe
Pixel Density98 PPI
Active Area353.45 × 198.72 mm
Pixel Pitch0.25875 × 0.25875 mm
Brightness220 cd/m²
Contrast Ratio600:1
Viewing Angle65/65/50/50
Response Time8 ms
Refresh Rate60Hz
InterfaceLVDS
Interface Type1 Channel 6-bit
Connector30-pin
Input Voltage3.3V

Typical Applications

Samsung LTN160AT01-A01 is suitable for:

Laptop LCD replacement

Portable industrial equipment

Embedded computer displays

Mobile workstation systems

Custom monitor projects

Legacy notebook repair applications

Industrial portable terminals


Why Choose Samsung LTN160AT01-A01?

Original Samsung LCD quality

Standard 16-inch WXGA format

Stable LVDS digital interface

Low power consumption

Slim and lightweight design

Easy replacement for discontinued notebook LCD panels

Reliable Samsung TFT technology


Quality Assurance

Original Samsung LTN160AT01-A01 LCD panel

100% display function testing

Pixel defect inspection

Brightness testing

LVDS signal verification

Connector inspection

Anti-static protective packaging

Worldwide LCD supply capability


FAQ

What is the resolution of Samsung LTN160AT01-A01?

The LTN160AT01-A01 features 1366 × 768 WXGA resolution.

What interface does LTN160AT01-A01 use?

It uses a single-channel 6-bit LVDS interface.

What backlight does LTN160AT01-A01 use?

The panel uses a single CCFL backlight system.

Is LTN160AT01-A01 an industrial LCD?

It was mainly designed for notebook computers, but it can also be used in compatible embedded and replacement display applications.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Samsung LTN160AT01-A01 16-Inch TFT LCD Panel 1366×768 Display Module

Samsung LTN160AT01-A01 16-Inch TFT LCD Panel 1366×768 Display Module

LTN160AT01-A01

16"
LTN106W2-L01 Samsung 10.6 inch 1280*768 lcd display panel

LTN106W2-L01 Samsung 10.6 inch 1280*768 lcd display panel

LTN106W2-L01

10.6"
1280(RGB)×768, 15:9, WXGA
170 cd/m² (Typ.)
250:1 (Typ.) (TM)
45/45/15/30 (Min.)(CR≥10)
1 pcs CCFL, 10K hrs, Without Driver
LVDS (2 ch, 6-bit), 30 pins Connectorr
a-Si TFT-LCD, LCM
LTN150XB-L03 Samsung 15 inch 1024*768 tft lcd module

LTN150XB-L03 Samsung 15 inch 1024*768 tft lcd module

LTN150XB-L03

15"
1024(RGB)×768, XGA, 4:3
160 cd/m² (Typ.)
200:1 (Min.) (TM)
45/45/25/45 (Typ.)(CR≥10)
1 pcs CCFL, 10K hrs, Without Driver
LVDS (1 ch, 6-bit), 30 pins Connector
a-Si TFT-LCD, LCM
LTN156HL01-102 15.6 Inch FHD IPS LCD Panel Samsung Industrial TFT Display

LTN156HL01-102 15.6 Inch FHD IPS LCD Panel Samsung Industrial TFT Display

LTN156HL01-102

15.6"
1920(RGB)×1080, FHD 141PPI
300 cd/m² (Typ.)
600:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (2 Lanes) , 30 pins Connector
a-Si TFT-LCD, LCM
