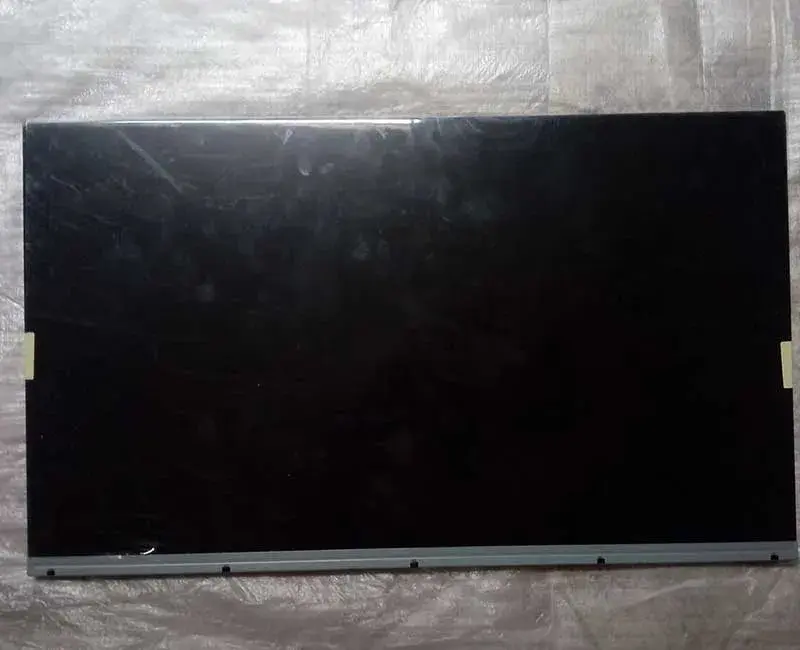

M195XTN01.0 AUO 19.5" WXGA TN LCD Module 1366×768 Single LVDS 30Pin
M195XTN01.0 AUO 19.5" WXGA TN LCD Module 1366×768 Single LVDS 30Pin
Price: $130.00
$125.00/ piece
Add to cart
AUO M195XTN01.0 19.5 inch 1366×768 WXGA TN TFT‑LCD module single‑channel LVDS 30pin for monitor and all‑in‑one PC replacement
AUO M195XTN01.0 19.5 inch 1366×768 WXGA TN TFT‑LCD module single‑channel LVDS 30pin for monitor and all‑in‑one PC replacement

M195XTN01.0 AUO 19.5" WXGA TN LCD Module 1366×768 Single LVDS 30Pin

Price: $130.00
$125.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

M195XTN01.0 AUO 19.5" WXGA TN LCD Module 1366×768 Single LVDS 30Pin

Product Information Product Specifications
Model:
M195XTN01.0
Brand:
AUO
Application:
Industrial
Size:
19.5"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
300
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview
M195XTN01.0 AUO 19.5 Inch 1366(RGB)×768 WXGA TN a‑Si TFT‑LCD LCM Module Single‑Channel LVDS 30Pin

 1. Product Overview

The M195XTN01.0 is original AUO 19.5‑inch a‑Si TN TFT‑LCD complete LCM module with native 1366(RGB)×768 WXGA resolution, 80 PPI pixel density。It adopts TN normally‑white display mode, matte anti‑glare polarizer, equipped with single‑channel 8‑bit LVDS 30‑pin interface and integrated WLED backlight unit (without onboard constant‑current driver IC). Cost‑effective display solution for desktop monitor repair, all‑in‑one PC assembly and light‑duty embedded display equipment。Zylcdshop supplies Grade A original M195XTN01.0 modules. Each unit passes pixel defect check and aging test before shipment. We support sample trial and bulk wholesale, worldwide shipping, and provide datasheet, pin‑out definition for engineering reference.

 2. Full Technical Specification Table

CategoryDetailed Parameter
Full ModelM195XTN01.0
ManufacturerAUO
Diagonal Size19.5 Inch, Landscape 16:9
Native Resolution1366(W) × 768(H) WXGA, 80 PPI
Display Technologya‑Si TFT‑LCD, TN Mode, Normally White, Transmissive
Pixel ArrangementRGB Vertical Stripe
Typical Brightness200 cd/m²
Static Contrast Ratio600:1 Typical
Viewing Angle (CR≥10)Left/Right/Up/Down: 45° / 45° / 20° / 45°
Color Performance6‑bit + FRC, 16.7M Colors
G‑to‑G Response Time5ms Typical
Refresh Rate60Hz Native
Surface TreatmentAnti‑Glare Matte Polarizer
Backlight ConfigurationComplete LCM with integrated WLED backlight, no onboard constant‑current driver IC
Signal InterfaceSingle‑Channel 8‑bit LVDS, 30‑Pin FPC Connector
Logic Supply VoltageDC 5.0V Typical
Active Area434.0(W) × 235.8(H) mm
Outline Dimension452.0(W) × 263.0(H) × 11.0(D) mm
Net Weight1.10 Kg Typical
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
Humidity Range10%‑90% RH Non‑Condensing
Touch FunctionBare LCD Module, No Built‑in Touch (Support optical bonding service)
Compliance StandardRoHS
Stock StatusIn Stock, Lead Time 1‑3 Working Days
Warranty Policy6 Months RMA Support

 3. Compatibility & Replacement Note

M195XTN01.0 requires single‑channel 8‑bit LVDS driver board. External WLED constant‑current driver board is required for brightness adjustment.When replacing similar 19.5‑inch AUO series panels, please verify signal timing, pin assignment and mechanical mounting dimension before installation.We provide optional capacitive touch optical bonding service for custom industrial touch monitor projects. Datasheet and pin‑out diagram available upon request.

 4. Core Product Advantages

  1. Cost‑effective AUO TN display module, fast 5ms response time, stable performance for daily office monitor applications

  2. Matte anti‑glare polarizer, reduce indoor ambient light reflection for long‑time document browsing

  3. Single‑channel 8‑bit LVDS interface, simple peripheral circuit design, easy for system integration

  4. Compact mechanical dimension, fits mainstream 19.5‑inch monitor and all‑in‑one PC chassis

  5. Low‑power WLED backlight unit, energy‑saving for office equipment

  6. Grade A original module, strict dead‑pixel, bright‑spot and mura inspection before packing

  7. Sufficient spot inventory, support small sample trial and large‑volume factory wholesale with competitive price

  8. RoHS compliant, meet global consumer‑electronic environmental requirements

  9. Supply datasheet, pin assignment and driving reference for engineering development

 5. Typical Application Scenarios

  • Broken 19.5‑inch desktop monitor screen replacement & repair

  • All‑in‑one PC integrated display assembly and spare parts

  • Light‑duty embedded control terminal display

  • Small indoor secondary advertising display

  • Compatible replacement for AUO M195XTN series 19.5‑inch LCD modules

6. Frequently Asked Questions

Q1: Does M195XTN01.0 need separate WLED driver board?

A1: Yes. This LCM has no onboard backlight constant‑current IC. External WLED driver board is required to adjust brightness.

Q2: Can dual‑channel LVDS controller drive this AUO panel?

A2: It is single‑channel LVDS panel. Dual‑channel driver board can work by setting single‑channel output mode.

Q3: Can M195XTN01.0 be modified into touch screen monitor?

A3: Original module without touch sensor. We offer optional capacitive touch glass optical bonding service for custom touch display projects.

Q4: What is operating temperature range?

A4: Operating temperature 0℃ ~ +50℃, suitable for indoor office and light‑industrial environment, avoid long‑term direct sunlight exposure.

Q5: Can I order sample unit?

A5: Yes, sample and bulk orders are acceptable. Contact us for quotation and request datasheet & pin‑out documents.

Related Products :AUO LCD Panels19.5 Inch WXGA Monitor Panels

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
M195XTN01.0 AUO 19.5" WXGA TN LCD Module 1366×768 Single LVDS 30Pin

M195XTN01.0 AUO 19.5" WXGA TN LCD Module 1366×768 Single LVDS 30Pin

M195XTN01.0

19.5"
LM195WD2-SLA1   LG Display  19.5 inch  lcd display screens

LM195WD2-SLA1 LG Display 19.5 inch lcd display screens

LM195WD2-SLA1

19.5"
1600*900
250
1000:1
89/89/89/89
WLED
30 pins
a-Si TFT-LCD, LCM
M195FGK-L30   Innolux 19.5  inch  tft screen

M195FGK-L30 Innolux 19.5 inch tft screen

M195FGK-L30

19.5"
1600(RGB)×900, HD+ 94PPI
200 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
85/85/80/80 (Typ.)(CR≥10)
11S4P WLED , 40K hours , No Driver
LVDS (2 ch, 8-bit) , Connector 30 pins
a-Si TFT-LCD, LCM
m195fge-p03 Innolux   19.5  inch  tft screen

m195fge-p03 Innolux 19.5 inch tft screen

m195fge-p03

19.5"
1600(RGB)×900, HD+ 94PPI
0 cd/m²
No B/L
LVDS (2 ch, 8-bit) , Connector 30 pins
a-Si TFT-LCD, CELL , FOB
