LM340UW4‑SSA1 LG 34 Inch 3440×1440 Curved IPS eDP LCD Panel
LM340UW4‑SSA1 LG 34 Inch 3440×1440 Curved IPS eDP LCD Panel
Price: $195.00
$190.00/ piece
Add to cart
LM340UW4‑SSA1 LG 34 Inch R1900 Curved WQHD IPS LCD Panel

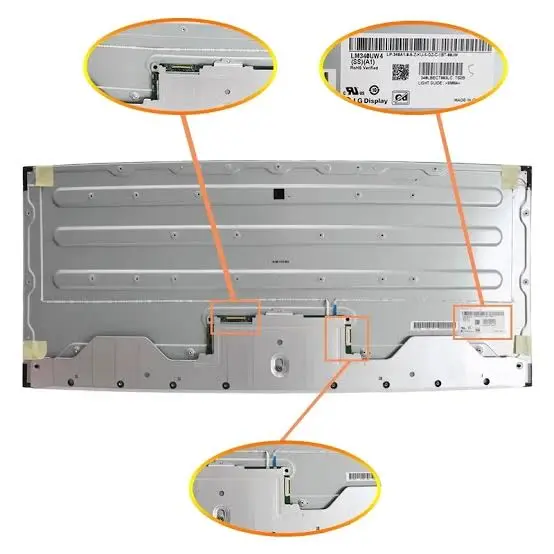

LM340UW4‑SSA1 LG Curved LCD Screen Back Side 40Pin eDP Connecto
LM340UW4‑SSA1 LG 34 Inch R1900 Curved WQHD IPS LCD Panel
LM340UW4‑SSA1 LG Curved LCD Screen Back Side 40Pin eDP Connecto

LM340UW4‑SSA1 LG 34 Inch 3440×1440 Curved IPS eDP LCD Panel

Price: $195.00
$190.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LM340UW4‑SSA1 LG 34 Inch 3440×1440 Curved IPS eDP LCD Panel

Product Information Product Specifications
Model:
lm340uw4-ssa1
Brand:
LG
Application:
Industrial
Resolution:
3440(RGB)×1440, 21:9
Brightness:
300 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10
Lamp Type:
4 strings × 2CN WLED, 30K hrs
Signal Interface:
eDP (8 Lanes), HBR1 (2.7G/lane) Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
185
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview

LM340UW4‑SSA1 Original LG Display 34 Inch 3440×1440 WQHD R1900 Curved IPS eDP LCD Panel

1. Product Overview

LM340UW4‑SSA1 is an a‑Si TFT‑LCD curved IPS module produced by LG Display, belonging to LM340UW4 series. It features 21:9 ultra‑wide aspect ratio, R1900 curvature, native WQHD 3440×1440 resolution, 100Hz refresh rate, edge‑lit WLED backlight, 8‑lane eDP HBR1 signal interface

Typical brightness 300 cd/m², 1000:1 contrast ratio, 99% sRGB color gamut, anti‑glare AG25% 3H hard‑coating surface. Widely used for Alienware AW3418DW and other brand 34‑inch curved gaming monitors OEM assembly and aftermarket repair, also fits ultra‑wide industrial display projects.

Zylcdshop keeps spot stock for LM340UW4‑SSA1, supports sample evaluation and bulk wholesale, provides original datasheet, pin definition and technical matching support for global buyers.

 2. Full Technical Specifications

ItemParameter
Model NumberLM340UW4‑SSA1
BrandLG Display
Screen Size34 inch
Aspect Ratio21:9
Native Resolution3440 × 1440 (WQHD)
Panel Typea‑Si TFT‑LCD, IPS Normally Black
CurvatureR1900 Curved
Brightness300 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.)
Color Gamut99% sRGB, 8bit+FRC 16.7M Colors
BacklightEdge‑type WLED, 30000hrs lifetime
InterfaceeDP 8‑lane HBR1, 40 Pins Connector
Refresh Rate100Hz
Response Time14ms G‑to‑G (Typ.)
Viewing Angle89/89/89/89 (CR≥10)
SurfaceAnti‑Glare AG25%, 3H Hard Coating
Active Area797.22 × 333.84 mm
Outline Dimension809.55 × 354.7 ×17.1 mm
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
ComplianceRoHS compliant

3. Core Advantages of LM340UW4‑SSA1

  1. R1900 Curved 21:9 Ultra‑Wide IPS ExperienceR1900 gentle curvature brings immersive visual effect, 21:9 ultra‑wide screen for gaming, multi‑window office and content creation.

  2. Excellent Color Performance99% sRGB high color gamut, consistent color reproduction at wide viewing angles, suitable for gaming and graphic‑related scenarios.

  3. Anti‑Glare Matte SurfaceAG anti‑glare coating reduces ambient light reflection, perfect for bright‑light gaming room and office environment.

  4. Original LG A+ Grade QualityGenuine LG curved panel, stable optical performance, direct drop‑in replacement for AW3418DW and compatible curved monitors.

  5. Flexible Order & Technical SupportSupport 1pc sample order for monitor repair, competitive bulk‑order price. Supply datasheet and pinout diagram for engineering reference.

 4. Main Application Scenarios

‑ 34‑inch R1900 curved gaming monitor OEM & spare‑part replacement ‑ Alienware AW3418DW monitor screen repair & refurbishment ‑ Ultra‑wide 21:9 desktop display equipment ‑ Multi‑screen splicing, industrial ultra‑wide display terminal ‑ Custom simulation display project

5. Why Source LM340UW4‑SSA1 From Zylcdshop

We are professional distributor for LG, AUO, BOE, Innolux LCD panels.

  1. Spot inventory of LM340UW4‑SSA1, ship within 24 hours after payment

  2. Strict pre‑shipment full‑function testing, 12‑month quality warranty (exclude man‑made damage)

  3. Supply original datasheet, pin assignment and pre‑sales compatibility consultation

  4. Accept small sample & large‑volume bulk orders

  5. Multiple global logistics options and flexible B2B payment terms

 6. FAQ

Q1: What is the difference between LM340UW4‑SSA1 and LM340UW2‑SSA1?A1: They belong to LM340UW series, same resolution and curvature; differences lie in refresh rate, backlight and mechanical dimension. Please confirm exact model before purchasing.

Q2: What interface does LM340UW4‑SSA1 adopt?A2: It uses 8‑lane HBR1 eDP interface, requires matching eDP driver board, cannot work with LVDS solution directly.

Q3: Is LM340UW4‑SSA1 touch screen?A3: Standard version is non‑touch; touch overlay can be added for custom projects.

Q4: Can I order one piece for monitor repair?A4: Yes, 1‑piece sample is available for testing; better unit price for bulk quantity.


If you are searching for original LG LM340UW4‑SSA1 34‑inch 3440×1440 WQHD R1900 curved IPS eDP LCD panel for gaming monitor OEM or repair projects, please contact us for latest wholesale price, datasheet and technical consultation. We also supply other LG LM340UW series curved display modules.
