AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen
AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen
Price: $69.00
$65.00/ piece
Add to cart

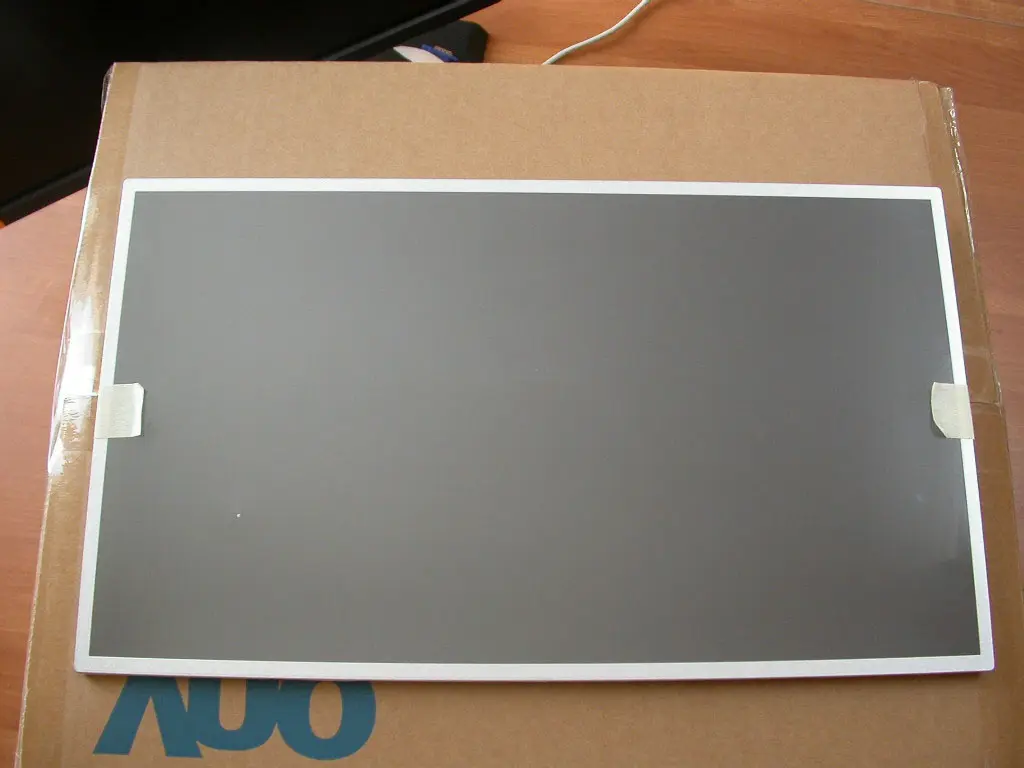

B173RW01 V0 AUO 17.3 Inch 1600×900 HD+ LVDS LCD Panel Front View

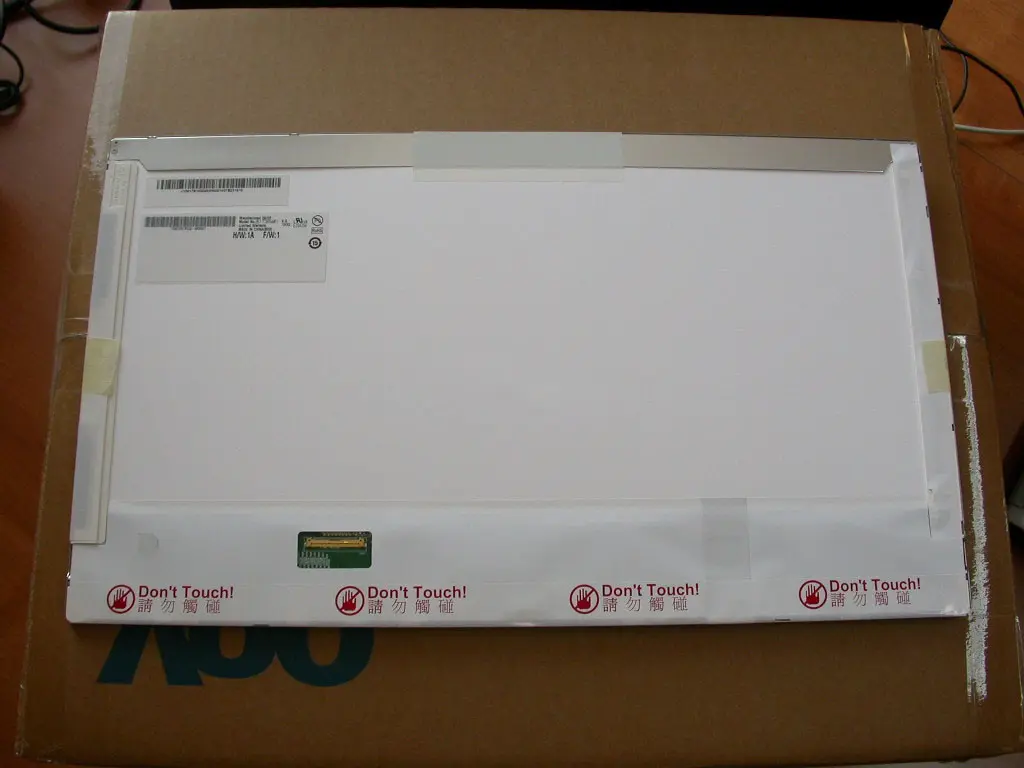

B173RW01 V0 AUO LCD Screen Back Side 40Pin LVDS Connector
B173RW01 V0 AUO 17.3 Inch 1600×900 HD+ LVDS LCD Panel Front View
B173RW01 V0 AUO LCD Screen Back Side 40Pin LVDS Connector

AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen

Price: $69.00
$65.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen

Product Information Product Specifications
Model:
B173RW01 V0
Brand:
AUO
Application:
Industrial
Size:
17.3"
Resolution:
1600(RGB)×900, HD+, 16:9
Brightness:
220 cd/m² (Typ.)
Contrast Ratio:
500:1 (Typ.) (TM)
Viewing Angle:
45/45/15/35 (Typ.)(CR≥10
Lamp Type:
WLED, 10K hrs, With LED Driver
Signal Interface:
LVDS (2 ch, 6-bit), 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
310
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.000 KG
Overview

AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen

The AUO B173RW01 V0 is a high-quality 17.3-inch TFT LCD panel designed for laptop screen replacements and upgrades. Featuring a crisp HD+ resolution of 1600×900 pixels, this display delivers vibrant colors and sharp details, making it ideal for multimedia consumption and legacy gaming setups. It utilizes a reliable 40-pin LVDS interface and WLED backlight technology for energy-efficient, uniform illumination. Sourced directly for ZYLCD Shop, every B173RW01 V0 panel undergoes rigorous Grade A testing to guarantee zero dead pixels, flawless backlighting, and accurate color reproduction. Whether you are repairing a cracked screen on an older 17-inch notebook or restoring a workstation, this direct-fit replacement ensures seamless compatibility and long-lasting performance. Backed by our secure packaging, hassle-free warranty, and expert technical support, ZYLCD is your trusted partner for premium laptop display solutions.

Product Features

  • HD+ Visual Experience: Native 1600×900 resolution provides 33% more screen real estate than standard 720p HD panels.

  • Legacy LVDS Compatibility: Equipped with a standard 40-pin LVDS connector, perfectly matching older high-performance laptops and workstations.

  • WLED Backlight Technology: Delivers bright, uniform illumination while consuming less power and generating less heat than older CCFL screens.

  • Premium TFT Panel: Ensures fast response times and excellent color saturation for an immersive viewing experience.

  • 100% Dead Pixel Free: Every unit is manually inspected under strict Grade A+ standards before dispatch.

  • Direct Plug & Play: No BIOS updates or extra drivers required; simply connect the LVDS cable and power on.

Technical Specifications

Model NumberB173RW01 V0
ManufacturerAU Optronics (AUO)
Screen Size17.3 Inches (Diagonal)
Max Resolution1600 × 900 (HD+)
Signal InterfaceLVDS 40-Pin Connector
Backlight TypeWLED (White LED)
Aspect Ratio16:9
Surface FinishGlossy / Matte (Please verify original screen)
Panel TechnologyTFT LCD
ConditionBrand New, Grade A+

Applications & Compatibility

The AUO B173RW01 V0 is widely used in 17.3-inch multimedia laptops, legacy gaming notebooks, and mobile workstations. Common compatible series include:

  • Dell: Inspiron 17R (N7110, N7010), XPS 17 (L701X, L702X), Vostro 3700

  • HP / Compaq: Pavilion dv7, dv8 series, Envy 17, EliteBook 8740w / 8760w

  • Alienware: M17x R2 / R3 (Select configurations)

  • Acer: Aspire 7741G, 7745G, 7750G, 8943G, 8950G series

  • Lenovo: IdeaPad Y700, Z70 series

⚠️ Important: 40-pin LVDS and 40-pin eDP connectors look similar but are NOT interchangeable. Always check the back label of your original screen for the exact "B173RW01 V0" model number before ordering.

Why Choose ZYLCD Shop?

  • Expert Verification: We specialize in hard-to-find legacy screens like the LVDS B173RW01 V0.

  • Rigorous Pre-Ship Testing: We test the LVDS signal, backlight uniformity, and color accuracy on actual motherboard test rigs.

  • Heavy-Duty Packaging: 17.3" screens are fragile. We use custom anti-static bags, thick pearl cotton, and rigid double-wall boxes.

  • Worry-Free Warranty: Comprehensive return and replacement policy for manufacturer defects.

  • Global Fast Shipping: Expedited dispatch options available for urgent repair shops and individual users.

Frequently Asked Questions

What is the difference between LVDS 40-pin and eDP 40-pin for 17.3" screens?

LVDS (Low-Voltage Differential Signaling) is an older video standard used in laptops made before ~2015, while eDP (Embedded DisplayPort) is the modern standard. Even though both may have 40 pins, their voltage and pin layouts are completely different. Plugging an eDP screen into an LVDS cable can damage your motherboard. The B173RW01 V0 is strictly an LVDS panel.

Is the AUO B173RW01 V0 screen Glossy or Matte?

The B173RW01 V0 was manufactured in both Glossy (shiny, better contrast) and Matte (anti-glare, better for bright rooms) finishes depending on the specific laptop model it shipped with. We recommend checking your current broken screen's surface type or contacting us with your laptop's exact model number so we can ship the matching finish.

How fragile is the 40-pin LVDS connector cable during installation?

The LVDS micro-cable and the connector on the back of the screen are very delicate. When replacing the B173RW01 V0, never pull the cable by the wires; always grip the plastic connector head. Additionally, always disconnect your laptop's battery before unplugging or plugging in the LVDS cable to prevent blowing the motherboard backlight fuse.

Do you offer wholesale pricing for computer repair shops?

Yes, ZYLCD Shop provides tiered wholesale discounts for repair businesses, refurbishers, and IT departments. Please use the "Request a Quote" button below to contact our B2B sales team for volume pricing on the B173RW01 V0 and other 17.3-inch panels.

Need a Reliable 17.3" Replacement Screen?

Stock is moving fast for these legacy LVDS panels. Secure yours today or let our technicians verify your laptop's compatibility for free.

Verify Compatibility / Get a Quote  Add to Cart

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen

AUO B173RW01 V0 17.3" HD+ (1600x900) Laptop LCD Replacement Screen

B173RW01 V0

17.3"
1600(RGB)×900, HD+, 16:9
220 cd/m² (Typ.)
500:1 (Typ.) (TM)
45/45/15/35 (Typ.)(CR≥10
WLED, 10K hrs, With LED Driver
LVDS (2 ch, 6-bit), 40 pins Connector
a-Si TFT-LCD, LCM
AUO B173ZAN01.4 17.3" Industrial LCD Display Panel 3840×2160 eDP

AUO B173ZAN01.4 17.3" Industrial LCD Display Panel 3840×2160 eDP

B173ZAN01.4

17.3"
3840×2160
400 cd/m²
1000:1
85/85/85/85
WLED
eDP
LCM
b173han05.2  Sharp  17.3  inch lcd display screens

b173han05.2 Sharp 17.3 inch lcd display screens

b173han05.2

17.3"
1920(RGB)×1080, FHD 127PPI
300 cd/m² (Typ.)
1000:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.4 , 40 pins Connector
LTPS TFT-LCD, LCM
b173han05.5   Sharp 17.3  inch  lcd panel

b173han05.5 Sharp 17.3 inch lcd panel

b173han05.5

17.3"
1920(RGB)×1080, FHD 127PPI
300 cd/m² (Typ.)
1000:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.4 , 40 pins Connector
LTPS TFT-LCD, LCM
B173RW01 V0 is a 17.3" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,B173RW01 V0 display has a resolution of 1600(RGB)×900, HD+, 16:9, Contrast Ratio is 500:1 (Typ.) (TM),Viewing Angle is 45/45/15/35 (Typ.)(CR≥10,Lamp Type is WLED, 10K hrs, With LED Driver,Signal Interface is LVDS (2 ch, 6-bit), 40 pins Connector,Brightness is 220 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of B173RW01 V0 after packaging is 3.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
