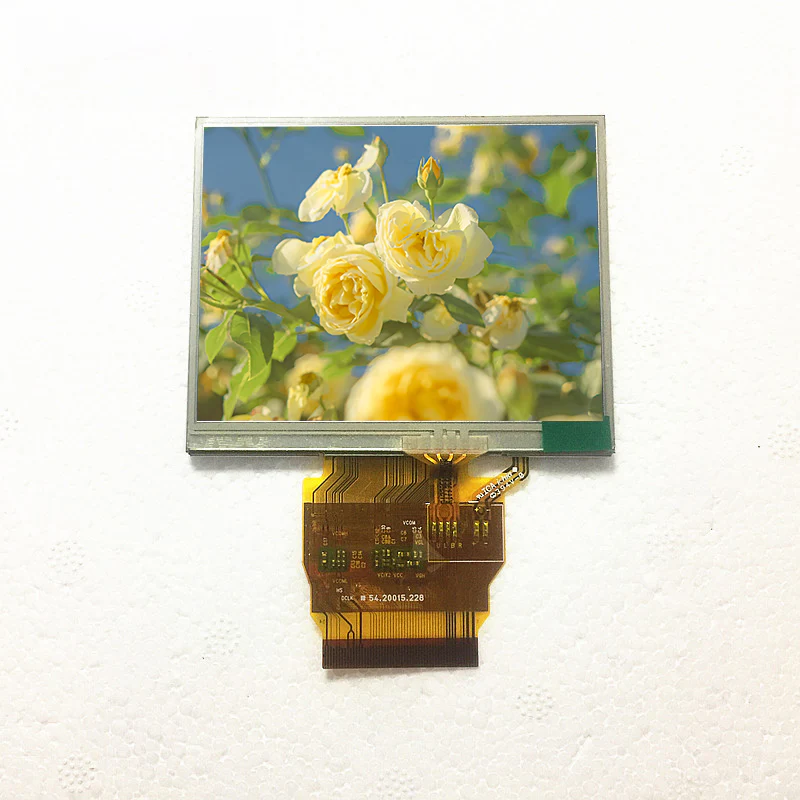

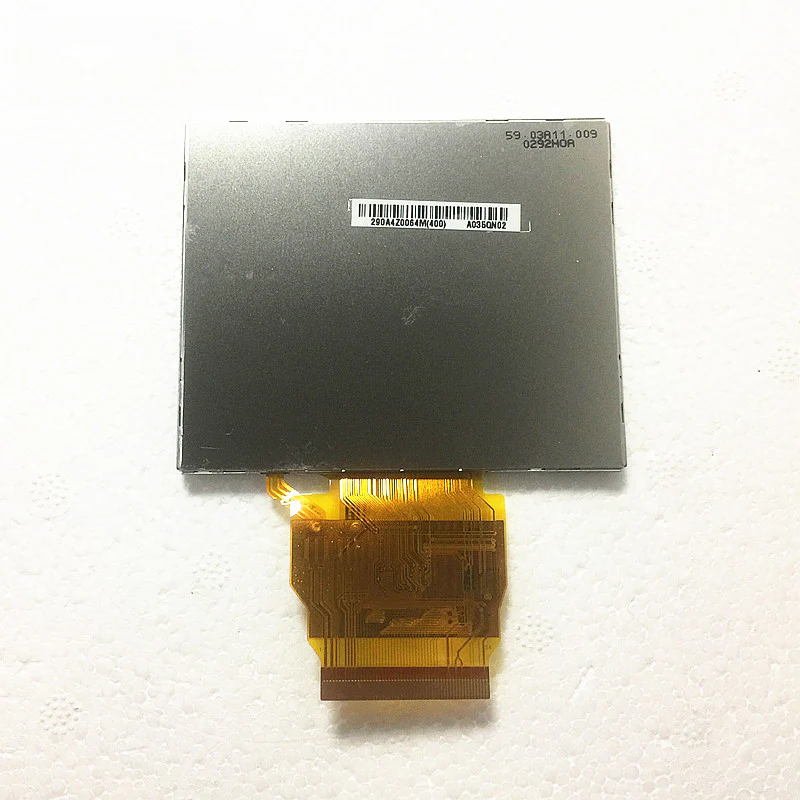

A035QN02 3.5" TFT LCD Panel AUO 320×240 QVGA RGB Display
A035QN02 3.5" TFT LCD Panel AUO 320×240 QVGA RGB Display
Price: $25.00
$19.50/ piece
Add to cart
A035QN02
A035QN02
A035QN02
A035QN02

A035QN02 3.5" TFT LCD Panel AUO 320×240 QVGA RGB Display

Price: $25.00
$19.50/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

A035QN02 3.5" TFT LCD Panel AUO 320×240 QVGA RGB Display

Product Information Product Specifications
Model:
A035QN02
Brand:
AUO
Application:
Industrial
Size:
3.5"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
96
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

AUO A035QN02 3.5-Inch TFT LCD Display Module


The AUO A035QN02 is a 3.5-inch a-Si TFT-LCD module designed for portable electronics, industrial handheld terminals, medical equipment, HMI devices, navigation systems, and embedded applications. It features a 320 × 240 (QVGA) resolution, TN Normally White transmissive technology, and a parallel RGB interface, delivering stable image quality and reliable operation.

With its white LED backlight, compact form factor, and wide operating temperature range, the A035QN02 is well suited for OEM designs and replacement projects in industrial environments.


Key Features

3.5-inch TFT LCD module

Native resolution: 320 × 240 (QVGA)

a-Si TFT active matrix technology

TN, Normally White, Transmissive display

Parallel RGB interface

White LED backlight

Compact and lightweight design

3.3V logic power supply

Suitable for industrial and embedded applications


Technical Specifications

SpecificationDetails
ModelA035QN02
ManufacturerAUO
Display Size3.5 Inch
Resolution320 × 240 (QVGA)
Display Technologya-Si TFT-LCD
Display ModeTN, Normally White, Transmissive
Aspect Ratio4:3
Active Area70.08 × 52.56 mm
Outline Dimensions76.9 × 63.9 × 2.92 mm
Brightness430 cd/m² (Typ.)
Contrast Ratio300:1 (Typ.)
Viewing Angle60°/60°/50°/55° (Typ.)
Display Colors262K (6-bit)
Pixel Density115 PPI
InterfaceParallel RGB (1-ch, 6-bit) + SPI
Connector54-pin FPC

Typical Applications

Industrial handheld terminals

Human-Machine Interface (HMI)

Portable navigation devices

Medical instruments

Digital cameras

Test and measurement equipment

Embedded control systems

Portable consumer electronics


Why Choose A035QN02?

The A035QN02 combines a compact 3.5-inch form factor, reliable QVGA resolution, and high-brightness LED backlighting, making it an excellent solution for portable and industrial equipment. Its parallel RGB interface enables easy integration into embedded systems, while its industrial operating temperature range supports reliable performance in demanding environments.


Quality Assurance & Supply Support

Original AUO LCD panel

100% functional testing before shipment

Anti-static protective packaging

OEM and replacement support

Bulk order availability

Worldwide shipping

Technical compatibility assistance


FAQ Section

What resolution does the A035QN02 support?

It supports a native resolution of 320 × 240 (QVGA).

What interface does this LCD panel use?

The panel features a Parallel RGB (1-channel, 6-bit) + SPI interface with a 54-pin FPC connector.

What type of backlight does it use?

It uses a White LED (WLED) backlight with a typical minimum lifetime of 10,000 hours.

Is the A035QN02 suitable for industrial applications?

Yes. It is widely used in industrial control systems, medical equipment, portable navigation devices, HMI terminals, and embedded electronics.

Is this a touchscreen display?

No. The standard A035QN02 is a non-touch TFT LCD module. Some product variants may be paired with an external resistive touch panel depending on the application.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
A035QN02 3.5" TFT LCD Panel AUO 320×240 QVGA RGB Display

A035QN02 3.5" TFT LCD Panel AUO 320×240 QVGA RGB Display

A035QN02

3.5"
A035QN02 VG  AUO  3.5 inch LCD Display Module LCD Screen

A035QN02 VG AUO 3.5 inch LCD Display Module LCD Screen

A035QN02 VG

3.5"
320(RGB)×240, QVGA 115PPI
430 cd/m² (Typ.)
300:1 (Typ.) (TM)
60/60/50/55 (Typ.)(CR≥10)
WLED [6S1P] , 10K hours , W/O Driver
Parallel RGB (1 ch, 6-bit) + SPI , 67 pins FPC
a-Si TFT-LCD, LCM
A035QN02 is a 3.5" Display screen Product from AUO.According to AUO's product specification sheet,A035QN02 display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of A035QN02 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
