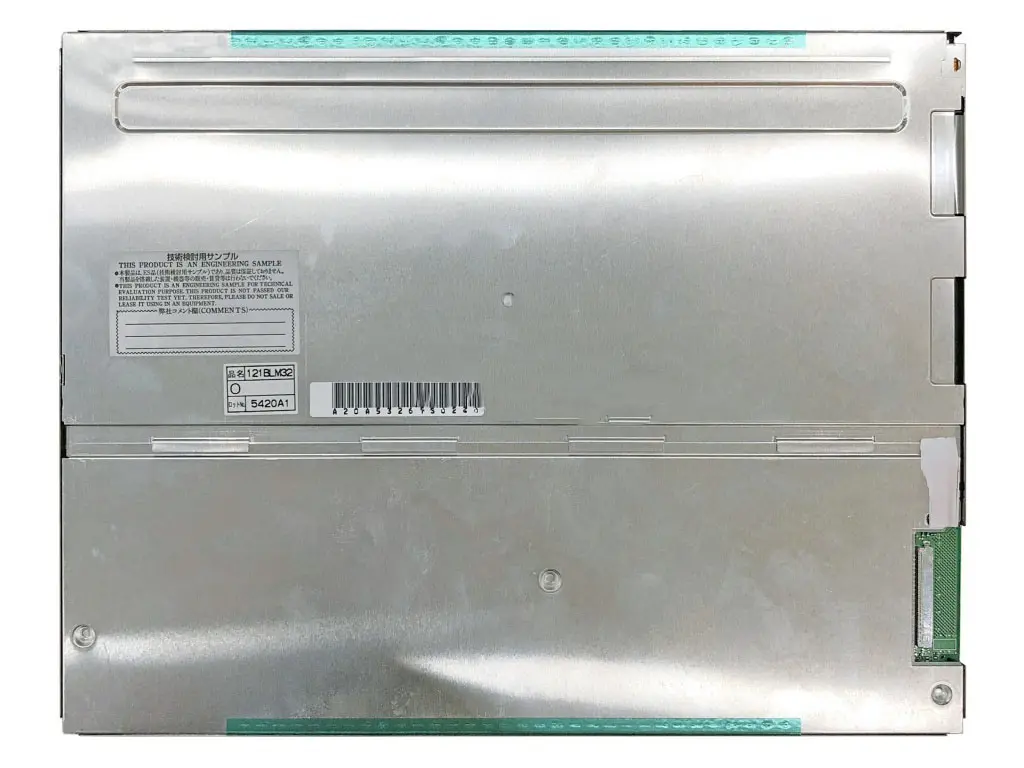

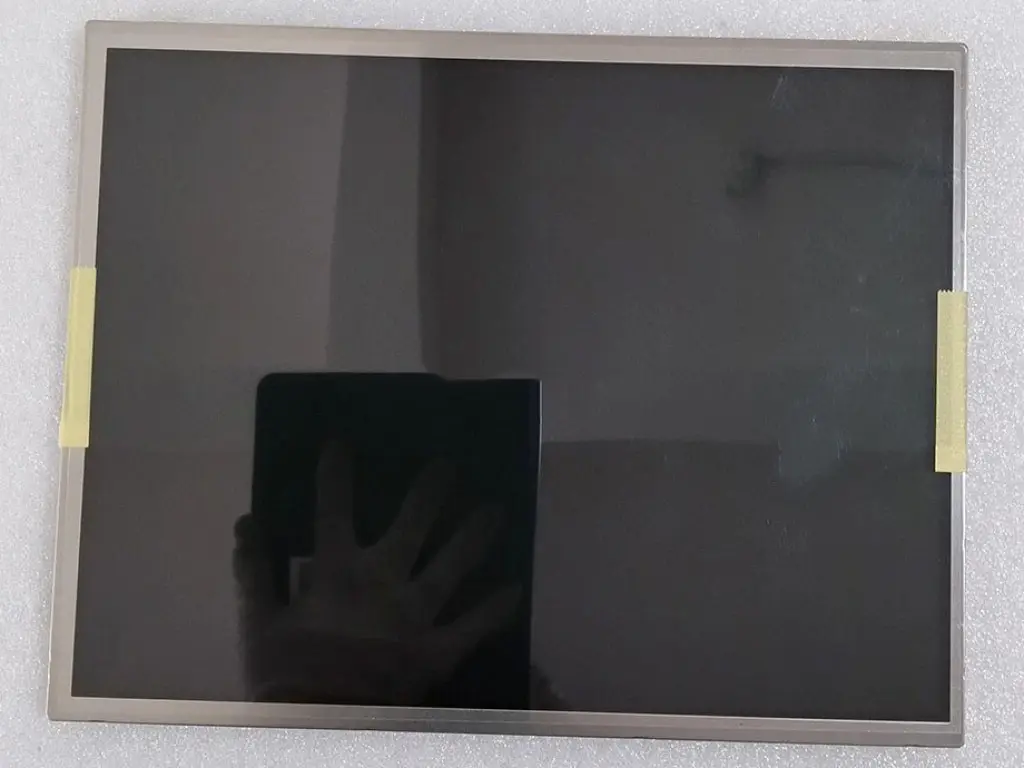

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module
NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module
Price: $315.00
$309.00/ piece
Add to cart
NL8060BC31-51C NEC
NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module
NL8060BC31-51C NEC
NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

Price: $315.00
$309.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

Product Information Product Specifications
Model:
NL8060BC31-51C
Brand:
NEC
Application:
Industrial
Size:
12.1"
Resolution:
800(RGB)×600, 4:3, SVGA
Brightness:
900 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Lamp Type:
5 strings WLED, 70K hrs, No Driver
Signal Interface:
LVDS (1 ch, 6/8-bit), 20 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
246×184.5 mm (H×V)
Outline:
260.5×203×9.2 mm (H×V×D
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-30 ~ 80 °C
Support Color:
262K/16.7M, 40% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
370
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

The NL8060BC31-51C features an SVGA resolution (800 × 600 pixels) with a 4:3 aspect ratio, providing a large and clear viewing area for complex graphical data. It utilizes an LVDS (1 ch, 6/8-bit), 20 pins Connector interface, supporting up to 16.7 million colors for smooth, accurate rendering. The module is designed with a brightness of 900 cd/m² and a contrast ratio of 1000:1, ensuring excellent legibility. It is equipped with a high-efficiency WLED backlight system and is built to withstand rigorous industrial conditions, supporting an operating temperature range of -30°C to +80°C.


NL8060BC31-51C NEC Product Highlights

  • Large 12.1-inch Industrial Canvas: Offers a spacious viewing area that is ideal for high-end control panels, medical diagnostic equipment, and sophisticated human-machine interfaces (HMI).

  • Enhanced SVGA Precision: The 800 x 600 resolution delivers crisp text and detailed graphics, ensuring that critical technical data is presented with high clarity and accuracy.

  • Flexible LVDS Interface: Supports both LVDS (1 ch, 6/8-bit), 20 pins Connector, allowing for high-speed data transmission with minimal EMI, which is vital for sensitive electronic environments.

  • Long-Life WLED Backlighting: Features an integrated White LED backlight system designed for longevity and low power consumption, reducing the need for maintenance in 24/7 operations.

  • Premium Original Quality: As a New Original NEC/NLT module, it guarantees full compatibility and a stable supply cycle for mission-critical applications in marine navigation, CNC machinery, and laboratory instrumentation.


  • NL8060BC31-51C NEC  lcd module Specifications:

ItemSpecification
ManufacturerNEC / NLT
Model NameNL8060BC31-51C
Screen Size12.1 inch
Resolution800(RGB) × 600 (SVGA)
Aspect Ratio4:3
Display ModeTN, Normally White, Transmissive
Luminance900 cd/m² (Typical)
Contrast Ratio1000:1 (Typical)
Display Colors262K/16.7M, 40% NTSC
Response Time6ms (Rise) / 19ms (Fall)
Viewing Angle80/80/80/80 (Typ.)(CR≥10)
Backlight TypeWLED
Interface TypeLVDS (1 ch, 6/8-bit), 20 pins Connector
Operating Temperature-30 to +80 °C


NL8060BC31-51C NEC Applications:

Human-machine interface (HMI) for heavy machinery

Medical diagnostic and patient monitoring systems

Digital instrument clusters for marine or transit

Industrial printing and textile equipment

Automated teller machines (ATM) and retail kiosks


FAQ:

Q1:How is the display quality of this 12.1-inch module? Is it suitable for high-precision medical equipment?

A1: The NL8060BC31-51C features 800×600 resolution and an excellent contrast ratio (typical 600:1). Its stable performance makes it highly suitable for industrial control and medical diagnostic terminals that require clear imagery.

Q2:Does it use LED or CCFL backlight? Can the backlight be replaced if it fails?

A2: This model uses a CCFL (dual-lamp) backlight. As a maintainable industrial module, the backlight assembly can typically be replaced separately if the lamps reach the end of their lifespan.

Q3:Do you check the screen for aging or yellowing issues before shipping?

A3:Yes. For every module we ship, we conduct strict white balance and full-color tests to ensure uniform backlight brightness, vivid colors, and no signs of aging or yellowing.


Related Product LinksNL6448BC20-35D NEC 6.5 inch lcd display screens

Click here to learn more about :NECdisplays




NL8060BC31-51C is a 12.1" a-Si TFT-LCD, LCM Display screen Product from NEC.According to NEC's product specification sheet,NL8060BC31-51C display has a resolution of 800(RGB)×600, 4:3, SVGA, Contrast Ratio is 1000:1 (Typ.) (TM),Viewing Angle is 80/80/80/80 (Typ.)(CR≥10),Lamp Type is 5 strings WLED, 70K hrs, No Driver,Signal Interface is LVDS (1 ch, 6/8-bit), 20 pins Connector,Brightness is 900 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL8060BC31-51C after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
