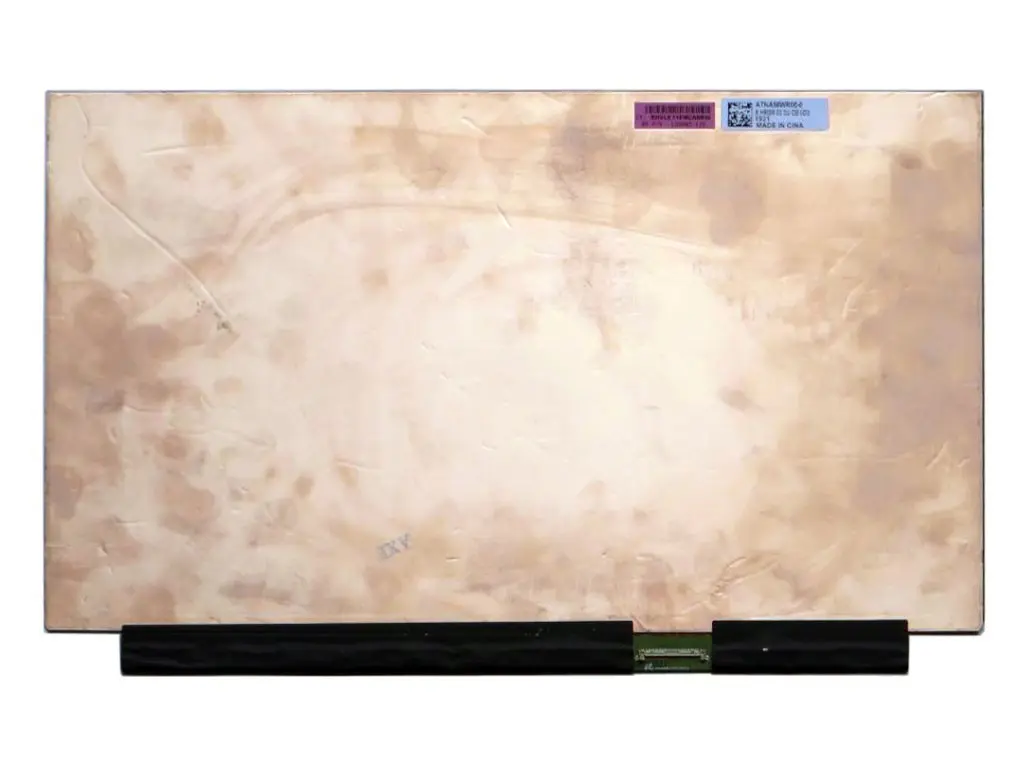

ATNA56WR06‑0 Samsung 15.6 Inch 4K UHD AM‑OLED eDP LCD Panel
ATNA56WR06‑0 Samsung 15.6 Inch 4K UHD AM‑OLED eDP LCD Panel
Price: $215.00
$208.00/ piece
Add to cart
ATNA56WR06‑0 Samsung 15.6 Inch 4K UHD AM‑OLED Panel
Original Samsung ATNA56WR06‑0 15.6'' Glossy 4K OLED Laptop Display Warehouse Stock
ATNA56WR06‑0 Samsung 15.6 Inch 4K UHD AM‑OLED Panel
Original Samsung ATNA56WR06‑0 15.6'' Glossy 4K OLED Laptop Display Warehouse Stock

ATNA56WR06‑0 Samsung 15.6 Inch 4K UHD AM‑OLED eDP LCD Panel

Price: $215.00
$208.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

ATNA56WR06‑0 Samsung 15.6 Inch 4K UHD AM‑OLED eDP LCD Panel

Product Information Product Specifications
Model:
atna56wr06-0
Brand:
SAMSUNG
Application:
Desktop Monitor
Size:
15.6"
Resolution:
3840(RGB)×2160, UHD, 16:9
Brightness:
440 cd/m² (Typ.)
Contrast Ratio:
100000:1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
self
Signal Interface:
eDP (4 Lanes), eDP1.4b, HBR2 (5.4G/lane), 40 pins Connector
Panel Type:
AM-OLED, OLED ( Full Module )
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
310
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

ATNA56WR06‑0 Original Samsung 15.6 Inch 3840×2160 4K UHD AM‑OLED eDP Display Panel

 1. Product Overview

ATNA56WR06‑0 is a high‑performance AM‑OLED display module manufactured by Samsung, belonging to ATNA56WR06 series. Adopts self‑emissive OLED technology without backlight, RGB vertical stripe pixel arrangement, eDP 1.4B 4‑lane HBR2 40‑pin connector, native 4K UHD 3840×2160 resolution, 60Hz refresh rate, glossy haze‑0 surface treatmentAlibaba.co....

Featuring 440 cd/m² typical brightness, ultra‑high 100000:1 contrast ratio, 100% DCI‑P3 wide color gamut, 1ms ultra‑fast response time and ultra‑thin 2.2mm thickness. Widely used for high‑end creative laptop replacement, notebook OEM assembly, portable OLED monitor and graphic design display equipmentAlibaba.co....

Zylcdshop keeps spot stock for ATNA56WR06‑0, supports sample evaluation and bulk wholesale, provides original datasheet, pin definition and technical matching support for global buyers.

 2. Full Technical Specifications

ItemParameter
Model NumberATNA56WR06‑0
BrandSamsung
Screen Size15.6 inch
Aspect Ratio16:9
Native Resolution3840 × 2160 (4K UHD),283PPI
Panel TypeAM‑OLED, Self‑Emissive
Brightness440 cd/m² (Typ.)
Contrast Ratio100000:1 (Typ.)
Color Gamut100% DCI‑P3, 1.06B Colors(8bit+FRC)
InterfaceeDP 1.4B,4‑lane HBR2,40 Pins Connector
Refresh Rate60Hz
Response Time1ms (Tr+Tf typical)
Viewing Angle85/85/85/85 (CR≥10)
SurfaceGlossy(Haze 0%)
Active Area344.218 × 193.622 mm
Outline Dimension348.218 × 215.572 × 2.2 mm
Supply Voltage3.3V
Operating Temperature-20℃ ~ +70℃
Storage Temperature-40℃ ~ +85℃
TouchNon‑touch version
ComplianceRoHS compliant

 3. Core Advantages of ATNA56WR06‑0

  1. Premium Samsung AM‑OLED Visual PerformanceSelf‑emissive OLED delivers pure black, ultra‑high contrast, 100% DCI‑P3 wide color gamut, ideal for photo editing, video production and creative design work.

  2. Ultra‑Fast 1ms Response TimeEliminate motion blur, bring smooth visual experience for video playback and content creation scenarios.

  3. Ultra‑Thin Light‑Weight DesignOnly 2.2mm thickness, perfectly fits slim high‑end notebooks and custom portable OLED monitor projects.

  4. Standard eDP1.4B 40‑Pin InterfaceMature eDP signal interface, convenient for compatibility verification for notebook repair and custom display development.

  5. Ready Stock & Flexible Order SupportSupport 1pc sample order for testing, competitive wholesale price for OEM mass orders, fast worldwide shipping, complete datasheet and pinout documents available.

 4. Main Application Scenarios

‑ High‑end 15.6‑inch 4K OLED laptop screen replacement & repair ‑ OEM/ODM creative designer notebook assembly ‑ Custom portable 4K OLED monitor ‑ Graphic design, video post‑processing display equipment ‑ High‑quality embedded display solution project

 5. Why Source ATNA56WR06‑0 From Zylcdshop

We are professional distributor for Samsung, LG, AUO, BOE, Innolux display panels.

  1. Spot inventory of ATNA56WR06‑0, ship within 24 hours after payment

  2. Strict pre‑shipment full‑function testing, 12‑month quality warranty (exclude man‑made damage, OLED burn‑in excluded)

  3. Supply original datasheet, pin assignment and pre‑sales compatibility consultation

  4. Accept small sample & large‑volume bulk orders

  5. Multiple global logistics options and flexible B2B payment terms

 6. FAQ

Q1: What is the difference between ATNA56WR06‑0 and other ATNA56WR06 suffix versions?A1: Belong to ATNA56WR06 family, same size and resolution; differences are batch version, surface and touch function. Please confirm exact suffix before purchase.

Q2: What interface does ATNA56WR06‑0 use?A2: It adopts eDP1.4B 4‑lane 40‑pin interface, cannot work with LVDS driver board directly.

Q3: Is ATNA56WR06‑0 touch screen?A3: Standard ATNA56WR06‑0 is non‑touch OLED panel. Touch version is other model suffix.

Q4: Any note for OLED panel usage?A4: OLED panels have burn‑in risk under long‑time static picture display, avoid long‑term fixed static content.

Q5: Can I order one piece for testing?A5: Yes, 1‑piece sample is available for evaluation; better unit price for bulk quantity.


If you are searching for original Samsung ATNA56WR06‑0 15.6‑inch 3840×2160 4K UHD AM‑OLED eDP display panel for laptop repair or custom display OEM projects, please contact us for latest wholesale price, datasheet and technical consultation. We also supply other Samsung ATNA series OLED modules.
