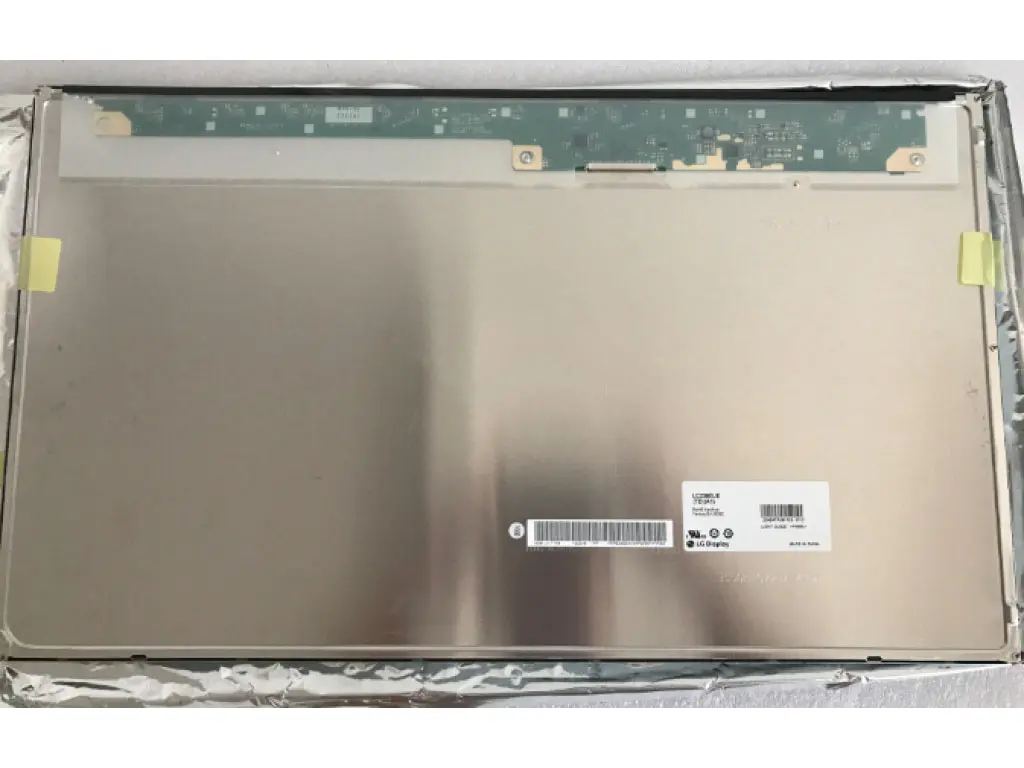

LC230EUE‑TDA1 LG 23 Inch FHD 1920×1080 IPS LCD Panel
LC230EUE‑TDA1 LG 23 Inch FHD 1920×1080 IPS LCD Panel
Price: $195.00
$190.00/ piece
Add to cart
LG LC230EUE-TDA1 23 inch IPS LCD panel front view
LG LC230EUE-TDA1 23 inch IPS LCD panel front view

LC230EUE‑TDA1 LG 23 Inch FHD 1920×1080 IPS LCD Panel

Price: $195.00
$190.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LC230EUE‑TDA1 LG 23 Inch FHD 1920×1080 IPS LCD Panel

Product Information Product Specifications
Model:
LC230EUE-TDA1
Brand:
LG
Application:
Industrial
Size:
23.0"
Resolution:
1920(RGB)×1080, FHD, 16:9
Brightness:
250 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
85/85/75/85 (Typ.)(CR≥10)
Lamp Type:
2 strings WLED, 30K hrs, Without Driver
Signal Interface:
LVDS (2 ch, 8-bit), 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
260
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
4.000 KG
Overview

Product Overview: LG LC230EUE-TDA1 23" FHD IPS LCD Panel

The LG LC230EUE-TDA1 is a premium 23.0-inch a-Si TFT-LCD panel manufactured by LG Display. Featuring a Full HD resolution of 1920(RGB)×1080 and advanced IPS (In-Plane Switching) technology, this module delivers exceptional color accuracy and ultra-wide viewing angles of 178°/178°.

Unlike standard TN panels, the LC230EUE-TDA1 is engineered for applications where image consistency from multiple viewing angles is critical. It is widely utilized in commercial office monitors, medical diagnostic displays, digital signage, and industrial control kiosks. With its W-LED backlight system and LVDS interface, it offers reliable performance for 24/7 continuous operation.

Detailed Specifications

ItemParameter
Model NumberLC230EUE‑TDA1
BrandLG Display
Screen Size23 inch
Aspect Ratio16:9
Native Resolution1920 × 1080 (FHD)
Panel Typea‑Si TFT‑LCD, IPS Normally Black
Brightness250 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.)
BacklightWLED, 30000 hours lifetime
InterfaceLVDS, 30 Pins Connector
Refresh Rate60Hz
Response Time14ms G‑to‑G (Typ.)
Viewing Angle89/89/89/89 (CR≥10)
SurfaceGlossy, 3H Hard Coating
Active Area509.76 × 286.74 mm
Outline Dimension524.4 × 304.7 ×11.2 mm
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
ComplianceRoHS compliant
Other nameLC230EUE,LC230EUE-SLA1

Compatible Replacements & Cross Reference (LC230EUE Series)

If you are repairing an existing display or sourcing alternatives for a project, the LG LC230EUE family shares identical mechanical outline dimensions. However, interfaces and brightness may vary slightly between suffixes:

  • Direct LG Alternatives:

    • LC230EUE-SLA1 / SLA2: Common variants used in various LG and third-party commercial monitors. Usually share the same 30-pin LVDS layout.

    • LC230EUE-SPA1: Another FHD IPS variant; always verify the T-CON board compatibility before swapping.

    • LC230EUE-SDA1: Check if the backlight voltage matches your specific driver board.

  • Cross-Brand Equivalents (23" FHD IPS):

    • BOE HV230FHB-N10 / MV230FHB-N20: Excellent 23-inch 1080p ADS/IPS alternatives from BOE. Ensure the mounting brackets match your chassis.

    • Innolux M230HGE-L20 / M230HJJ-P01: 23" FHD panels that can serve as replacements if the LVDS pinout (30-pin) aligns with your mainboard.

    • AUO M230HAN01.x: AUO's 23-inch AHVA (IPS-equivalent) series.

Engineering Note: The suffix "-TDA1" indicates specific revisions regarding backlight driving or connector placement. Always compare the physical back-cover screw holes and the LVDS connector position of your original broken screen with our product images before purchasing.

Common Applications & Compatible Monitor Models

Due to its superior IPS color reproduction and wide viewing angles, the LC230EUE-TDA1 (and its sibling models) is frequently found as the OEM panel in:

  • Commercial Monitors: LG 23-inch business series (e.g., LG 23EA series, 23MP series), Dell Professional P-series 23" monitors.

  • Medical Displays: Entry-level radiology review monitors and dental imaging screens requiring accurate grayscale/color reproduction.

  • Digital Signage & Kiosks: Indoor advertising displays, interactive wayfinding kiosks, and retail POS screens where off-axis viewing is common.

Why Source Your LC230EUE-TDA1 from ZY LCD?

  • Grade A Quality: We supply 100% original, factory-sealed LG Display panels with zero dead pixels.

  • Safe Industrial Packaging: Shipped in anti-static bags with custom shock-proof foam to protect the delicate IPS glass during global transit.

  • Technical Support: Need help verifying if this panel fits your monitor? Contact our engineering team with your monitor's model number.

Core Advantages of LC230EUE‑TDA1

  1. IPS Wide‑View PerformanceExcellent 89° ultra‑wide viewing angle from all directions, minimal color deviation for multi‑person viewing scenarios.

  2. Original LG Grade A+ QualityGenuine LG display panel with stable optical performance, suitable for mass‑production OEM and aftermarket repair work.

  3. Standard 30‑Pin LVDS InterfaceMature LVDS signal interface, easy to match with existing driver boards for monitor refurbishment.

  4. Ready Stock & Flexible Order QuantitySupport 1pc sample order for testing, competitive wholesale price for large‑batch orders, fast global shipping.

  5. Complete Technical Document SupportOffer datasheet and pinout diagram, our team provides pre‑sales compatibility checking service.

 Main Application Scenarios

‑ OEM / Refurbishment of 23‑inch FHD desktop monitor ‑ Office desktop display replacement spare parts ‑ Embedded industrial control display terminal ‑ Commercial simple digital signage display ‑ Custom display equipment project

 Why Source LC230EUE‑TDA1 From Zylcdshop

We are professional distributor for LG, AUO, BOE, Innolux LCD panels.

  1. Spot inventory of LC230EUE‑TDA1, ship within 24 hours after payment

  2. Strict pre‑shipment full‑function testing, 12‑month quality warranty (exclude man‑made damage)

  3. Supply original datasheet, pin assignment and pre‑sales compatibility consultation

  4. Accept small sample & large‑volume bulk orders

  5. Multiple global logistics options and flexible B2B payment terms

  FAQ

Q1: What is the difference between LC230EUE‑TDA1 and other suffix variants?A1: Panels in LC230EUE family share same size and resolution; suffix differences are mainly for production batches, surface and tuning parameters. Please confirm exact part number before purchase.

Q2: What interface does LC230EUE‑TDA1 adopt?A2: It uses 30‑pin LVDS interface, need corresponding LVDS driver board, cannot directly use eDP mainboard.

Q3: Is LC230EUE‑TDA1 touch screen?A3: Standard version is non‑touch; we can add touch overlay upon custom request.

Q4: Can I buy one piece for testing?A4: Yes, sample order is available; better unit price for bulk quantity.

If you are searching for original LG LC230EUE‑TDA1 23‑inch 1920×1080 FHD IPS LVDS LCD panel for monitor OEM or replacement projects, please contact us for latest wholesale price, datasheet and technical consultation. We also supply other LG LC230EUE series display modules.
