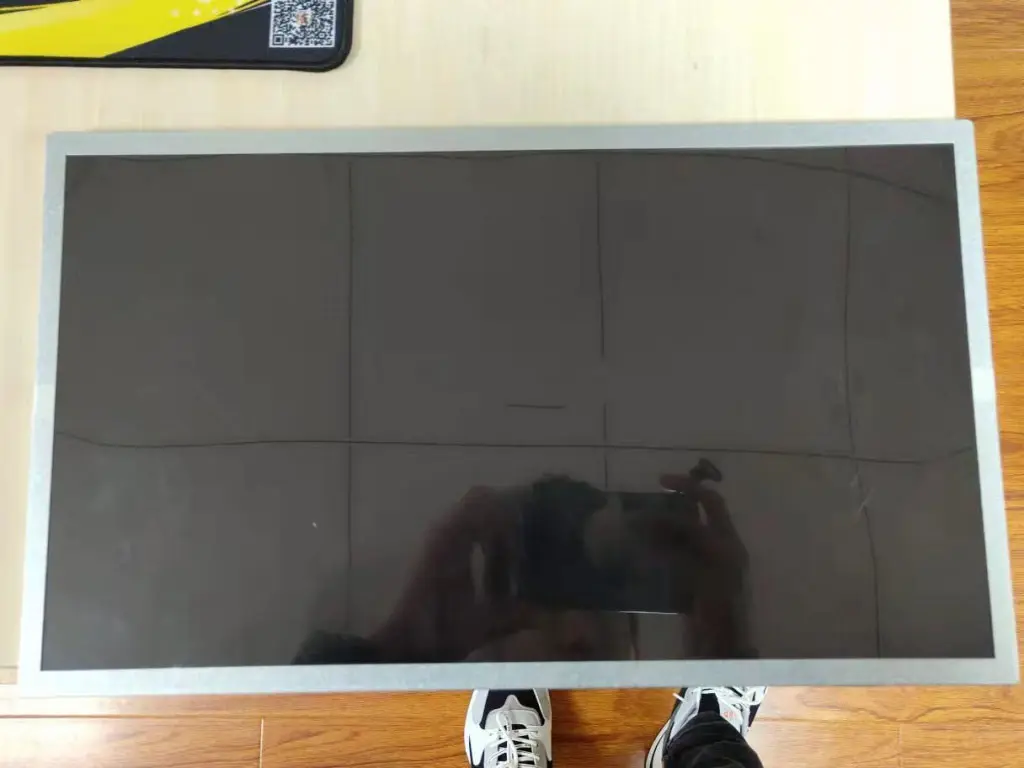

Innolux M185BGE‑P02 18.5 Inch Open‑Cell Screen Replacement For Monitor
Innolux M185BGE‑P02 18.5 Inch Open‑Cell Screen Replacement For Monitor
Price: $210.00
$200.00/ piece
Add to cart
Innolux M185BGE‑P02 18.5 inch 1366×768 WXGA TN open‑cell bare glass single‑channel LVDS 30pin for monitor and AIO PC replacement
Innolux M185BGE‑P02 18.5 inch 1366×768 WXGA TN open‑cell bare glass single‑channel LVDS 30pin for monitor and AIO PC replacement

Innolux M185BGE‑P02 18.5 Inch Open‑Cell Screen Replacement For Monitor

Price: $210.00
$200.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Innolux M185BGE‑P02 18.5 Inch Open‑Cell Screen Replacement For Monitor

Product Information Product Specifications
Model:
M185BGE‑P02
Brand:
INNOLUX
Application:
Industrial
Size:
18.5"
Resolution:
1366×768
Contrast Ratio:
1000:1
Viewing Angle:
85/85/80/80
Lamp Type:
No B/L
Signal Interface:
LVDS
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
300
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview
M185BGE‑P02 Innolux (CMO) 18.5 Inch 1366(RGB)×768 WXGA TN a‑Si TFT‑LCD Open‑Cell Panel Single‑Channel LVDS 30Pin

 1. Product Overview

The M185BGE‑P02 is original Innolux (Chimei‑CMO) 18.5‑inch a‑Si TN TFT‑LCD open‑cell bare glass panel with native 1366(RGB)×768 WXGA resolution, 85 PPI pixel density。Important note: This is bare open‑cell glass, WITHOUT integrated backlight assembly; separate WLED backlight assembly is required for full display function.Adopting TN Normally‑White transmissive mode, matte anti‑glare 3H hard‑coated polarizer(Haze25%), single‑channel 8‑bit LVDS 30‑pin interface. Cost‑effective bare‑cell solution for broken monitor/AIO screen replacement, monitor SKD assembly and light‑duty embedded display projects。Zylcdshop supplies Grade A original M185BGE‑P02 open‑cell panels. Every unit passes pixel defect inspection before shipment. We support sample trial and bulk factory orders, worldwide shipping, and provide datasheet, pin‑out definition for engineering development。

 2. Full Technical Specification Table

CategoryDetailed Parameter
Full ModelM185BGE‑P02
ManufacturerInnolux (Chimei‑CMO)
Diagonal Size18.5 Inch, Landscape 16:9
Native Resolution1366(W) × 768(H) WXGA, 85 PPI
Display Technologya‑Si TFT‑TN, Normally White, Transmissive Open‑Cell
Pixel ArrangementRGB Vertical Stripe
Typical BrightnessDepend on external backlight
Static Contrast Ratio1000:1 Typical
Viewing Angle (CR≥10)Left/Right/Up/Down: 85° / 85° / 50° / 60°
Color Performance8‑bit, 16.7M Colors
G‑to‑G Response Time5ms Typical
Refresh Rate60Hz Native
Surface TreatmentAnti‑Glare Matte Haze25, 3H Hard Scratch Coating
Backlight ConfigurationOpen‑Cell Bare Glass ONLY, NO built‑in WLED backlight unit
Signal InterfaceSingle‑Channel 8‑bit LVDS, 30‑Pin FPC Connector
Logic Supply VoltageDC 5.0V Typical
Active Area409.8(W) × 230.4(H) mm
Outline Dimension424.5(W) × 247.0(H) ×1.4(D) mm
Net Weight0.53 Kg Typical
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
Humidity Range10%‑90% RH Non‑Condensing
Touch FunctionBare Open‑Cell, No Built‑in Touch (Support optical bonding service)
Compliance StandardRoHS
Stock StatusIn Stock, Lead Time 1‑3 Working Days
Warranty Policy6 Months RMA Support

 3. Compatibility & Replacement Note

M185BGE‑P02 is open‑cell bare glass. It needs matching external WLED backlight assembly and single‑channel 8‑bit LVDS driver board for normal operation. Dual‑channel LVDS board can work under single‑channel output setting.Mechanically compatible with M185B1‑L01 series modules; please verify signal timing, pin definition and backlight parameters before replacement.We provide optional capacitive touch optical bonding service for custom industrial touch‑display projects. Datasheet and pin‑out diagram available upon request.

 4. Core Product Advantages

  1. Innolux TN technology, 1000:1 high contrast ratio, fast 5ms response time, stable performance for office monitor applications

  2. Matte AG Haze25 anti‑glare 3H polarizer, reduce ambient light reflection for office environment

  3. Single‑channel 8‑bit LVDS interface, mature mainstream solution, simple peripheral circuit design

  4. Ultra‑thin bare‑cell glass structure, lightweight for 18.5‑inch monitor SKD mechanical design

  5. Cost‑effective bare‑cell for screen repair and new monitor assembly

  6. Grade A original bare glass, strict dead‑pixel, bright‑spot and mura inspection before packing

  7. Sufficient spot inventory, support small sample trial and large‑volume factory wholesale with competitive price

  8. RoHS compliant, meet global consumer‑electronic environmental requirements

  9. Supply datasheet, pin assignment and driving reference for engineering development

 5. Typical Application Scenarios

  • Broken 18.5‑inch desktop monitor & all‑in‑one PC screen replacement & repair

  • 18.5‑inch monitor SKD assembly spare open‑cell glass

  • Light‑duty embedded control terminal display

  • Small indoor secondary advertising display

  • Compatible replacement for Innolux M185BGE series 18.5‑inch open‑cell panels

 6. Frequently Asked Questions

Q1: Does M185BGE‑P02 include WLED backlight?

A1: No, this is open‑cell bare glass without backlight. Matching external WLED backlight assembly must be equipped for normal display.

Q2: What driver board does this open‑cell require?

A2: It requires single‑channel 8‑bit LVDS driver board. Dual‑channel LVDS controller can work by enabling single‑channel output mode.

Q3: Can M185BGE‑P02 be modified into touch screen?

A3: Raw open‑cell has no touch sensor. We offer optional capacitive touch glass optical bonding service for custom touch‑display projects.

Q4: What is operating temperature range?

A4: Operating temperature 0℃ ~ +50℃, suitable for indoor office and light‑industrial environment, avoid long‑term direct sunlight exposure.

Q5: Can I order sample unit?

A5: Yes, sample and bulk orders are acceptable. Contact us for quotation and request datasheet & pin‑out documents.
