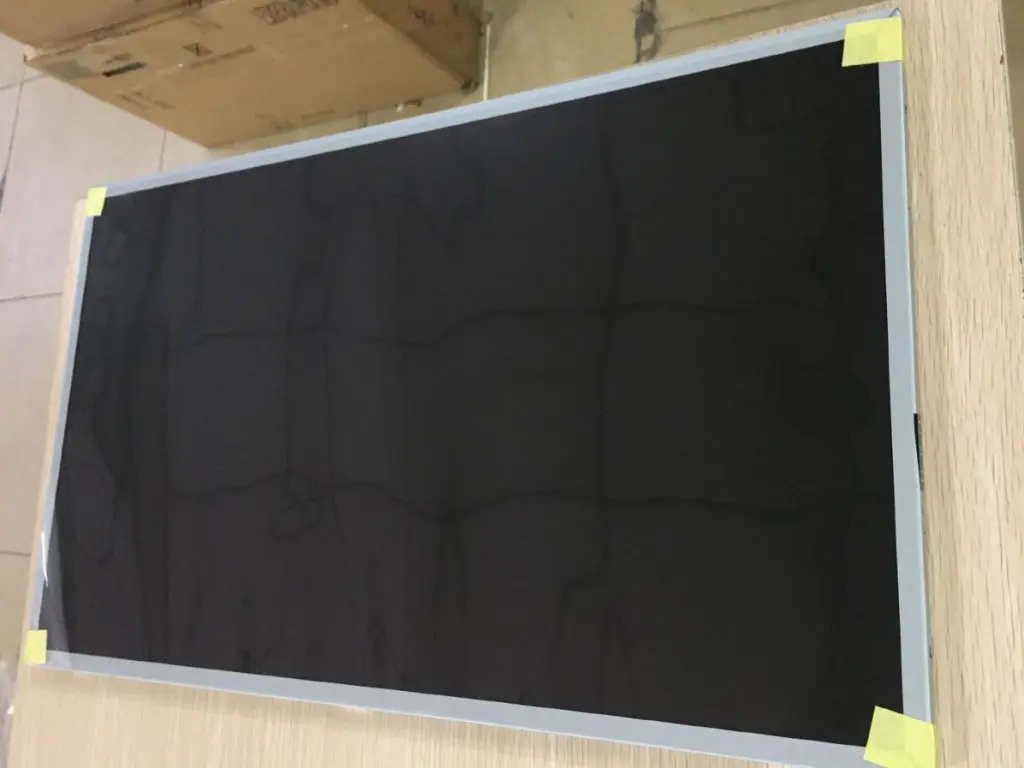

LC230EUE‑TDA1 LG 23" FHD IPS LCD Module 1920×1080 Dual LVDS 30Pin
LC230EUE‑TDA1 LG 23" FHD IPS LCD Module 1920×1080 Dual LVDS 30Pin
Price: $195.00
$190.00/ piece
Add to cart
LG LC230EUE‑TDA1 23 inch 1920×1080 FHD IPS TFT‑LCD module dual LVDS 30pin anti‑glare 3H for monitor & all‑in‑one PC replacement
LG LC230EUE‑TDA1 23 inch 1920×1080 FHD IPS TFT‑LCD module dual LVDS 30pin anti‑glare 3H for monitor & all‑in‑one PC replacement

LC230EUE‑TDA1 LG 23" FHD IPS LCD Module 1920×1080 Dual LVDS 30Pin

Price: $195.00
$190.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LC230EUE‑TDA1 LG 23" FHD IPS LCD Module 1920×1080 Dual LVDS 30Pin

Product Information Product Specifications
Model:
LC230EUE‑TDA1
Brand:
LG
Application:
Industrial
Size:
23.0"
Resolution:
1920×1080
Brightness:
250 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
85/85/75/85 (Typ.)(CR≥10)
Lamp Type:
2 strings WLED, 30K hrs, Without Driver
Signal Interface:
LVDS (2 ch, 8-bit), 30 pins Connector
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
250
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview
LC230EUE‑TDA1 LG Display 23 Inch 1920(RGB)×1080 FHD IPS a‑Si TFT‑LCD LCM Module Dual‑Channel LVDS 30Pin

 1. Product Overview

The LC230EUE‑TDA1 is original LG Display 23‑inch a‑Si IPS TFT‑LCD complete LCM module with native 1920(RGB)×1080 FHD resolution, 96 PPI pixel density.Adopting symmetrical four‑direction IPS wide‑view technology, matte anti‑glare 3H hard‑coated polarizer, dual‑channel 8‑bit LVDS 30‑pin interface and integrated edge‑type WLED backlight unit (no onboard constant‑current driver IC). Widely applied for desktop monitor screen replacement, all‑in‑one PC assembly, office display and light commercial digital signage equipment.Zylcdshop supplies Grade A original LC230EUE‑TDA1 modules. Every unit passes pixel defect, brightness and aging inspection before shipment. We support sample trial and bulk factory orders, worldwide shipping, and provide datasheet, pin‑out definition for engineering reference.

 2. Full Technical Specification Table


CategoryDetailed Parameter
Full ModelLC230EUE‑TDA1
ManufacturerLG Display
Diagonal Size23 Inch, Landscape 16:9
Native Resolution1920(W) × 1080(H) FHD, 96 PPI
Display Technologya‑Si TFT‑IPS, Transmissive Normally Black
Pixel ArrangementRGB Vertical Stripe
Typical Brightness250 cd/m²
Static Contrast Ratio1000:1 Typical
Viewing Angle (CR≥10)Left/Right/Up/Down: 89° / 89° / 89° / 89° Symmetrical
Color Performance8‑bit, 16.7M Colors, 72% NTSC
G‑to‑G Response Time14ms Typical
Refresh Rate60Hz Native
Surface TreatmentAnti‑Glare Matte, 3H Hard Scratch Coating
Backlight ConfigurationEdge WLED, Complete LCM, No onboard constant‑current driver IC
Signal InterfaceDual‑Channel 8‑bit LVDS, 30‑Pin FPC Connector
Logic Supply VoltageDC 5.0V Typical
Active Area509.76(W) × 286.74(H) mm
Outline Dimension526.0(W) × 307.4(H) × 12.2(D) mm
Net Weight2.15 Kg Typical
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
Humidity Range10%‑90% RH Non‑Condensing
Touch FunctionBare LCD Module, No Built‑in Touch (Support optical bonding service)
Compliance StandardRoHS
Stock StatusIn Stock, Lead Time 1‑3 Working Days
Warranty Policy6 Months RMA Support

 3. Compatibility & Replacement Note

LC230EUE‑TDA1 requires dual‑channel 8‑bit LVDS driver board, single‑channel LVDS cannot output full FHD picture normally. External WLED constant‑current driver board must be equipped for brightness adjustment.When cross‑replacing similar LG 23‑inch series panels, verify signal timing, pin‑definition and backlight parameters before installation.We provide optional capacitive touch optical bonding service for custom commercial touch display projects. Datasheet and pin‑out diagram available upon request.

 4. Core Product Advantages

  1. LG IPS symmetrical 89° four‑direction wide viewing angle, minimal color shift for multi‑person viewing scenarios

  2. 1000:1 high static contrast ratio, sharp text and image performance for office document, graphic and surveillance content

  3. Matte AG anti‑glare 3H polarizer, effectively reduce indoor ambient light reflection, relieve visual fatigue for long‑time working

  4. Dual‑channel 8‑bit LVDS transmission, stable full‑HD image output without screen segmentation

  5. Solid metal backplate structure, good mechanical compatibility for mainstream 23‑inch monitor and AIO chassis

  6. Mercury‑free edge WLED backlight, low power consumption and long service life

  7. Grade A original module, strict dead‑pixel, bright‑spot and mura inspection before packing

  8. Sufficient spot inventory, support small sample trial and large‑volume factory wholesale with competitive price

  9. RoHS compliant, meet global consumer‑electronic environmental requirements

  10. Supply datasheet, pin assignment and driving reference for engineering development

 5. Typical Application Scenarios

  • Broken 23‑inch desktop monitor screen replacement & repair

  • All‑in‑one PC integrated display assembly and spare parts

  • Light commercial wall‑mount secondary digital signage

  • Office conference auxiliary display screen

  • Compatible replacement for LG LC230EUE series 23‑inch IPS LCD modules

6. Frequently Asked Questions

Q1: Does LC230EUE‑TDA1 need separate WLED driver board?

A1: Yes. This LCM has no onboard backlight constant‑current IC. External WLED driver board is required for brightness adjustment.

Q2: Can single‑channel LVDS controller drive this LG panel?

A2: Not supported. It adopts dual‑channel LVDS architecture, only dual‑8bit LVDS driver board can output complete 1920×1080 picture.

Q3: Can LC230EUE‑TDA1 be upgraded to touch screen?

A3: Original module without touch sensor. We offer optional capacitive touch glass optical bonding service for custom touch display projects.

Q4: What working environment fits this LCD module?

A4: Operating temperature 0℃ ~ +50℃, designed for indoor office and light‑commercial scenarios, avoid long‑term direct ultraviolet sunlight exposure.

Q5: Can I order sample unit?

A5: Yes, sample and bulk orders are acceptable. Contact us for quotation and request datasheet & pin‑out documents.

Related Products:LG Display LCD Panels23 Inch FHD Monitor Panels

LC230EUE‑TDA1 is a 23.0" Display screen Product from LG.According to LG's product specification sheet,LC230EUE‑TDA1 display has a resolution of 1920×1080, Contrast Ratio is 1000:1 (Typ.) (TM),Viewing Angle is 85/85/75/85 (Typ.)(CR≥10),Lamp Type is 2 strings WLED, 30K hrs, Without Driver,Signal Interface is LVDS (2 ch, 8-bit), 30 pins Connector,Brightness is 250 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LC230EUE‑TDA1 after packaging is 3.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
