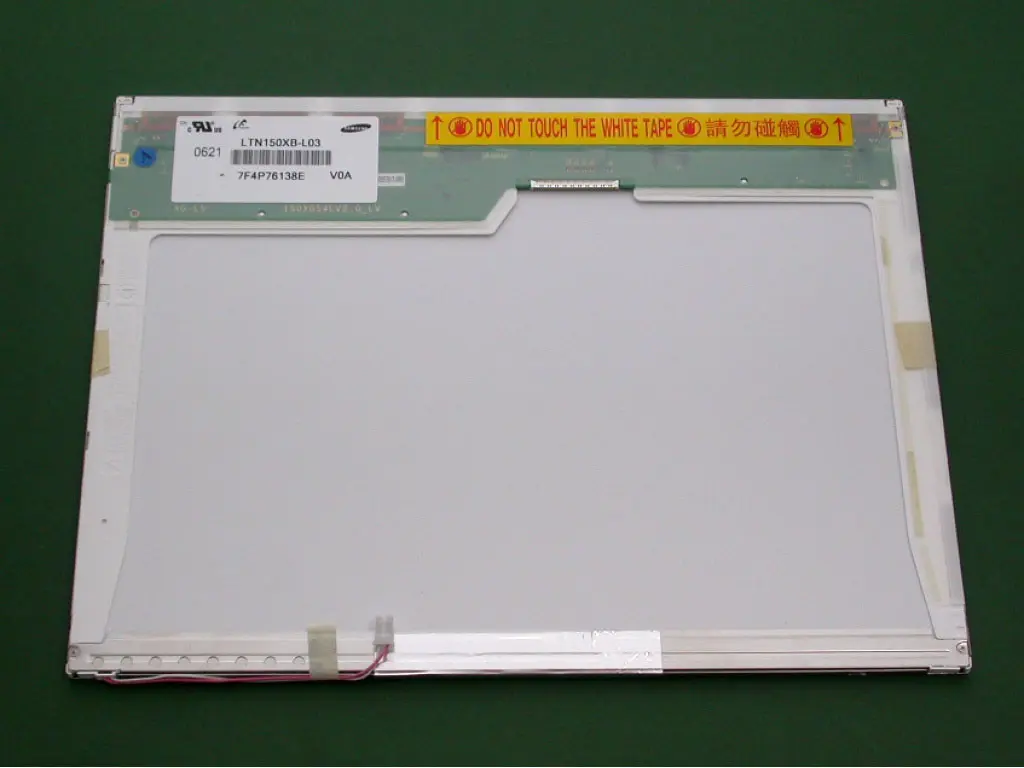

Name: LTN150XB-L03 Samsung 15 inch 1024*768 tft lcd module
Brand: SAMSUNG
Price: 119.0 USD

LTN150XB-L03 Samsung 15 inch 1024*768 tft lcd module

Price: $125.00

$119.00/ piece

Delivery:

Payment:

Calculate shipping price

LTN150XB-L03 Samsung 15 inch 1024*768 tft lcd module

Data sheets：

LTN150XB-L03 Samsung 15 inch 1024*768 tft lcd module.pdf

Product Information Product Specifications

Model:

LTN150XB-L03

Brand:

SAMSUNG

Application:

Industrial

Size:

15"

Resolution:

1024(RGB)×768, XGA, 4:3

Brightness:

160 cd/m² (Typ.)

Contrast Ratio:

200:1 (Min.) (TM)

Viewing Angle:

45/45/25/45 (Typ.)(CR≥10)

Lamp Type:

1 pcs CCFL, 10K hrs, Without Driver

Signal Interface:

LVDS (1 ch, 6-bit), 30 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Frame Rate:

60Hz

Active Area:

304.128(H)×228.096(V) mm

Outline:

317.3(H)×242(V)×6.5(D) mm

Storage Temp:

-20 ~ 60 °C

Operating Temp:

0 ~ 50 °C

Support Color:

262K, 42% NTSC

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

380

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

2.500 KG

Overview

LTN150XB-L03 is a classic 15.0-inch a-Si TFT-LCD liquid crystal module developed and manufactured by Samsung Electronics Co., Ltd., a global leader in semiconductor and display technology. Based on the official datasheet Rev.A00 (issued on June 1, 2005, 30 pages), this panel features a 4:3 standard aspect ratio, 85 PPI pixel density, and 42% NTSC color gamut, delivering stable visual performance for industrial and legacy applications.

It adopts TN (Twisted Nematic) technology with normally white transmissive mode, providing 45°/45°/25°/45° viewing angles (CR≥10). The panel uses a single CCFL backlight system without integrated driver, offering a typical brightness of 160 cd/m² and a lifespan of 10,000 hours. With a matte anti-glare surface (25% haze) + 3H hard coating and a compact design of only 6.5 mm maximum thickness, it is widely used as a replacement panel for older industrial equipment and notebook computers.

LTN150XB-L03 Samsung tft lcd module Highlights:

Classic 4:3 Aspect Ratio: Perfect match for legacy industrial equipment and older notebook computers

Samsung Original Quality: Reliable performance and consistent quality from Samsung's manufacturing process

Matte Anti-Glare Surface: Reduces reflections and eye strain, suitable for long-term industrial use

Low Power Consumption: 3.3V low voltage supply, energy-efficient for embedded systems

Standard LVDS Interface: Widely compatible with most older control boards and systems

Available Replacement Stock: Limited but stable stock for urgent replacement needs

Proven Reliability: Over 20 years of field use history in various industrial applications

LTN150XB-L03 Samsung tft lcd module Specifications:

Parameter	Specification
Panel Brand	Samsung Electronics
Panel Model	LTN150XB-L03
Alternative Names	SEC0000, LTNL50XB-L03, 1TN150XB-103, LTN15OXB-LO3
Panel Size	15.0 inches (diagonal)
Panel Type	a-Si TFT-LCD, Liquid Crystal Module (LCM)
Technology	TN (Twisted Nematic), Normally White, Transmissive
Resolution	1024(RGB) × 768 (XGA)
Pixel Density	85 PPI
Pixel Pitch	0.297 × 0.297 mm (H×V)
Pixel Format	RGB Vertical Stripe
Aspect Ratio	4:3 (W:H)
Active Area	304.128 (W) × 228.096 (H) mm
Bezel Opening	307.55 (W) × 231.4 (H) mm
Outline Dimensions	317.3 (W) × 242.0 (H) × 6.5 (D) mm (Max)
Surface Treatment	Matte (Haze 25%), Hard coating (3H)
Brightness	160 cd/m² (Typical)
Contrast Ratio	200:1 (Minimum, Transmissive)
Viewing Angle	45°(L)/45°(R)/25°(U)/45°(D) (Typical, CR≥10)
Optimum Viewing Direction	6 O'clock
Display Colors	262K (6-bit)
Color Gamut	42% NTSC
Response Time	10/30 ms (Typical, Tr/Td)
Refresh Rate	60 Hz
Backlight Type	Single CCFL Tube, Without Driver
Backlight Lifespan	10,000 hours (Typical)
Interface	LVDS (1 Channel, 6-bit), 30 Pins Terminal
Supply Voltage	3.3V (Typical)
Operating Temperature	0 ~ 50 °C
Storage Temperature	-20 ~ 60 °C
Weight	3.5 kg (Packaged)
Touch Screen	Not Integrated
Production Status	Discontinued
Stock Quantity	217+ pieces (as of May 2026)

LTN150XB-L03 Samsung tft lcd module Applications:

Legacy Notebook Computers

Industrial Control Panels

HMI (Human-Machine Interface) Displays

Medical Equipment Replacement Screens

Injection Molding Machine Displays

CNC Machine Tool Monitors

POS (Point of Sale) Terminals

ATM Displays

Test and Measurement Equipment

Security Monitoring Systems

FAQ:

Q1: Is LTN150XB-L03 still in production?A1: No, Samsung discontinued the production of LTN150XB-L03 several years ago. However, we maintain a limited stock of original new panels for replacement purposes.

Q2: What is the difference between TN and IPS technology?A2: TN (Twisted Nematic) panels have faster response times but narrower viewing angles and lower color accuracy compared to IPS panels. They are more cost-effective and widely used in older industrial and consumer applications.

Q3: Is LTN150XB-L03 compatible with my system?A3: LTN150XB-L03 uses a 30-pin LVDS interface (1 channel, 6-bit). Please check your system's original panel model and interface type before purchasing. It is compatible with systems that originally used LTN150XB-L03 or its alternative names.

Q4: Does this panel come with a backlight inverter?A4: No, the standard LTN150XB-L03 does not include a backlight inverter. You will need to use your existing inverter or purchase a compatible CCFL inverter separately. We can provide compatible inverter solutions upon request.

Q5: What is the warranty period for this product?A5: All our LTN150XB-L03 panels come with a 6-month warranty against manufacturing defects. All panels are fully tested before shipment to ensure proper functionality.
