LSC400HN02‑G02 Samsung 40 Inch FHD SVA‑TFT‑LCD Open‑Cell TV Panel
LSC400HN02‑G02 Samsung 40 Inch FHD SVA‑TFT‑LCD Open‑Cell TV Panel
Price: $155.00
$150.00/ piece
Add to cart

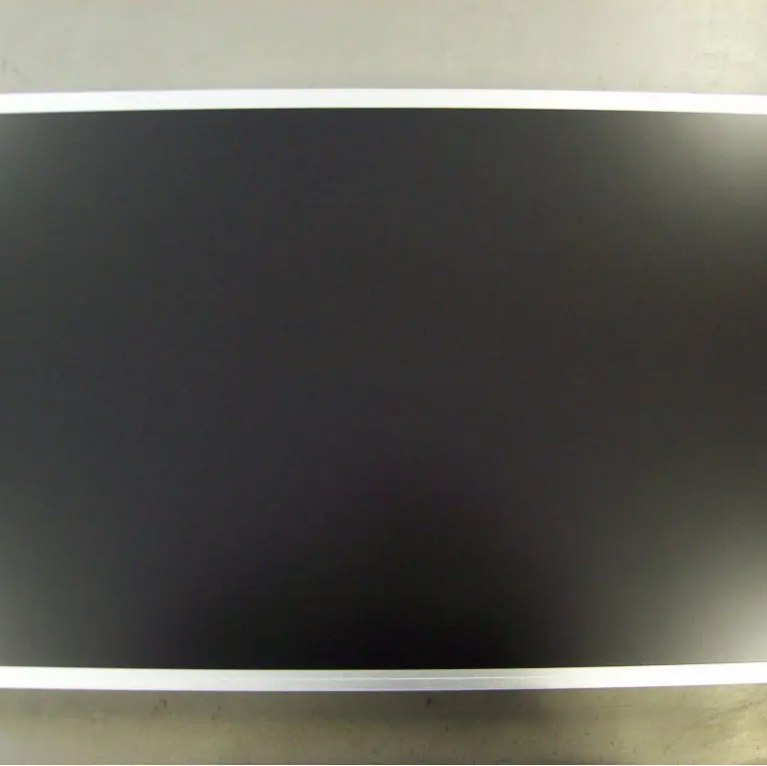

Samsung LSC400HN02‑G02 40 inch 1920×1080 FHD SVA‑TFT‑LCD open‑cell glass V‑by‑One 51Pin TV replacement panel
Samsung LSC400HN02‑G02 40 inch 1920×1080 FHD SVA‑TFT‑LCD open‑cell glass V‑by‑One 51Pin TV replacement panel

LSC400HN02‑G02 Samsung 40 Inch FHD SVA‑TFT‑LCD Open‑Cell TV Panel

Price: $155.00
$150.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LSC400HN02‑G02 Samsung 40 Inch FHD SVA‑TFT‑LCD Open‑Cell TV Panel

Product Information Product Specifications
Model:
LSC400HN02‑G02
Brand:
SAMSUNG
Application:
Industrial
Size:
40"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
300
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
5.500 KG
Overview
LSC400HN02‑G02 Samsung 40 Inch 1920(RGB)×1080 FHD SVA‑TFT‑LCD Open‑Cell Panel V‑by‑One 8‑Lane 51Pin

 1. Product Overview

The LSC400HN02‑G02 is original Samsung 40‑inch a‑Si SVA‑TFT‑LCD open‑cell bare glass panel with native 1920(RGB)×1080 FHD resolution, 55 PPI pixel densityAlibaba.co...Important note: This is bare open‑cell glass, WITHOUT integrated backlight assembly; separate LED backlight strips are required for full display function.Adopting Samsung SVA vertical‑alignment technology, anti‑glare matte 3H hard‑coated surface, ultra‑high 4000:1 static contrast ratio, it is widely used for broken TV screen replacement, TV SKD assembly and indoor commercial digital signage projects.Zylcdshop supplies Grade A original LSC400HN02‑G02 open‑cell panels. Every unit passes pixel inspection before shipment. We support sample trial and bulk factory orders, worldwide shipping, and provide datasheet, pin‑out definition for engineering development

2. Full Technical Specification Table

CategoryDetailed Parameter
Full ModelLSC400HN02‑G02
ManufacturerSamsung
Diagonal Size40 Inch, Landscape 16:9
Native Resolution1920(W) × 1080(H) FHD, 55 PPI
Display Technologya‑Si TFT‑SVA, Normally Black, Transmissive Open‑Cell
Pixel ArrangementRGB Horizontal Stripe
Typical Brightness300 cd/m² Typical
Static Contrast Ratio4000:1 Typical
Viewing Angle (CR≥10)Left/Right/Up/Down: 89° / 89° / 89° / 89°
Color Performance8‑bit + Hi‑FRC, 1.07B Colors, 68% NTSC
G‑to‑G Response Time8ms Typical
Refresh Rate60Hz Native
Surface TreatmentAnti‑Glare Matte, 3H Hard Scratch Coating
Backlight ConfigurationOpen‑Cell Glass Only, NO built‑in LED backlight strips
Signal InterfaceV‑by‑One 8‑Lane, 51‑Pin FPC Connector
Logic Supply VoltageDC 12.0V Typical
Active Area885.6(W) × 498.15(H) mm
Outline Dimension899.6(W) × 513.95(H) ×1.4(D) mm
Net Weight1.50 Kg Typical
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +65℃
Humidity Range10%‑90% RH Non‑Condensing
Touch FunctionBare LCD Open‑Cell, No Built‑in Touch (Support optical bonding service)
Compliance StandardRoHS
Stock StatusIn Stock, Lead Time 1‑3 Working Days
Warranty Policy6 Months RMA Support

3. Compatibility & Replacement Note

LSC400HN02‑G02 is TV‑grade open‑cell glass. It needs matching LED backlight strips and V‑by‑One 8‑lane TV driver board to work normally. LVDS driver board cannot drive this panel.It belongs to Samsung LSC400HN02 series open‑cell family; please verify pin definition, signal timing and backlight parameters before replacement.We provide optional optical bonding service if you need to add capacitive touch layer for custom display projects. Datasheet and pin‑out diagram available upon request.

 4. Core Product Advantages

  1. Samsung SVA vertical‑alignment technology, ultra‑high 4000:1 contrast ratio, excellent deep black performance for TV video playback

  2. Symmetrical 89° four‑direction viewing angle, small color deviation for multi‑angle home watching

  3. Matte anti‑glare 3H hard‑coated polarizer, reduce ambient light reflection for living‑room TV environment

  4. V‑by‑One high‑speed signal interface, mature mainstream TV‑grade solution, stable high‑speed FHD image transmission

  5. Ultra‑thin open‑cell glass structure, lightweight for 40‑inch TV cabinet and SKD mechanical design

  6. Grade A original bare glass, strict dead‑pixel, bright‑spot and mura inspection before packing

  7. Sufficient spot inventory, support small sample trial and large‑volume factory wholesale with competitive price

  8. RoHS compliant, meet global consumer electronic environmental requirements

  9. Supply datasheet, pin assignment and driving reference for engineering development

5. Typical Application Scenarios

  • Broken 40‑inch LED TV screen replacement & repair

  • 40‑inch TV set SKD assembly spare open‑cell glass

  • Indoor wall‑mount commercial digital signage & advertising player

  • Hotel information display terminal

  • Compatible replacement for Samsung LSC400HN02 series 40‑inch open‑cell panels

 6. Frequently Asked Questions

Q1: Does LSC400HN02‑G02 include LED backlight strips?

A1: No, this is open‑cell bare glass panel without backlight. You must prepare matching LED backlight strips for normal display.

Q2: What driver board is required for this Samsung panel?

A2: It requires V‑by‑One 8‑lane TV driver board. LVDS controller cannot drive this open‑cell.

Q3: Can LSC400HN02‑G02 be used for touch monitor?

A3: Raw open‑cell has no touch. We offer optical bonding service to attach capacitive touch glass for custom touch display.

Q4: What is the working temperature range?

A4: Operating temperature 0℃ ~ +50℃, designed for indoor TV and commercial signage applications, avoid long‑term direct sunlight exposure.

Q5: Can I order sample unit?

A5: Yes, sample and bulk orders are acceptable. Contact us for quotation and request datasheet & pin‑out documents

Related Products:Samsung LCD PanelsTV Grade Open‑Cell Panels

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
LSC400HN02‑G02 Samsung 40 Inch FHD SVA‑TFT‑LCD Open‑Cell TV Panel

LSC400HN02‑G02 Samsung 40 Inch FHD SVA‑TFT‑LCD Open‑Cell TV Panel

LSC400HN02‑G02

40"
Samsung  LSC400HM06  40 Inch FHD LCD Open‑Cell 1920×1080 TV Panel

Samsung LSC400HM06 40 Inch FHD LCD Open‑Cell 1920×1080 TV Panel

lsc400hm06

1920×1080(RGB), FHD 55PPI
0 cd/m²
5000 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
No B/L
LVDS (2 ch, 10-bit) , 51 pins Connector
a-Si TFT-LCD, CELL , FOB
lsc400hm09  Samsung  40  inch  panel lcd

lsc400hm09 Samsung 40 inch panel lcd

lsc400hm09

1920(RGB)×1080, FHD 55PPI
0 cd/m²
5000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
No B/L
LVDS (2 ch, 10-bit) , 51 pins Connector
a-Si TFT-LCD, CELL , FOB
