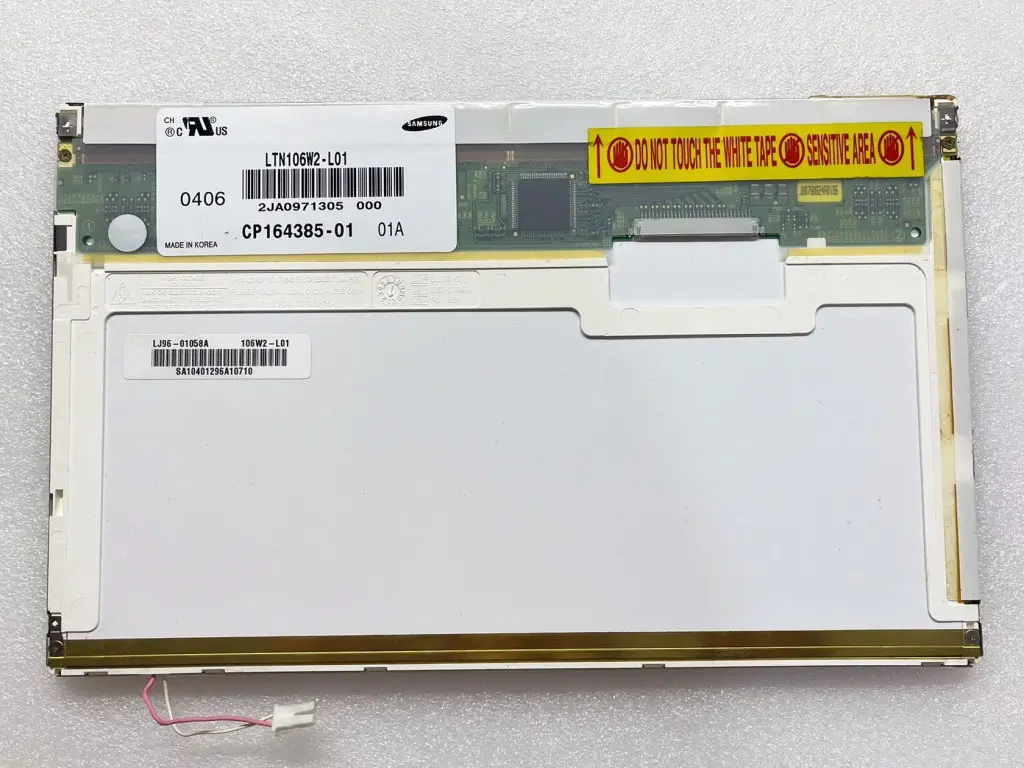

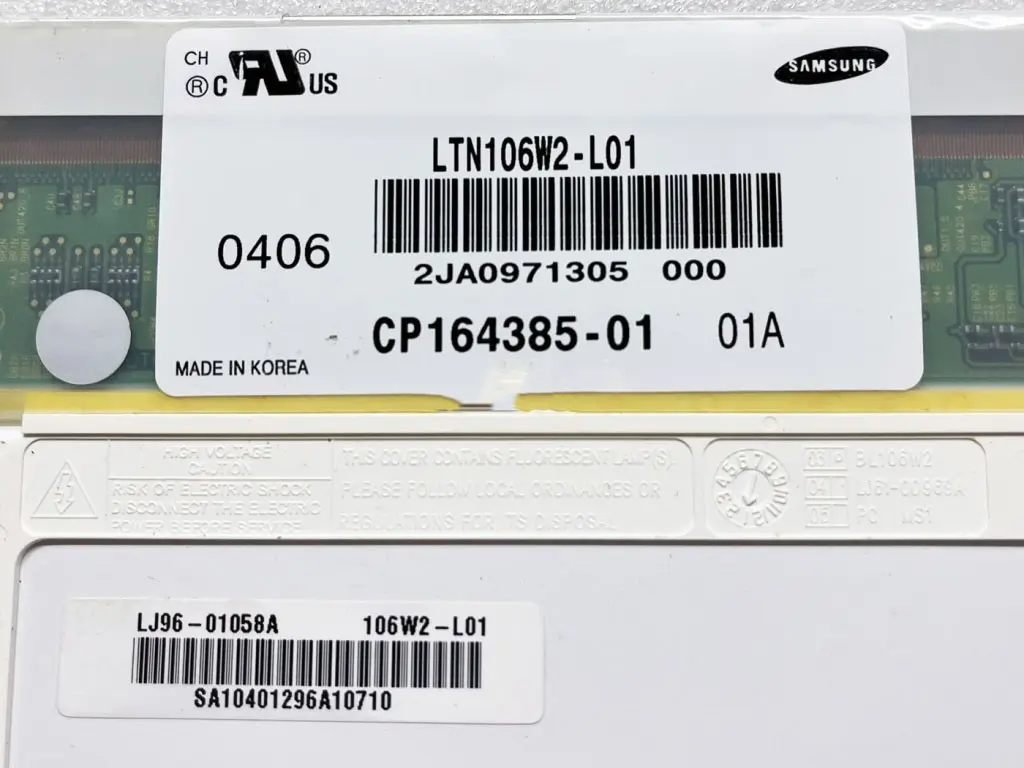

LTN106W2-L01 Samsung 10.6 inch 1280*768 lcd display panel
LTN106W2-L01 Samsung 10.6 inch 1280*768 lcd display panel
Price: $85.00
$80.00/ piece
Add to cart
LTN106W2-L01 Samsung
LTN106W2-L01 Samsung
LTN106W2-L01 Samsung
LTN106W2-L01 Samsung

LTN106W2-L01 Samsung 10.6 inch 1280*768 lcd display panel

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LTN106W2-L01 Samsung 10.6 inch 1280*768 lcd display panel

Product Information Product Specifications
Model:
LTN106W2-L01
Brand:
SAMSUNG
Application:
Industrial
Size:
10.6"
Resolution:
1280(RGB)×768, 15:9, WXGA
Brightness:
170 cd/m² (Typ.)
Contrast Ratio:
250:1 (Typ.) (TM)
Viewing Angle:
45/45/15/30 (Min.)(CR≥10)
Lamp Type:
1 pcs CCFL, 10K hrs, Without Driver
Signal Interface:
LVDS (2 ch, 6-bit), 30 pins Connectorr
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
230.4(H)×138.24(V) mm
Outline:
243.4(H)×152(V)×5.3(D) mm
Storage Temp:
-25 ~ 60 °C
Operating Temp:
0 ~ 50 °C
Support Color:
262K, 45% NTSC
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
369
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

LTN106W2-L01 is a classic 10.6-inch a-Si TFT-LCD liquid crystal module developed and manufactured by Samsung Electronics Co., Ltd., a global leader in semiconductor and display technology. Based on the official datasheet Rev.5 (issued on April 11, 2003, 28 pages), this panel features a 15:9 wide aspect ratio, 141 PPI pixel density, and 45% NTSC color gamut, delivering stable visual performance for legacy consumer and industrial applications.


It adopts TN (Twisted Nematic) technology with normally white transmissive mode, providing 45°/45°/15°/30° viewing angles (CR≥10) with an optimum viewing direction of 6 o'clock. The panel uses a single CCFL backlight system without integrated driver, offering a typical brightness of 170 cd/m² and a lifespan of 10,000 hours. With a matte anti-glare surface (40% haze) + 2H hard coating and an ultra-thin profile of only 5.0 mm, it is widely used as a replacement panel for older 10.6-inch notebook computers and embedded industrial systems.


LTN106W2-L01 Samsung  lcd display panel Highlights:

Unique 10.6-inch 15:9 Aspect Ratio: Perfect match for older 10.6-inch notebook computers and embedded systems

Samsung Original Quality: Reliable performance and consistent quality from Samsung's advanced manufacturing process

Matte Anti-Glare Surface: 40% haze reduces reflections and eye strain, suitable for long-term use

Ultra-Thin Design: Only 5.0mm thickness, ideal for space-constrained applications

Standard LVDS Interface: Widely compatible with most older notebook and industrial control boards

Available Replacement Stock: Limited but stable stock for urgent replacement needs

Proven Reliability: Over 20 years of field use history in various consumer and industrial applications



LTN106W2-L01 Samsung  lcd display panel  Specifications:

ParameterSpecification
Panel BrandSamsung Electronics
Panel ModelLTN106W2-L01
Alternative NamesSEC3050, LTN106W2L01, LTN106W2-L01-0
Panel Size10.6 inches (diagonal)
Panel Typea-Si TFT-LCD, Liquid Crystal Module (LCM)
TechnologyTN (Twisted Nematic), Normally White, Transmissive
Resolution1280(RGB) × 768 (WXGA)
Pixel Density141 PPI
Pixel Pitch0.180 × 0.180 mm (H×V)
Pixel FormatRGB Vertical Stripe
Aspect Ratio15:9 (W:H)
Active Area230.4 (W) × 138.24 (H) mm
Bezel Opening234.4 (W) × 142.25 (H) mm
Outline Dimensions243.4 (W) × 152.0 (H) × 5.0 (D) mm (Typical)
Surface TreatmentMatte (Haze 40%), Hard coating (2H)
Brightness170 cd/m² (Typical)
Contrast Ratio250:1 (Typical, Transmissive)
Viewing Angle45°(L)/45°(R)/15°(U)/30°(D) (Minimum, CR≥10)
Optimum Viewing Direction6 O'clock
Display Colors262K (6-bit)
Color Gamut45% NTSC (CIE1931)
Response Time10/30 ms (Typical, Tr/Td)
Refresh Rate60 Hz
Backlight TypeSingle CCFL Tube, Without Driver
Backlight Lifespan10,000 hours (Typical)
InterfaceLVDS (2 Channels, 6-bit), 30 Pins Terminal
Supply Voltage3.3V (Typical)
Operating Temperature0 ~ 50 °C
Storage Temperature-25 ~ 60 °C
Weight1.0 kg (Packaged)
Touch ScreenNot Integrated
Production StatusDiscontinued
Stock Quantity189+ pieces (as of May 2026)

LTN106W2-L01 Samsung  lcd display panel  Applications:

Legacy Notebook Computers

Industrial Control Panels

HMI (Human-Machine Interface) Displays

Embedded Industrial Systems

Medical Equipment Replacement Screens

POS (Point of Sale) Terminals

Test and Measurement Instruments

Security Monitoring Systems

Vending Machine Displays

ATM Displays


FAQ:

Q1: Is LTN106W2-L01 still in production?

A1: No, Samsung discontinued the production of LTN106W2-L01 many years ago. However, we maintain a limited stock of original new and tested used panels for replacement purposes.

Q2: What is the difference between LTN106W2-L01 and LTN106W1-L01?

A2: The main difference is brightness. LTN106W2-L01 has a typical brightness of 170 cd/m², while LTN106W1-L01 has a slightly higher brightness of 185 cd/m². Both panels have the same resolution, interface and mechanical dimensions.

Q3: Is LTN106W2-L01 compatible with my notebook?

A3: LTN106W2-L01 uses a 30-pin LVDS interface (2 channels, 6-bit). Please check your notebook's original panel model and interface type before purchasing. It is compatible with models that originally used LTN106W2-L01 or its alternative names.
