Samsung LTN104S2-L01 10.4 Inch 800x600 TFT LCD Laptop Screen Replacement Panel
Samsung LTN104S2-L01 10.4 Inch 800x600 TFT LCD Laptop Screen Replacement Panel
Price: $80.00
$75.00/ piece
Add to cart

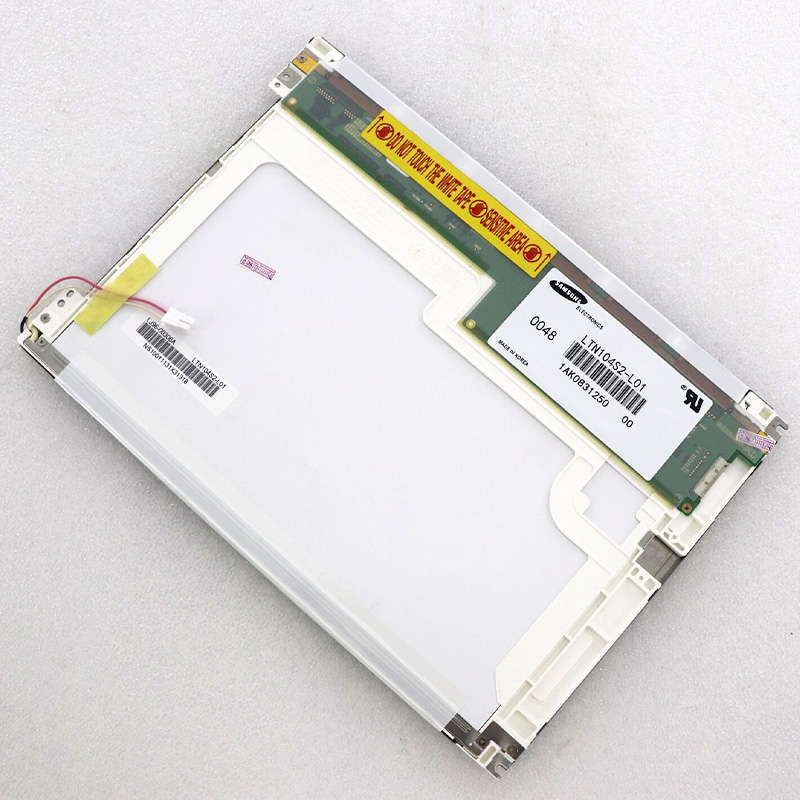

Samsung LTN104S2-L01 10.4 inch 800x600 TFT LCD laptop screen front view
LTN104S2-L01 LVDS interface connector and CCFL socket back view
Samsung LTN104S2-L01 model number specification label
Samsung LTN104S2-L01 10.4 inch 800x600 TFT LCD laptop screen front view
LTN104S2-L01 LVDS interface connector and CCFL socket back view
Samsung LTN104S2-L01 model number specification label

Samsung LTN104S2-L01 10.4 Inch 800x600 TFT LCD Laptop Screen Replacement Panel

Price: $80.00
$75.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Samsung LTN104S2-L01 10.4 Inch 800x600 TFT LCD Laptop Screen Replacement Panel

Product Information Product Specifications
Model:
LTN104S2-L01
Brand:
SAMSUNG
Application:
Tablet
Size:
10.4"
Resolution:
800(RGB)×600, SVGA 96PPI
Brightness:
230 cd/m² (Typ.)
Contrast Ratio:
300 : 1 (Typ.) (TM)
Viewing Angle:
60/60/50/50 (Typ.)(CR≥10)
Lamp Type:
1 pcs CCFL , 20K hours , No Driver
Signal Interface:
LVDS (1 ch, 6-bit) , 14 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
99
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The Samsung LTN104S2-L01 is a 10.4-inch a-Si TFT-LCD LCM panel designed for industrial laptops, pad and tablet systems. It features an 800 × 600 SVGA resolution, transmissive normally white display mode, LVDS interface, and a typical power consumption of 2.94 W. The panel is rated for operation from 0 to 50 °C and includes a 20,000-hour typical backlight lifetime.

Key Features

  • 4-inch a-Si TFT-LCD LCM panel

  • 800 (RGB) × 600 SVGA resolution at 96 PPI

  • Transmissive, normally white TN display mode

  • 230-nit brightness with 300:1 typical contrast ratio

  • Single-channel 6-bit LVDS interface

  • Typical backlight lifetime of 20,000 hours

  • Operating temperature range of 0 to 50 °C

  • Storage temperature range of -20 to 60 °C

  • Typical power consumption of 2.94 W

  • Weight of 345 g maximum

Technical Specifications

Panel ModelLTN104S2-L01
Panel Typea-Si TFT-LCD, LCM
Display Size10.4
Resolution800(RGB)×600, SVGA [96PPI]
Pixel Pitch0.088×0.264 mm
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness230
Contrast Ratio300:1 (Typ.) (Transmissive)
Response Time5/25 (Typ.)(Tr/Td) ms
Viewing Angle60/60/50/50 (Typ.)(CR≥10)
Color Temperature6551K
Display ModeTN, Normally White, Transmissive
sRGB Coverage58% coverage (CIE 1931)
Outline Dimension6.1/6.3 (Typ./Max.) mm
Active Area211.2×158.4 mm
Weight345g (Max.)
Voltage490V (Typ.)
Power Consumption2.94W (Typ.)
Backlight Lifetime20K (Typ.) hrs
InterfaceLVDS (1 ch, 6-bit)

Applications

  • Industrial laptop displays

  • Tablet and pad systems

  • Portable industrial computing equipment

  • Embedded data-entry terminals

  • Point-of-sale and field-service systems

Frequently Asked Questions

Q1: What is the native resolution of the Samsung LTN104S2-L01?

A: The panel provides an 800 × 600 SVGA resolution with RGB pixel configuration and 96 PPI pixel density.

Q2: What display interface does the LTN104S2-L01 use?

A: It uses a single-channel, 6-bit LVDS interface.

Q3: What are the panel's operating and storage temperature ranges?

A: The operating temperature range is 0 to 50 °C, while the storage temperature range is -20 to 60 °C.

Q4: What is the typical backlight lifetime?

A: The backlight lifetime is 20,000 hours at typical conditions.

Q5: What are the typical brightness and contrast ratio?

A: The panel has a brightness of 230 and a typical transmissive contrast ratio of 300:1.

Q6: What is the typical response time of the display?

A: The typical response time is 5 ms rising and 25 ms falling for Tr/Td.

Q7: What are the outline and active-area dimensions?

A: The outline dimension is 6.1/6.3 mm at typical/maximum, and the active area measures 211.2 × 158.4 mm.
