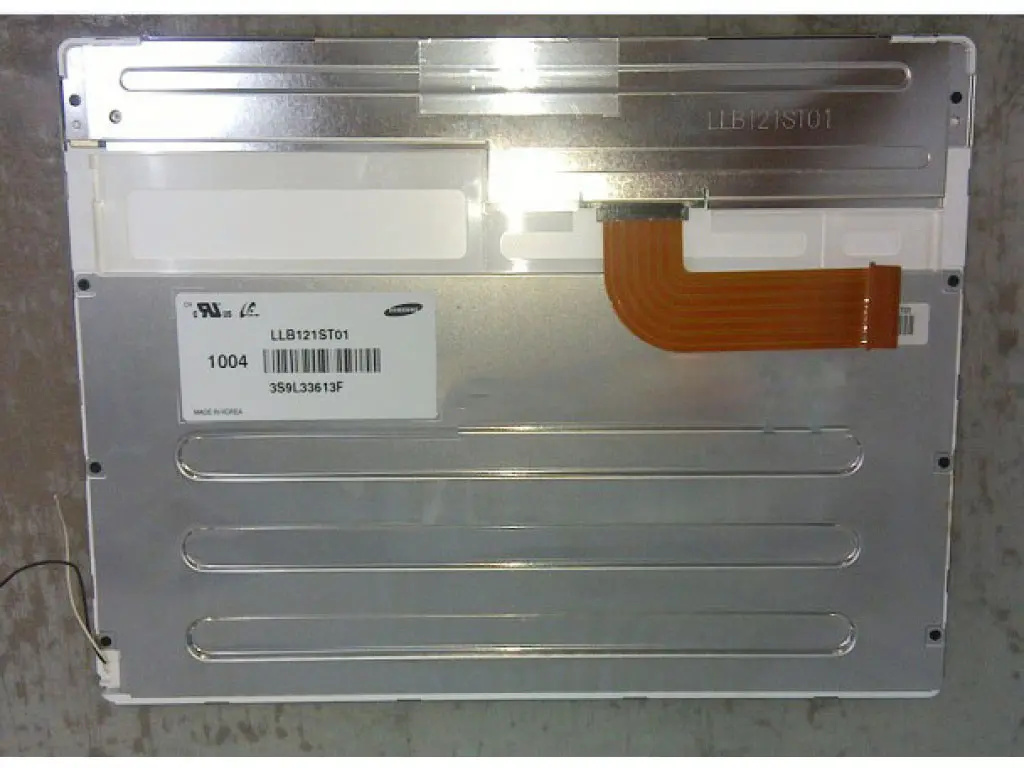

12.1" Samsung LCD Display LLB121ST01 800×600 SVGA CCFL LCM for Industrial
12.1" Samsung LCD Display LLB121ST01 800×600 SVGA CCFL LCM for Industrial
Price: $136.00
$132.00/ piece
Add to cart
12.1
12.1
12.1
12.1

12.1" Samsung LCD Display LLB121ST01 800×600 SVGA CCFL LCM for Industrial

Price: $136.00
$132.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

12.1" Samsung LCD Display LLB121ST01 800×600 SVGA CCFL LCM for Industrial

Product Information Product Specifications
Model:
LLB121ST01
Brand:
SAMSUNG
Application:
Industrial
Size:
12.1"
Resolution:
800*600
Panel Type:
a-Si TFT-LCD
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
360
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview
Samsung LLB121ST01 is a classic wide-temperature 12.1-inch SVGA TN industrial LCD module widely pre-installed on vintage factory automation, injection molding machinery, small CNC controllers, portable testing instruments and embedded industrial all-in-one devices. The standard 4:3 800×600 SVGA resolution perfectly matches legacy PLC HMI, process monitoring and parameter graph software incompatible with widescreen 16:9 panels.
It adopts single-channel 6-bit LVDS differential signal via flexible FPC cable, featuring reliable anti-electromagnetic interference performance and universal compatibility with mainstream industrial embedded motherboards and LVDS driver boards. Equipped with single-edge CCFL backlight, the module needs an external dedicated single-channel CCFL inverter board to power the backlight normally, supporting stable 24/7 continuous workshop operation with 50,000-hour rated service life.
ParameterSpecification
Model NumberLLB121ST01
ManufacturerSamsung Display
Diagonal Size12.1 inches
Native Resolution800(RGB) × 600 SVGA, 4:3 Aspect Ratio, 82 PPI
Display Technologya-Si TFT-LCD, TN Mode, Transmissive, Normally White
Pixel ArrangementRGB Vertical Stripe
Signal InterfaceSingle-channel 6-bit LVDS, FPC flexible cable, 3.3V logic voltage
Backlight SystemSingle side CCFL lamp, external dedicated CCFL inverter required, 50,000 hrs typical lifespan
Typical Brightness350 cd/m²
Typical Contrast Ratio300:1
Viewing Angle (L/R/U/D, CR≥10)60° / 60° / 45° / 55°, optimal viewing: 6 o’clock
Color Performance262K display colors, 42% NTSC gamut, native 6-bit RGB
Refresh Rate60 Hz
Pixel Pitch0.3075 × 0.3075 mm
Active Display Area (A.A)246.0 mm (W) × 184.5 mm (H)
Overall Outline Dimension278.0 mm (W) × 216.0 mm (H) × 12.0 mm (D)
Surface TreatmentMatte anti-glare polarizer, 2H scratch-resistant coating
Net Weight~1.0 kg typical
Operating Temperature Range-20 ℃ ~ +70 ℃ (Wide industrial temperature)
Storage Temperature Range-30 ℃ ~ +75 ℃
Touch FunctionNo integrated touch panel
Compliance StandardRoHS Lead-Free Certified, CE certified
Product StatusOfficially discontinued legacy industrial CCFL module, A-grade tested spot stock only for equipment repair & cross-replacement

Application Scenarios

Legacy injection molding, blow molding & plastic machinery main HMI operation panels

Old-generation small CNC machine tool operator display terminals

Factory PLC automation production line parameter monitoring screens

Portable industrial test, measurement & analytical instruments

Light medical portable diagnostic auxiliary display equipment

Textile, printing & packaging machinery control terminals

Frequency converter, hydraulic equipment cabinet monitoring screens

Cross-replacement spare screen for Samsung 12.1" SVGA CCFL industrial TFT modules

 FAQ

Q1: What backlight configuration does LLB121ST01 adopt? Is an external inverter required?
A1: Single side single CCFL lamp without built-in driving circuit; a matched single-channel CCFL inverter board is mandatory to light the backlight normally, WLED driver cannot be directly used.
Q2: What temperature environment can this Samsung industrial module adapt to?
A2: Operating temperature -20℃ ~ +70℃, storage -30℃ ~ +75℃. It supports wide temperature fluctuation industrial environments, better than standard 0~50℃ consumer-grade panels.
Q3: What signal interface does this screen use, TTL or LVDS?
A3: Single-channel 6-bit LVDS FPC interface with 3.3V logic voltage, not parallel TTL RGB, compatible with most industrial LVDS drive boards.
Q4: What are the disadvantages of CCFL backlight compared with modern WLED industrial panels?
A4: Higher power consumption, thicker module thickness, shorter service life, mercury-containing and eco-unfriendly, external inverter extra wiring cost, slow startup in low temperature.
Q5: Can LLB121ST01 replace Samsung LTM121SI-T01 directly?
A5: Similar mechanical outline and resolution, but FPC LVDS pin definition and CCFL lamp layout differ; inverter and wiring need reconfiguration, not plug-and-play direct replacement.
