LP156WH2‑TLEA LG 15.6 Inch 1366×768 40Pin LVDS TFT LCD Panel
LP156WH2‑TLEA LG 15.6 Inch 1366×768 40Pin LVDS TFT LCD Panel
Price: $167.00
$160.00/ piece
Add to cart

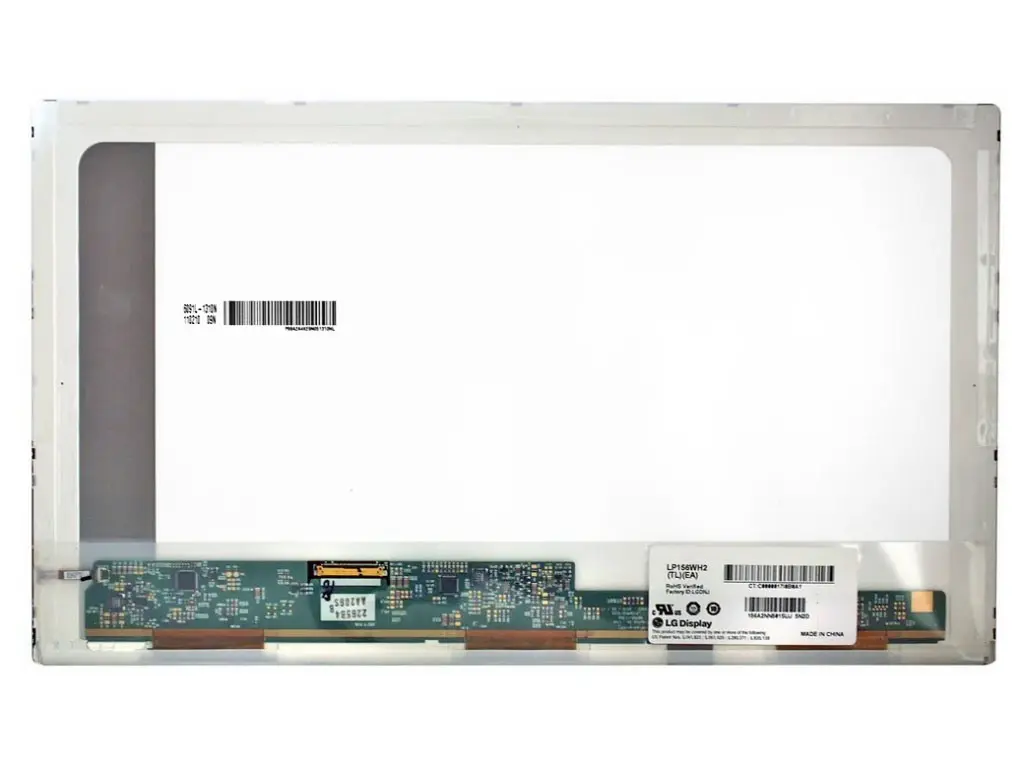

LP156WH2‑TLEA LG 15.6 Inch 1366×768 WXGA LVDS LCD Panel
LP156WH2‑TLEA LG 15.6 Inch 1366×768 WXGA LVDS LCD Panel

LP156WH2‑TLEA LG 15.6 Inch 1366×768 40Pin LVDS TFT LCD Panel

Price: $167.00
$160.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LP156WH2‑TLEA LG 15.6 Inch 1366×768 40Pin LVDS TFT LCD Panel

Product Information Product Specifications
Model:
LP156WH2-TLEA
Brand:
LG
Application:
Industrial
Size:
15.6"
Resolution:
1366(RGB)×768, 16:9, WXGA
Brightness:
220 cd/m² (Typ.
Contrast Ratio:
400:1 (Min.) (TM)
Viewing Angle:
40/40/10/30 (Min.)(CR≥10)
Lamp Type:
WLED, 12K hrs, With LED Driver
Signal Interface:
LVDS (1 ch, 6-bit), 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
300
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.000 KG
Overview

LP156WH2‑TLEA Original LG Display 15.6 Inch 1366×768 WXGA 40Pin LVDS TFT LCD Panel

 1. Product Overview

LP156WH2‑TLEA is an a‑Si TFT‑LCD display module produced by LG Display, belonging to classic LP156WH2 series. It adopts TN normally‑white transmissive optical mode, built‑in WLED backlight, single‑channel 6‑bit 40Pin LVDS signal interface, native WXGA 1366×768 resolution, 60Hz refresh rate, glossy 3H hard‑coating surface.

Typical brightness 220 cd/m², contrast ratio 400:1, slim 5.5mm thickness. Mainly used as replacement spare screen for old‑style 15.6‑inch notebooks, also suitable for embedded industrial display, portable testing equipment and custom display projects.

Zylcdshop maintains spot inventory for LP156WH2‑TLEA, supports sample testing and bulk wholesale, provides original datasheet, pin definition and technical matching support for global buyers.

 2. Full Technical Specifications

ItemParameter
Model NumberLP156WH2‑TLEA
BrandLG Display
Screen Size15.6 inch
Aspect Ratio16:9
Native Resolution1366 × 768 (WXGA)
Panel Typea‑Si TFT‑LCD, TN Normally White
Brightness220 cd/m² (Typ.)
Contrast Ratio400:1 (Typ.)
BacklightWLED, 12000 hours lifetime
InterfaceLVDS 1‑channel 6‑bit, 40 Pins
Refresh Rate60Hz
Response Time16ms (Tr+Td typical)
SurfaceGlossy(Gaze 0%), 3H Hard Coating
Active Area344.232 × 193.536 mm
Outline Dimension359.3 × 209.5 × 5.5 mm
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
ComplianceRoHS compliant

 3. Core Advantages of LP156WH2‑TLEA

  1. LG Original Grade A+ QualityOriginal LG LP156WH2‑TLEA panels, no refurbished, no split panels, stable optical performance, perfect for notebook aftermarket repair.

  2. Standard 40Pin Single‑Channel LVDS InterfaceWidely compatible with many legacy 15.6‑inch laptops, plug‑and‑play, no complicated driver modification required.

  3. Glossy 3H Hard‑Coating SurfaceGlossy display surface with 3H hard coating, scratch‑resistant for daily notebook usage.

  4. Slim Form FactorOnly 5.5mm thickness, fits most standard 15.6‑inch notebook housing.

  5. Flexible Order & Complete Technical SupportSupport 1pc sample order for evaluation, competitive wholesale price for bulk orders. Supply datasheet and pinout diagram for engineering reference.

 4. Main Application Scenarios

‑ 15.6‑inch notebook laptop screen replacement & repair ‑ Aftermarket spare parts for legacy 15.6‑inch laptops ‑ Embedded industrial display, small custom industrial monitor ‑ Portable testing equipment, automation auxiliary display terminal

5. Why Source LP156WH2‑TLEA From Zylcdshop

We are professional distributor for LG, AUO, BOE, Innolux LCD panels.

  1. Spot inventory of LP156WH2‑TLEA, ship within 24 hours after payment

  2. Strict pre‑shipment full‑function testing, 12‑month quality warranty (exclude man‑made damage)

  3. Provide datasheet, pin assignment and pre‑sales compatibility consultation

  4. Accept small sample & large‑volume bulk orders

  5. Multiple global logistics options and flexible B2B payment terms

 6. FAQ

Q1: What is the difference between LP156WH2‑TLEA and other LP156WH2 suffix versions?A1: They belong to the same LP156WH2 family; same size, resolution and 40‑pin LVDS interface. The suffix stands for different production batches, most are interchangeable, please double‑check surface type before ordering.

Q2: Is LP156WH2‑TLEA matte or glossy?A2: LP156WH2‑TLEA is glossy(glare) surface, not anti‑glare matte screen.

Q3: Can LP156WH2‑TLEA work with eDP driver board?A3: No. This panel uses 40‑pin LVDS interface, must match LVDS driver board.

Q4: Do you accept sample order?A4: Yes, 1‑piece sample is available for testing, better unit price for bulk quantity.

If you are searching for original LG LP156WH2‑TLEA 15.6‑inch 1366×768 WXGA 40Pin LVDS TFT LCD panel for laptop repair or custom display projects, please contact us for latest wholesale price, datasheet and compatibility consultation. We also supply other LG LP156WH2 series display modules.

Related Products:LG Lcd Panel15.6 inch lcd panel


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
LP156WH2‑TLEA LG 15.6 Inch 1366×768 40Pin LVDS TFT LCD Panel

LP156WH2‑TLEA LG 15.6 Inch 1366×768 40Pin LVDS TFT LCD Panel

LP156WH2-TLEA

15.6"
1366(RGB)×768, 16:9, WXGA
220 cd/m² (Typ.
400:1 (Min.) (TM)
40/40/10/30 (Min.)(CR≥10)
WLED, 12K hrs, With LED Driver
LVDS (1 ch, 6-bit), 40 pins Connector
a-Si TFT-LCD, LCM
LG LP156WF6-SPP1 15.6" Industrial LCD Display Panel 1920×1080

LG LP156WF6-SPP1 15.6" Industrial LCD Display Panel 1920×1080

LP156WF6-SPP1

15.6"
1920×1080 (FHD) (VGA)
350 cd/m² (ref)
500:1 (ref)
80/80/80/80 (ref)
CCFL
LVDS
Color TFT LCD
LP156WH2-TLEA is a 15.6" a-Si TFT-LCD, LCM Display screen Product from LG.According to LG's product specification sheet,LP156WH2-TLEA display has a resolution of 1366(RGB)×768, 16:9, WXGA, Contrast Ratio is 400:1 (Min.) (TM),Viewing Angle is 40/40/10/30 (Min.)(CR≥10),Lamp Type is WLED, 12K hrs, With LED Driver,Signal Interface is LVDS (1 ch, 6-bit), 40 pins Connector,Brightness is 220 cd/m² (Typ..Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LP156WH2-TLEA after packaging is 3.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
