LM315WR1‑SSB1 LG 31.5 Inch 4K UHD eDP IPS LCD Panel
LM315WR1‑SSB1 LG 31.5 Inch 4K UHD eDP IPS LCD Panel
Price: $169.00
$167.00/ piece
Add to cart
LM315WR1‑SSB1 LG 31.5 Inch 4K UHD IPS LCD Panel Front View

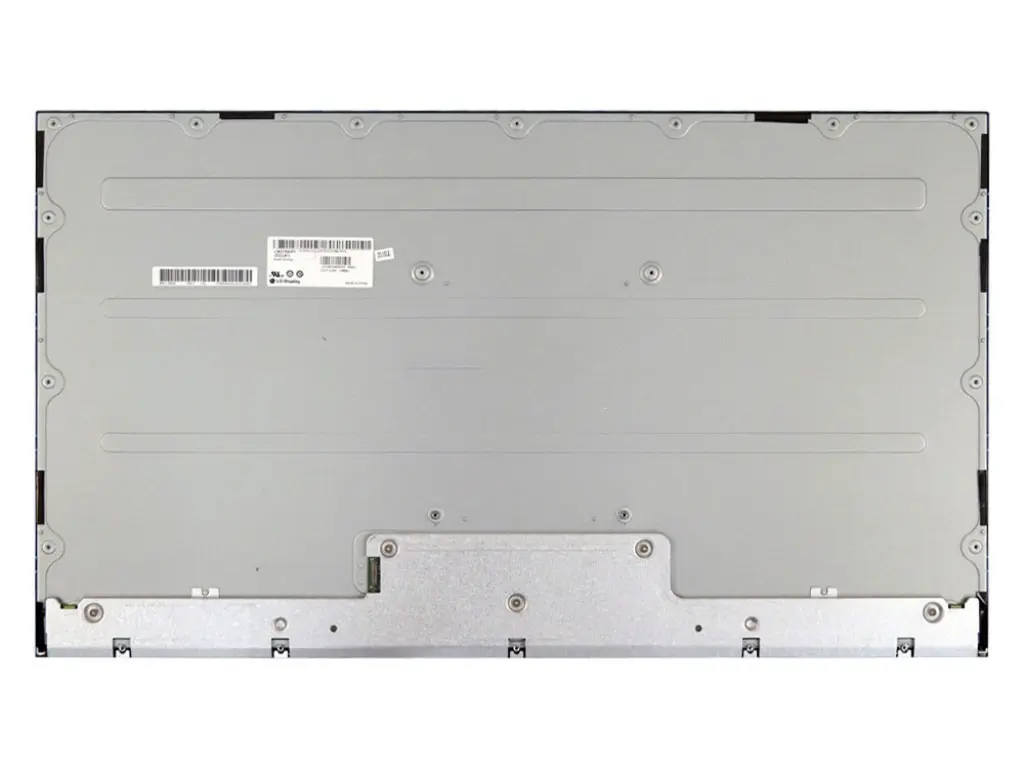

LM315WR1‑SSB1 LG LCD Screen Back Side 30Pin eDP Connector
LM315WR1‑SSB1 LG 31.5 Inch 4K UHD IPS LCD Panel Front View
LM315WR1‑SSB1 LG LCD Screen Back Side 30Pin eDP Connector

LM315WR1‑SSB1 LG 31.5 Inch 4K UHD eDP IPS LCD Panel

Price: $169.00
$167.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LM315WR1‑SSB1 LG 31.5 Inch 4K UHD eDP IPS LCD Panel

Product Information Product Specifications
Model:
LM315WR1‑SSB1
Brand:
LG
Application:
Industrial
Resolution:
3840(RGB)×2160, UHD, 16:9
Brightness:
350 cd/m² (Typ.)
Contrast Ratio:
1300:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
11S4P×2CN WLED, 30K hrs, Without Driver
Signal Interface:
eDP (4 Lanes), HBR2 (5.4G/lane), 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
303
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.000 KG
Overview

LM315WR1‑SSB1 Original LG Display 31.5 Inch 3840×2160 4K UHD eDP IPS LCD Panel

1. Product Overview

LM315WR1‑SSB1 is a high‑performance a‑Si TFT‑LCD IPS module manufactured by LG Display, belonging to LM315WR1 series. It adopts normally‑black transmissive mode, edge‑lit WLED backlight, 4‑lane HBR2 eDP 30‑pin connector, native 4K UHD 3840×2160 resolution, 60Hz refresh rate.

With 350 cd/m² typical brightness, 1300:1 high contrast ratio, wide 89° viewing angle on all four directions, 94% DCI‑P3 wide color gamut and anti‑glare AG25% 3H hard‑coating surface, this panel delivers excellent color reproduction for professional monitors, desktop display replacement and industrial visualization equipmentAlibaba.co....

Zylcdshop keeps spot stock for LM315WR1‑SSB1, supports sample evaluation and bulk wholesale, provides original datasheet, pin definition and technical matching support for global buyers.

 2. Full Technical Specifications


ItemParameter
Model NumberLM315WR1‑SSB1
BrandLG Display
Screen Size31.5 inch
Aspect Ratio16:9
Native Resolution3840 × 2160 (4K UHD)
Panel Typea‑Si TFT‑LCD, IPS Normally Black
Brightness350 cd/m² (Typ.)
Contrast Ratio1300:1 (Typ.)
Color Gamut94% DCI‑P3, 1.07B Colors(10bit+A‑FRC)
BacklightEdge‑type WLED, 30000hrs lifetime
InterfaceeDP 4‑lane HBR2, 30 Pins Connector
Refresh Rate60Hz
Response Time14ms G‑to‑G (Typ.)
Viewing Angle89/89/89/89 (CR≥10)
SurfaceAnti‑Glare AG25%, 3H Hard Coating
Active Area697.306 × 392.234 mm
Outline Dimension709.11 × 405.48 ×13.6 mm
Operating Temperature0℃ ~ +50℃
Storage Temperature-20℃ ~ +60℃
ComplianceRoHS compliant

3. Core Advantages of LM315WR1‑SSB1

  1. 4K UHD IPS Wide‑Color‑Gamut Performance94% DCI‑P3 wide color gamut, 10‑bit color depth, outstanding color accuracy, suitable for graphic design, video editing and professional display scenarios.

  2. Anti‑Glare Matte SurfaceAG anti‑glare coating effectively reduces ambient light reflection, great for office, studio and bright‑environment installation.

  3. Full‑Angle IPS Viewing Experience89‑degree ultra‑wide viewing angle on four sides, minimal color shift when viewed from offset angles.

  4. Original LG Grade A+ Quality & Spot SupplyOriginal LG panels, strict A+ grade screening. Support 1pc sample order, competitive price for mass OEM projects, fast global shipping.

  5. Complete Technical SupportOffer datasheet, pinout diagram; we can also supply matched eDP driver board for quick evaluation.

 4. Main Application Scenarios

‑ OEM/ODM 31.5‑inch 4K professional desktop monitor ‑ Graphic design, photo & video editing display equipment ‑ Monitor spare‑part replacement & repair ‑ Industrial visualization, medical imaging auxiliary display ‑ Digital signage, commercial large‑screen display terminal

5. Why Source LM315WR1‑SSB1 From Zylcdshop

We are professional distributor for LG, AUO, BOE, Innolux LCD panels.

  1. Spot inventory of LM315WR1‑SSB1, ship within 24 hours after payment

  2. Strict pre‑shipment full‑function testing, 12‑month quality warranty (exclude man‑made damage)

  3. Supply original datasheet, pin assignment and pre‑sales compatibility consultation

  4. Accept small sample & large‑volume bulk orders

  5. Multiple global logistics options and flexible B2B payment terms

 6. FAQ

Q1: What is the difference between LM315WR1‑SSB1 vs SSA1 / SSB2?A1: They belong to LM315WR1 family, same size and resolution; differences are batch version, surface treatment and color tuning. Please confirm exact suffix before purchase.

Q2: What interface does LM315WR1‑SSB1 use?A2: It uses 4‑lane HBR2 eDP 30‑pin interface, cannot work with LVDS driver board directly.

Q3: Is LM315WR1‑SSB1 touch screen?A3: Standard version is non‑touch; we can add capacitive touch overlay for custom project.

Q4: Can I order one piece for testing?A4: Yes, sample order is available; better unit price for bulk quantity.


Bottom CTA Paragraph

If you are searching for original LG LM315WR1‑SSB1 31.5‑inch 3840×2160 4K UHD IPS eDP LCD panel for monitor OEM or replacement projects, please contact us for latest wholesale price, datasheet and technical consultation. We also supply other LG LM315WR1 series display modules.
