LP140WH4-TLN1 LG Display 14 Inch 1366*768 40 Pin LVDS TFT LCD Panel
LP140WH4-TLN1 LG Display 14 Inch 1366*768 40 Pin LVDS TFT LCD Panel
Price: $75.00
$70.00/ piece
Add to cart
LP140WH4-TLN1 LG Display 14 inch 1366*768 40Pin LVDS TFT LCD Panel Front View

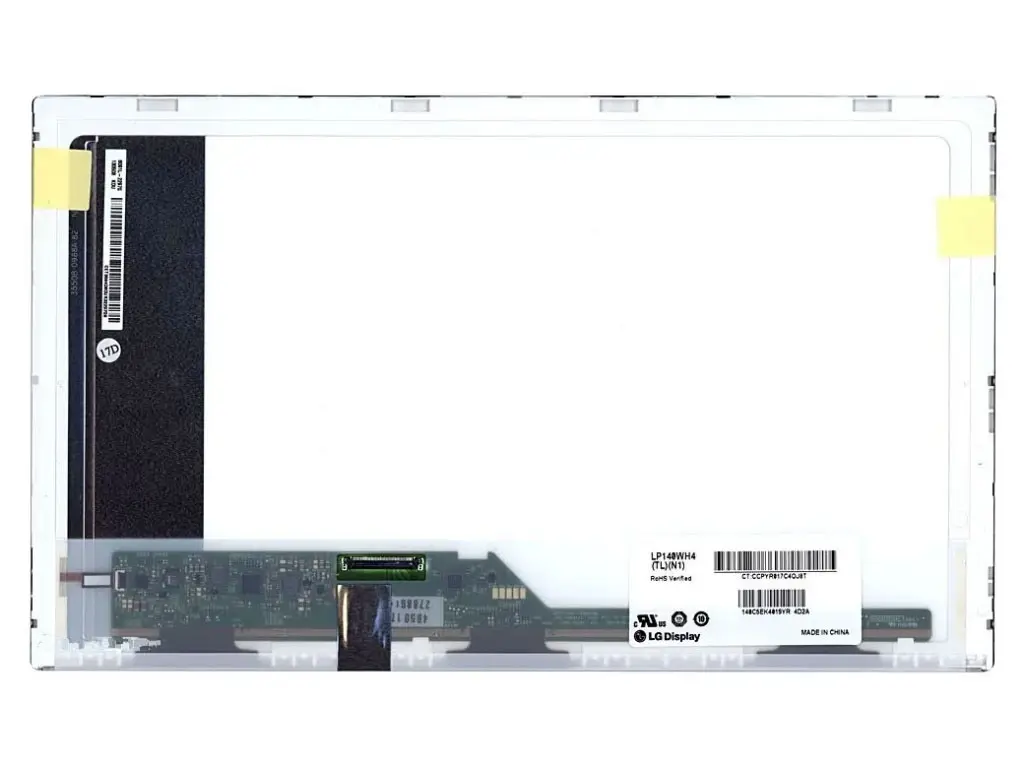

LP140WH4-TLN1 LCD Screen Back Interface LVDS Connector
LP140WH4-TLN1 LG Display 14 inch 1366*768 40Pin LVDS TFT LCD Panel Front View
LP140WH4-TLN1 LCD Screen Back Interface LVDS Connector

LP140WH4-TLN1 LG Display 14 Inch 1366*768 40 Pin LVDS TFT LCD Panel

Price: $75.00
$70.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LP140WH4-TLN1 LG Display 14 Inch 1366*768 40 Pin LVDS TFT LCD Panel

Product Information Product Specifications
Model:
LP140WH4-TLN1
Brand:
LG
Application:
Industrial
Size:
14"
Resolution:
1366(RGB)×768, WXGA, 16:9
Brightness:
200 cd/m² (Typ.)
Contrast Ratio:
500:1 (Typ.) (TM)
Viewing Angle:
40/40/15/35 (Typ.)(CR≥10)
Lamp Type:
WLED, 12K hrs, With LED Driver
Signal Interface:
LVDS (1 ch, 6-bit), 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
298
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

LP140WH4-TLN1 Original LG Display 14 Inch 1366×768 40 Pin LVDS TFT LCD Screen Panel

1. Product Overview

The LP140WH4-TLN1 is a brand-new original a-Si TFT-LCD display module manufactured by LG Display, model belonging to classic LP140WH4 series. Equipped with WLED backlight, TN normally white transmissive optical mode, standard 40Pin single channel 6-bit LVDS signal interface, HD 1366*768 resolution, widely used as laptop replacement screen, industrial portable equipment, embedded control display and digital signage screen.


As a reliable 14-inch LCD panel, LP140WH4-TLN1 features stable 60Hz refresh rate, 500:1 typical contrast ratio, 200cd/m2 standard brightness, operating temperature range 0~50°C, storage temperature -20~60°C, meeting the long-running stability demand of industrial and consumer electronic equipment. Our store zylcdshop.com keeps large inventory of LP140WH4-TLN1, supports retail and bulk wholesale, provides full datasheet, technical support and customized screen service.


 2. Full Technical Specifications

ItemParameter
Model NumberLP140WH4-TLN1 (LP140WH4 TLN1)
BrandLG Display
Screen Size14.0 inch
Aspect Ratio16:9
Native Resolution1366 × 768 (HD)
Panel Typea-Si TFT-LCD, TN Normally White
Brightness200 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.)
BacklightWLED, service life 12000 hours
InterfaceLVDS 1 ch 6-bit, 40 pins
Refresh Rate60Hz
Response Time16ms (Tr+Td)
Operating Voltage3.3V
Display Area309.399 × 173.952 mm
Outline Dimension323.5 × 192 × 5.2 mm
SurfaceGlossy, 3H hard coating
Operating Temp0℃ ~ +50℃
Storage Temp-20℃ ~ +60℃



3. Core Advantages of LP140WH4-TLN1

  1. Original LG Original Quality All LP140WH4-TLN1 LCD panels supplied by zylcdshop.com are brand new original LG Display products, no refurbished, no split screen, complete factory label, stable optical performance, long service life, avoid frequent screen failure for industrial equipment and notebook maintenance.

  2. Universal 40Pin LVDS Compatibility Standard single-channel 40Pin LVDS interface, widely compatible with most 14-inch old laptops, industrial touch all-in-one machines, embedded industrial control host, plug-and-play without complicated driver modification, reduce engineering development cost.

  3. Stable Wide Temperature Performance Standard working temperature range adapts to indoor factory workshop, office equipment, portable industrial detection equipment, not easy to appear color shift, flicker under long-time continuous operation.

  4. Cost-Effective Wholesale Supply We are first-hand supplier of LG industrial LCD modules, sufficient stock of LP140WH4-TLN1, support small sample order and large batch bulk order, competitive factory direct price, fast global shipping to Europe, North America, Southeast Asia.

  5. One-Stop Customized Service If you need special high brightness, capacitive/resistive touch overlay, driver board matching, outer frame customization for LP140WH4-TLN1 screen, our professional R&D team can provide tailor-made display solutions.

4. Main Application Scenarios

  • Notebook laptop screen replacement repair (Lenovo, Dell, HP old 14-inch notebooks)

  • Industrial portable controller, testing equipment embedded display

  • Small digital signage, retail advertising machine, supermarket terminal screen

  • Medical portable detection equipment, office industrial all-in-one touch machine

  • Automation equipment HMI auxiliary display, mini industrial monitor

 5. Why Buy LP140WH4-TLN1 From ZYLCDSHOP

Founded in 2008, Z&J is a large industrial LCD distributor in China, authorized agent of LG, AUO, BOE, Innolux, Kyocera display panels.

  1. Mass spot inventory of LP140WH4-TLN1, ship within 24 hours after payment

  2. Strict incoming quality inspection, test each LCD screen before delivery, 12-month warranty

  3. Professional pre-sales technical consultant to confirm compatibility for your equipment

  4. Provide original LP140WH4-TLN1 datasheet, pinout diagram, technical parameter support

  5. Global logistics support, door-to-door delivery, flexible payment terms for bulk buyers

6. Frequently Asked Questions

Q1: What’s the difference between LP140WH4-TLN1 and LP140WH4-TLA1?

A1: LP140WH4-TLN1 and LP140WH4-TLA1 belong to the same LP140WH4 series, same size, resolution and interface; the suffix only distinguishes different production batches, compatible interchangeable for most equipment.

Q2: Can LP140WH4-TLN1 be used for industrial touch screen?

A2: Yes, we can support matching resistive/capacitive touch overlay on LP140WH4-TLN1 module, supply complete touch LCD unit for HMI equipment.

Q3: Do you offer sample order for LP140WH4-TLN1?

A3: We accept 1 piece sample order for testing, the unit price will be more favorable for orders over 100pcs.

Q4: How long is the warranty of LG LP140WH4-TLN1 screen?

A4: All original LCD panels from zylcdshop.com enjoy 12 months quality warranty, exclude artificial damage.


If you are looking for original LG LP140WH4-TLN1 14 inch 1366*768 LVDS TFT LCD panel for laptop repair or industrial display project, welcome to contact us for latest wholesale price, free datasheet and technical matching consultation. We also supply full series LG LP140WH4 LCD modules and other size industrial display screens, including AUO, BOE, Innolux, Kyocera brand panels.

Related Products:LG Display

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
LP140WH4-TLN1 LG Display 14 Inch 1366*768 40 Pin LVDS TFT LCD Panel

LP140WH4-TLN1 LG Display 14 Inch 1366*768 40 Pin LVDS TFT LCD Panel

LP140WH4-TLN1

14"
1366(RGB)×768, WXGA, 16:9
200 cd/m² (Typ.)
500:1 (Typ.) (TM)
40/40/15/35 (Typ.)(CR≥10)
WLED, 12K hrs, With LED Driver
LVDS (1 ch, 6-bit), 40 pins Connector
a-Si TFT-LCD, LCM
LP140WU1-SPA1 LG Display  14.0 inch 1920*1200 tft lcd module

LP140WU1-SPA1 LG Display 14.0 inch 1920*1200 tft lcd module

LP140WU1-SPA1

14"
1920(RGB)×1200, 16:10, WUXGA
300 cd/m² (Typ.)
1000:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10
WLED, 15K hrs, With LED Driver, DC
eDP (2 Lanes), eDP1.4, HBR1 (2.7G/lane), 30 pins Connector
a-Si TFT-LCD, LCM
LP140WH8-TLA1  LG Display 14  inch lcd display module

LP140WH8-TLA1 LG Display 14 inch lcd display module

LP140WH8-TLA1

14"
1366(RGB)×768, WXGA 112PPI
200 cd/m² (Typ.)
500 : 1 (Typ.) (TM)
40/40/10/30 (Min.)(CR≥10)
WLED , 12K hours , With LED Driver
LVDS (2 ch, 6-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
LP140WH4-TLN1 is a 14" a-Si TFT-LCD, LCM Display screen Product from LG.According to LG's product specification sheet,LP140WH4-TLN1 display has a resolution of 1366(RGB)×768, WXGA, 16:9, Contrast Ratio is 500:1 (Typ.) (TM),Viewing Angle is 40/40/15/35 (Typ.)(CR≥10),Lamp Type is WLED, 12K hrs, With LED Driver,Signal Interface is LVDS (1 ch, 6-bit), 40 pins Connector,Brightness is 200 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LP140WH4-TLN1 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
