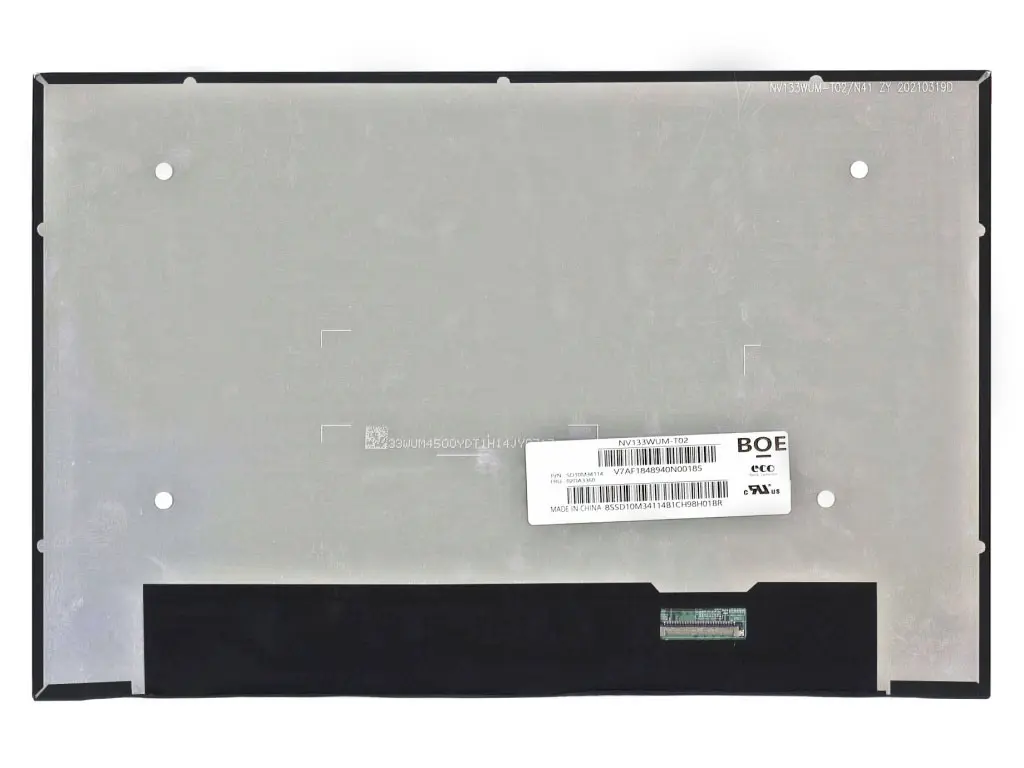

NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens
NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens
Price: $76.00
$74.00/ piece
Add to cart
NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens
NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens

NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens

Price: $76.00
$74.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens

Product Information Product Specifications
Model:
NV133WUM-T01
Brand:
BOE
Application:
Tablet
Size:
13.3"
Resolution:
1920(RGB)×1200, 16:10, WUXGA
Brightness:
300 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
9S5P WLED, 15K hrs, With LED Driver
Signal Interface:
eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane), 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
286.042(H)×178.776(V) mm
Outline:
291.04(H)×189.33(V)×4.5(D) mm
Storage Temp:
-20 ~ 60 °C
Operating Temp:
0 ~ 50 °C
Support Color:
16.7M, 100% sRGB
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
369
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.000 KG
Overview

NV133WUM-T01 BOE 13.3 inch 1920*1200 lcd display screens

BOE NV133WUM-T01 is a 13.3-inch a-Si TFT-LCD module manufactured by BOE Technology Group Co., Ltd., with product code BOE0A84. This display adopts ADS wide viewing angle technology, providing 1920(RGB)×1200 WUXGA resolution and 170PPI pixel density, with 1000:1 high contrast ratio and 300cd/m² typical brightness, delivering clear and sharp display effects with natural colors suitable for daily office work, study and entertainment.


NV133WUM-T01 is equipped with eDP 1.3 2-lane interface (40-pin connector), supporting 60Hz refresh rate for smooth and stable image display. Its biggest feature is the optional integrated On-Cell touch function, which integrates touch sensors inside the LCD panel without additional touch layers, making devices thinner and lighter. This product has passed RoHS environmental certification, with an operating temperature range of 0~50°C and storage temperature range of -20~60°C, adapting to various industrial and commercial environments.

NV133WUM-T01 BOE  lcd display screens Highlights:

High Contrast Display Effect: 1000:1 high contrast ratio, 25% higher than NV133WUM-T02, with deeper blacks, purer whites and clearer text display

Moderate Brightness Energy-saving Design: 300cd/m² typical brightness provides comfortable visual experience in indoor environments while effectively reducing power consumption

Integrated On-Cell Touch Function: Adopts advanced On-Cell touch technology, integrating touch sensors inside the LCD panel, making devices thinner and lighter with more precise touch control

16:10 Golden Ratio: Offers 18% more vertical display space than traditional 16:9 screens, improving office efficiency and suitable for document processing and web browsing

Standard eDP 40-pin Interface: Widely compatible with mainstream laptop and industrial device motherboards, can directly replace other models with the same specifications

Stable and Reliable: Passed strict industrial-grade tests, wide operating temperature range, good vibration resistance, suitable for various complex environments

Fast Response Time: 25ms typical response time, 17% shorter than NV133WUM-T02, providing smoother dynamic image display

Mass Production Guarantee: Started mass production in Q2 2022 with sufficient global inventory, ensuring stable long-term supply


NV133WUM-T01 BOE  lcd display screens  Parameters:

Parameter CategoryDetailed Specification
BrandBOE
ModelNV133WUM-T01 (Alias: BOE0A84)
Screen Size13.3 inches
Panel Typea-Si TFT-LCD, LCM
Display TechnologyADS, Normally Black, Transmissive
Resolution1920(RGB)×1200 (WUXGA)
Pixel Density170PPI
Pixel LayoutRGB Vertical Stripe
Aspect Ratio16:10
Brightness300 cd/m² (Typical)
Contrast Ratio1000:1 (Typical, Transmissive)
Viewing Angle85/85/85/85 (L/R/U/D, CR≥10)
Best View DirectionSymmetry
Response Time25ms (Typical, Tr+Td)
Color Depth6-bit+Hi-FRC
Display Colors16.7M
Color Gamut45% NTSC, 64% sRGB
Backlight Type9S5P WLED, Edge Light
Backlight Life15000 hours (Typical)
Backlight DriverIntegrated LED Driver
Signal InterfaceeDP 1.3, 2 Lanes, HBR1 (2.7G/lane)
Connector40 Pins
Refresh Rate60Hz
Supply Voltage3.3V (Typical)
Active Area286.042(W)×178.776(H) mm
Outline Dimensions291.74(W)×189.53(H)×3.0(D) mm (Maximum)
Surface TreatmentAntiglare (Matte), Hard Coating (3H)
Touch FunctionOptional On-Cell Touch
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Vibration Rating1.5G (14.7 m/s²)
Environmental CertificationRoHS
Datasheet VersionV3.0_Rev.O
Mass Production TimeQ2 2022
Production StatusIn Production


NV133WUM-T01 BOE  lcd display screens Applications

2-in-1 Laptops and Convertibles

Industrial Touch Terminals

Medical Display Devices

Smart Terminals and Commercial Displays


FAQ:

Q1: What is the difference between NV133WUM-T01 and NV133WUM-T02?A1: NV133WUM-T01 has a typical brightness of 300cd/m², contrast ratio of 1000:1, response time of 25ms, and uses eDP 1.3 interface; while NV133WUM-T02 has a typical brightness of 250cd/m², contrast ratio of 800:1, response time of 30ms, and uses eDP 1.2 interface. Both support On-Cell touch function and have the same number of interface pins (40 pins).
Q2: Does NV133WUM-T01 have both touch and non-touch versions?A2: Yes, NV133WUM-T01 is available in two versions: one with integrated On-Cell touch function and one without touch function. Please confirm the version you need when purchasing.
Q3: What is its interface type?A3: It adopts eDP 1.3 2-lane interface with 40-pin connector.
Q4: Which laptop models is this screen compatible with?A4: It is compatible with most 2-in-1 laptops and touch laptops using 13.3-inch 16:10 ratio and eDP 40-pin interface. It can directly replace NV133WUM-T00, NV133WUM-T03 models. For specific compatibility, please refer to your device manual or contact our technical support.
Q5: How long is the product warranty period?A5: We provide a standard 1-year warranty service. For specific terms, please refer to our warranty policy.
