Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module
Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module
Price: $80.00
$76.00/ piece
Add to cart
Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module
LTA104S1-L01
LTA104S1-L01
LTA104S1-L01
LTA104S1-L01

Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module

Price: $80.00
$76.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module

Product Information Product Specifications
Model:
LTA104S1-L01
Brand:
Samsung
Application:
Industrial
Size:
10.4"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
2000
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

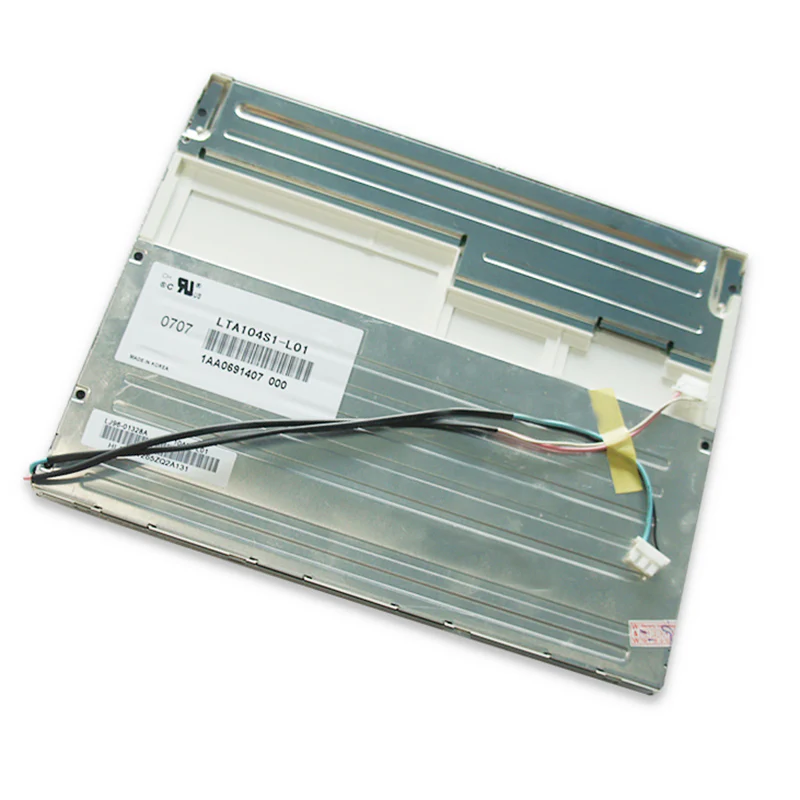

Samsung LTA104S1-L01 10.4-Inch Industrial TFT LCD Display Module


The Samsung LTA104S1-L01 is a 10.4-inch TFT-LCD display module designed for industrial equipment, embedded systems, industrial monitors, medical devices, and legacy display replacement applications.

Featuring 800 × 600 SVGA resolution, a-Si TFT active matrix technology, LVDS 20-pin interface, and a CCFL backlight system, the LTA104S1-L01 provides stable image performance and reliable operation for industrial display applications.


Key Features

Original Samsung Display TFT LCD module

10.4-inch industrial display size

Resolution: 800 × 600 pixels (SVGA)

4:3 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

262K display colors

RGB vertical stripe pixel arrangement

LVDS 1-channel 6-bit interface

20-pin LVDS connector

350 cd/m² brightness

150:1 contrast ratio


Technical Specifications

SpecificationDetails
ModelLTA104S1-L01
ManufacturerSamsung
Display Size10.4 Inch
LCD Typea-Si TFT-LCD
Resolution800 × 600 pixels
Display FormatSVGA
Aspect Ratio4:3
Display ModeTN, Normally White, Transmissive
Display Colors262K
Pixel ArrangementRGB Vertical Stripe
Active Area211.2 × 158.4 mm
Pixel Pitch0.264 × 0.264 mm
Brightness350 cd/m² (Typ.)
Contrast Ratio150:1 (Typ.)
Viewing Angle50/50/35/35 (Typ.)
Response Time10/30 ms (Typ.)
InterfaceLVDS
Signal Type1 Channel 6-bit
Connector20-pin

Typical Applications

Samsung LTA104S1-L01 is suitable for:

Industrial control panels

HMI operator interfaces

Factory automation equipment

Industrial PCs

CNC machine displays

Medical equipment monitors

Measurement instruments

Embedded display systems

Legacy LCD replacement projects

Automation control terminals


Why Choose Samsung LTA104S1-L01?

Original Samsung industrial LCD quality

Standard 10.4-inch SVGA format

Stable LVDS digital interface

High brightness 350 cd/m²

Reliable CCFL backlight system

Easy replacement for older industrial equipment

Suitable for long-term maintenance projects

Excellent compatibility with industrial display applications


Quality Assurance

Original Samsung LCD module

100% display function testing

Pixel defect inspection

LVDS signal verification

Brightness testing

Backlight inspection

Connector inspection

Anti-static protective packaging

Worldwide industrial LCD supply


FAQ

What is the resolution of Samsung LTA104S1-L01?

The LTA104S1-L01 features 800 × 600 SVGA resolution.

What interface does LTA104S1-L01 use?

It uses a LVDS 1-channel 6-bit interface with a 20-pin connector.

What backlight does LTA104S1-L01 use?

The panel uses a 2-piece CCFL backlight system without an integrated driver.

Is LTA104S1-L01 a touchscreen display?

No. The standard Samsung LTA104S1-L01 is an LCD module only. A resistive or capacitive touch panel can be added separately.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module

Samsung LTA104S1-L01 10.4-Inch 800×600 LCD Panel Industrial Display Module

LTA104S1-L01

10.4"
LTA104D183F Toshiba Panasonic 10.4-inch LCD Display LCD Module

LTA104D183F Toshiba Panasonic 10.4-inch LCD Display LCD Module

LTA104D183F

10.4"
800(RGB)×600, SVGA 96PPI
320 cd/m² (Typ.)
450:1 (Typ.) (TM)
60/60/50/50(Typ.)(CR≥10)
CCFL [2 pcs], 50K hours, W/O Driver
LVDS(1ch,6-bit),20pinsConnector
LTPS TFT-LCD, LCM
LTA104D182F Toshiba 10.4" LTPS TFT-LCD  LCM 800(RGB)×600  SVGA  96PPI

LTA104D182F Toshiba 10.4" LTPS TFT-LCD LCM 800(RGB)×600 SVGA 96PPI

LTA104D182F

10.4"
800(RGB)×600, SVGA 96PPI
400 cd/m² (Typ.)
450:1 (Typ.) (TM)
60/60/50/50(Typ.)(CR≥10)
2 pcsCCFL, 50K hours, Without Driver
LVDS(1ch,6-bit),20pinsConnector
LTPS TFT-LCD, LCM
LTA104A261F Toshiba 10.4" a-Si TFT-LCD  LCM 640(RGB)×480  VGA  76PPI

LTA104A261F Toshiba 10.4" a-Si TFT-LCD LCM 640(RGB)×480 VGA 76PPI

LTA104A261F

10.4"
640(RGB)×480, VGA 76PPI
400 cd/m² (Typ.)
250 : 1 (Typ.) (TM)
60/60/50/50(Typ.)(CR≥10)
2 pcsCCFL, 50K hours, No Driver
CMOS(1ch,6-bit),31pinsConnector
a-Si TFT-LCD, LCM
