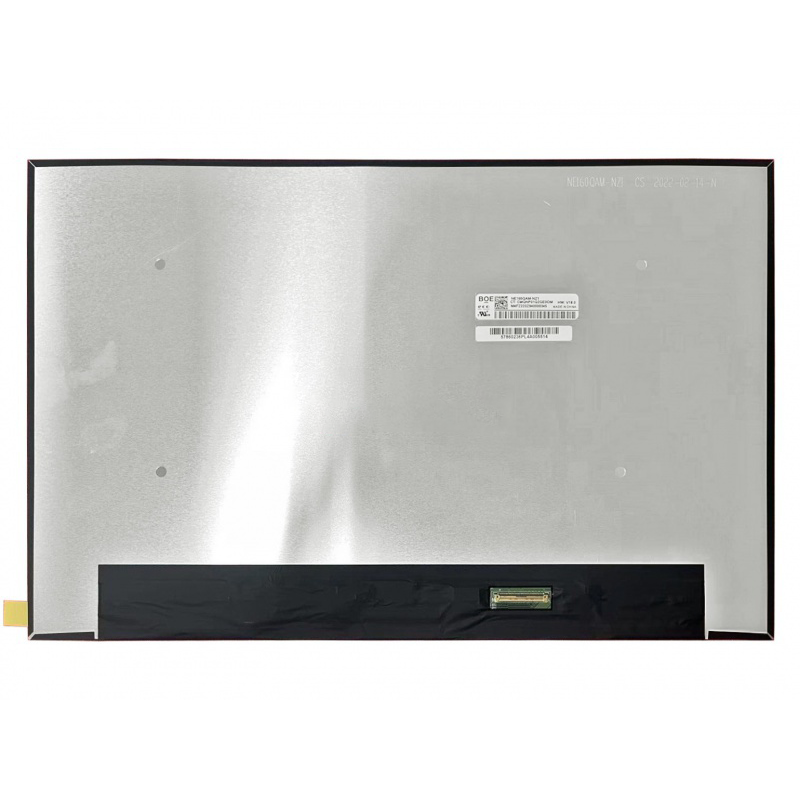

NE160QAM-NZ1 BOE 16inch 3840×2400 LCD DISPLAY

Parameter description：

1. Brand:BOE

2. Size: 16 inches

3. Model: NE160QAM-NZ1

4. Panel type: Oxide TFT-LCD, LCM

5. Resolution: 3840(RGB)×2400, WQUXGA  282PPI

6. AA zone size: 344.678(W)×215.424(H) mm

7. Overall dimensions: 349.68(W)×225.12(H) ×4.1(D) mm

8. Brightness: 500 cd/m² (Typ.)

9. Viewing angle: 89/89/89/89 (Typ.)(CR≥10)

10. Contrast ratio: 1200:1 (Typ.) (TM)

11. Display color: 16.7M   100% DCI-P3

12. Optical mode: ADS, Normally Black, Transmissive

13. Response speed: 9 (Typ.)(Tr+Td)

14. Signal interface: eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector

15. Light source type: 11S8P WLED , 15K hours , With LED Driver

16. Touch: Without

17. Working environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
