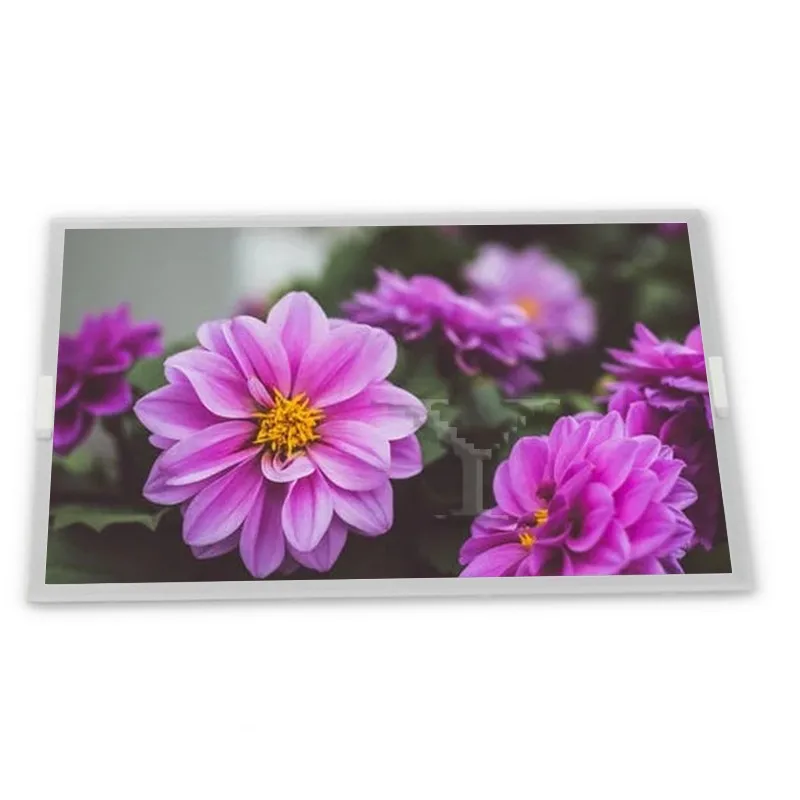

AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD
AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD
Price: $149.00
$145.00/ piece
Add to cart
AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD
AA084SD01 Mitsubishi Industrial LCD
AA084SD01 Mitsubishi Industrial LCD

AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD

Price: $149.00
$145.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD

Product Information Product Specifications
Model:
AA084SD01
Brand:
Mitsubishi
Application:
Industrial
Size:
8.4"
Resolution:
800(RGB)×600, SVGA 119PPI
Brightness:
600 (Typ.)(cd/m²)
Contrast Ratio:
600 : 1 (Typ.) (TM)
Viewing Angle:
GoodViewat
Lamp Type:
WLED , 100K hours , With LED Driver
Signal Interface:
LVDS(1ch,6/8-bit),20pinsConnector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
170.4(H)×127.8(V) mm
Outline:
199.5(H)×149(V)×10.2(D) mm
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-30 ~ 80 °C
Support Color:
262K/16.7M, 40% NTSC
Pixel Format:
RGB Vertical Stripe
Active Area:
170.4(W)×127.8(H) mm
Bezel Opening:
174.9(W)×132.2(H) mm
Outline size:
199.5(W)×149(H)×10.2(D)
Surface:
-
Response Time:
-
Best View on:
ColorDepth
Work Mode:
TN, Normally White, Transmissive
Display Colors:
Mass
Weight:
RefreshRate
Frequency:
GoodViewat
Touchscreen:
Without
Signal Type:
LVDS(1ch,6/8-bit),20pinsConnector
Voltage Supply:
3.3V(Typ.)
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
413
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD

Mitsubishi AA084SD01 is an 8.4-inch SVGA wide temperature industrial-grade TFT-LCD module launched by Mitsubishi Electric, belonging to Mitsubishi's DIAFINE industrial display series. This product adopts a-Si TFT active matrix technology with native 800(RGB)×600 SVGA standard resolution and 119PPI pixel density, equipped with 600cd/m² typical brightness and 600:1 high contrast ratio, supporting an extreme wide operating temperature range of -30°C to 80°C, providing excellent industrial-grade stability and environmental adaptability.


AA084SD01 adopts a WLED edge-lit backlight system with built-in LED driver circuit, no additional backlight driver board required, and the backlight life is up to 100,000 hours. The signal interface is a 20-pin single-channel 6/8-bit LVDS interface supporting 262K/16.7M color display. The surface is treated with 3H hardness anti-glare matte coating and passed 1.0G vibration test. With an overall thickness of only 9.7mm and a weight of about 475g, it is an ideal display solution for industrial control, automotive electronics, medical equipment and other fields. This model is fully compatible with the same series AA084SD01-T2 in mechanical dimensions and interfaces, only different in brightness (T2 version is 480cd/m²).


AA084SD01 Mitsubishi  Industrial LCD Highlights:

Built-in LED driver: Integrated WLED backlight driver circuit, no additional driver board required, simplifying system design and reducing costs

Extreme wide temperature design: Operating temperature range from -30°C to 80°C, adapting to various harsh industrial environments such as severe cold and heat

High brightness display: 600cd/m² typical brightness, ensuring clear content visibility even in indoor strong light and semi-outdoor environments

Ultra-long life backlight: WLED backlight system life up to 100,000 hours, greatly reducing maintenance costs and replacement frequency

Industrial-grade reliability: Passed 1.0G vibration test, 3H hardness anti-glare surface, original Mitsubishi quality, stable 24/7 operation


AA084SD01 Mitsubishi  Industrial LCD  Specification

ParameterSpecification
Part NumberAA084SD01 (Series: AA084SD01-T2)
BrandMitsubishi Electric
Screen Size8.4 inch
Panel Typea-Si TFT-LCD, Liquid Crystal Module (LCM)
Resolution800(RGB)×600 [SVGA]
Pixel Density119 PPI
Pixel FormatRGB Vertical Stripe
Pixel Pitch0.213×0.213 (H×V) mm
Active Area170.4(W)×127.8(H) mm
Bezel Opening174.9(W)×132.2(H) mm
Brightness600 cd/m² (Typical)
Contrast Ratio600:1 (Typical, Transmissive)
Color Depth262K/16.7M (6-bit/6-bit+FRC)
Color Gamut40% NTSC (CIE1931)
Backlight TypeWLED, edge-lit, integrated driver
Backlight Life100,000 hours (Typical)
Interface TypeLVDS (1 ch, 6/8-bit), 20 pins connector
Optical ModeTN, Normally White, Transmissive
Best View Direction6 o'clock (High Contrast) / 12 o'clock (Low Gray Scale Reversal)
Viewing Angle80°/80°/60°/80° (L/R/U/D, CR≥10)
Response Time4/12 ms (Tr/Td, Typical)
Refresh Rate60Hz
Input Voltage3.3V (Typical)
Operating Temperature-30°C ~ +80°C
Storage Temperature-30°C ~ +80°C
Vibration Rating1.0G (9.8 m/s²)
Surface TreatmentMatte, 3H hardness anti-glare coating
Mechanical Dimensions199.5(W)×149.0(H)×9.7(D) mm (Typical)
WeightApproximately 475g
Production StatusActive
Touch FunctionNo


AA084SD01 Mitsubishi  Industrial LCD Applications:

Industrial Automation: PLC HMI, industrial robot teach pendants, production line monitoring equipment, CNC machine control panels

Automotive Electronics: In-vehicle navigation systems, in-vehicle monitoring equipment, special vehicle dashboards, construction machinery display terminals

Medical Equipment: Portable medical instruments, medical monitoring devices, diagnostic equipment displays, laboratory analytical instruments

Financial Terminals: ATMs, self-service banking terminals, POS cash registers, queue management systems

Other Applications: Industrial monitors, advertising machines, self-service terminals, marine navigation equipment


FAQ:

Q1: What is the difference between AA084SD01 and AA084SD01-T2?

A1: Both have exactly the same technical parameters, mechanical dimensions and interfaces, only different in brightness: AA084SD01 is 600cd/m², AA084SD01-T2 is 480cd/m², and can be directly interchanged.

Q2: Does this screen require an additional backlight driver board?

A2: No, AA084SD01 has a built-in WLED backlight driver circuit, only 3.3V power supply is required for normal operation, simplifying system integration.

Q3: Is the product an original Mitsubishi genuine product?

A3: Yes, all AA084SD01 we sell are original genuine products manufactured by Mitsubishi Electric, with 12 months warranty and perfect after-sales service.

Q4: What is the viewing angle of this screen?

A4: AA084SD01 adopts TN display mode, the best viewing direction is 6 o'clock, horizontal viewing angle is 80°, vertical viewing angle is 60°/80°, meeting the needs of most industrial applications



Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD

AA084SD01 Mitsubishi 8.4" 800×600 SVGA Wide Temp Industrial LCD

AA084SD01

8.4"
800(RGB)×600, SVGA 119PPI
600 (Typ.)(cd/m²)
600 : 1 (Typ.) (TM)
GoodViewat
WLED , 100K hours , With LED Driver
LVDS(1ch,6/8-bit),20pinsConnector
a-Si TFT-LCD, LCM
MAA084DXA03 Mitsubishi  8.4 inch display lcd

MAA084DXA03 Mitsubishi 8.4 inch display lcd

MAA084DXA03

8.4"
1024*768
300
400 : 1
65/65/60/50
CCFL ,
20 pins
a-Si TFT-LCD, LCM
AA084XE11-CB1  Mitsubishi  8.4 inch  lcd display panel

AA084XE11-CB1 Mitsubishi 8.4 inch lcd display panel

AA084XE11-CB1

8.4"
1024*768
900
800:1
80/80/80/60
WLED
20 pins
a-Si TFT-LCD, LCM
AA084SD01 is a 8.4" a-Si TFT-LCD, LCM Display screen Product from Mitsubishi.According to Mitsubishi's product specification sheet,AA084SD01 display has a resolution of 800(RGB)×600, SVGA 119PPI, Contrast Ratio is 600 : 1 (Typ.) (TM),Viewing Angle is GoodViewat,Lamp Type is WLED , 100K hours , With LED Driver,Signal Interface is LVDS(1ch,6/8-bit),20pinsConnector,Brightness is 600 (Typ.)(cd/m²).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of AA084SD01 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
