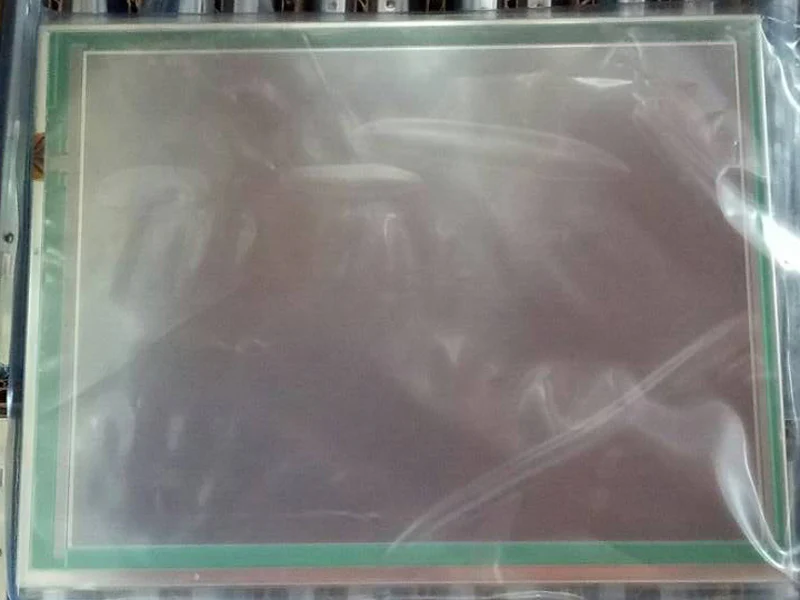

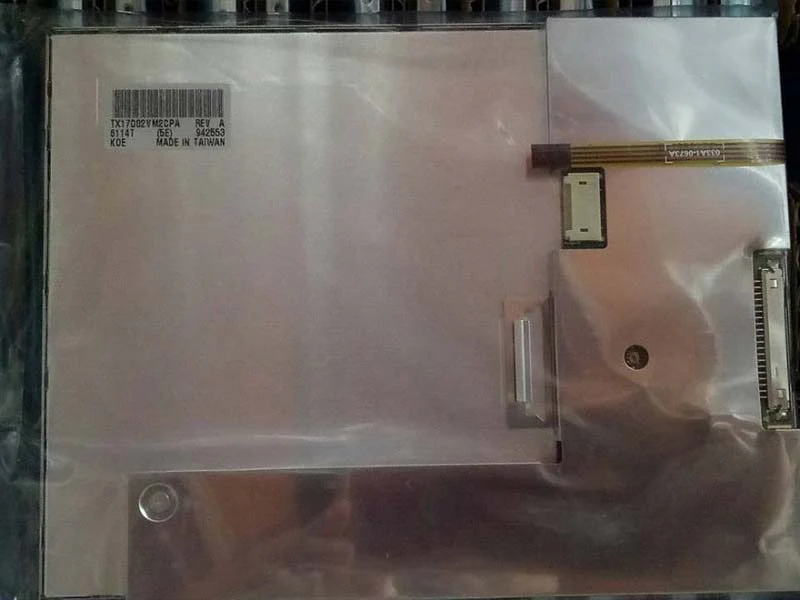

TX17D02VM2CPA HITACHI 6.5 inch 640(RGB)×480 industrial lcd panel

Product Information Product Specifications
Model:
TX17D02VM2CPA
Brand:
KOE/HITACHI
Application:
Industrial
Size:
6.5"
Resolution:
640(RGB)×480, VGA, 4:3
Brightness:
480 cd/m² (Typ.)
Contrast Ratio:
600:1 (Typ.) (TM)
Viewing Angle:
80/80/60/80 (Typ.)(CR≥10)
Lamp Type:
3S4P WLED, 70K hrs, With LED Driver
Signal Interface:
LVDS (1 ch, 6-bit), 20 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
110
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.500 KG
Overview

TX17D02VM2CPA is KOE’s cost-effective 6.5-inch VGA industrial TFT module derived from Hitachi industrial display technology, optimized for compact embedded control equipment, battery-powered portable testers and vehicle-mounted small display terminals.

Adopting TN liquid crystal with balanced horizontal and downward viewing angle, it maintains stable color reproduction for single-operator front operation scenes, avoiding obvious color washout and grayscale inversion under common workshop viewing postures. Classic 4:3 VGA resolution fully matches legacy industrial control software without UI compression, ideal for displaying multi-line parameter tables, equipment wiring diagrams and real-time running curves.

ParameterTechnical Specification
Full ModelTX17D02VM2CPA
ManufacturerKOE (Hitachi / JDI Group)
Diagonal Size6.5 inches
Native Resolution640(H) × 480(V) VGA, 4:3 Aspect Ratio, 122 PPI
LCD Technologya-Si TN TFT-LCD, Transmissive, Normally White
Pixel ArrangementRGB Vertical Stripe
Color Performance6-bit RGB, 262K display colors, 45% NTSC gamut
Signal InterfaceSingle-channel 6-bit LVDS, 20Pin FPC connector, 3.3V logic voltage
Backlight SystemEdge-lit WLED, onboard integrated LED driver IC, PWM dimming pin reserved
Rated Backlight Lifespan50,000 hours typical
Typical Brightness480 cd/m² high industrial brightness
Typical Contrast Ratio600:1
Viewing Angle (CR≥10, L/R/U/D)80° / 80° / 60° / 80°, Optimal viewing: 6 o’clock front lower
Total Response Time (Tr+Td)30 ms typical
Refresh Rate60 Hz standard
Pixel Pitch0.207 × 0.207 mm
Active Display Area (AA)132.48 mm (W) × 99.36 mm (H)
Overall Outline Dimension153.0 mm (W) × 118.0 mm (H) × 10.2 mm thickness
Net Weight~210 g lightweight compact module
Surface TreatmentMatte AG anti-glare polarizer, scratch-resistant coating
Operating Temperature Range-20 ℃ ~ +70 ℃ wide industrial grade
Storage Temperature Range-30 ℃ ~ +80 ℃
Touch PanelBare LCD without integrated touch; 4-wire resistive touch film optional optical bonding
Vibration & Shock1.8G industrial reliability certification
Compliance StandardRoHS Lead-Free Certified, mercury-free WLED backlight
Product StatusMass production active industrial panel, A-grade original new stock available

Core Product Advantages

  1. -20℃ ~ +70℃ wide temperature tolerance: Stable operation in cold storage, vehicle-mounted and fluctuating industrial cabinet environments

  2. 480 cd/m² high brightness: Visible under bright workshop and semi-outdoor ambient light

  3. Integrated WLED drive circuit: No separate external LED driver board required, lower assembly cost

  4. Compact 10.2mm slim thickness & lightweight 210g, fits narrow embedded control cavity

  5. Standard single-channel LVDS interface, widely compatible with mature industrial control hardware

  6. Mercury-free long-life WLED backlight, eco-friendly with low standby power consumption

  7. Mature Hitachi/KOE industrial circuit design, stable for 24/7 continuous equipment operation

 Typical Application Scenarios

  1. Compact factory automation HMI, small PLC production line monitoring control terminals

  2. Portable industrial measuring, field maintenance diagnostic handheld instruments

  3. Construction & agricultural machinery vehicle-mounted industrial control display screens

  4. Light medical portable auxiliary monitoring and analytical instrument displays

  5. Mini indoor self-service kiosks and logistics portable data recording terminals

  6. Replacement spare screen for KOE/Hitachi TX17D series 6.5" VGA LVDS industrial TFT modules

FAQ

Q1: Does TX17D02VM2CPA need an external LED driver for backlight?

A1: No, WLED drive circuit is integrated on the LCM PCB; only standard DC power input is needed, PWM pin reserved for adjustable brightness dimming control.

Q2: Can touch screen be bonded to this bare panel?

A2: No integrated touch sensor on bare LCD; external 4-wire resistive touch film can be optically bonded on front surface to realize touch interactive HMI customization.

Q3: Can this panel connect HDMI/VGA signal sources directly?

A3: It only supports single-channel LVDS input; an extra LVDS to HDMI/VGA conversion driver board is required for analog/digital signal access.

Q4: What is the limitation of the TN viewing angle?

A4: Upper vertical viewing angle only 60°, color fading and brightness loss will appear when viewed from high angles; front lower 6 o’clock position provides optimal stable display effect.

Q5: What temperature environments is this panel suitable for?

A5: Operating temperature -20~+70℃, suitable for indoor workshops, vehicle equipment and medium-temperature machinery cabinets; not recommended for long-term outdoor direct sunlight exposure.
