15.6" BOE NV156FHM-T00 FHD 1920×1080 On-Cell Touch Laptop LCD Panel
15.6" BOE NV156FHM-T00 FHD 1920×1080 On-Cell Touch Laptop LCD Panel Hot
Price: $115.00
$110.00/ piece
Add to cart
NV156FHM-T00 15.6 inch BOE On-Cell touch LCD panel laptop replacement screen
NV156FHM-T00 BOE LCD screen technical datasheet specification
NV156FHM-T00 15.6 inch BOE On-Cell touch LCD panel laptop replacement screen
NV156FHM-T00 BOE LCD screen technical datasheet specification

15.6" BOE NV156FHM-T00 FHD 1920×1080 On-Cell Touch Laptop LCD Panel Hot

Price: $115.00
$110.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

15.6" BOE NV156FHM-T00 FHD 1920×1080 On-Cell Touch Laptop LCD Panel

Product Information Product Specifications
Model:
NV156FHM-T00
Brand:
BOE
Application:
Industrial
Size:
15.6"
Resolution:
1920(RGB)×1080, FHD 141PPI
Brightness:
250 cd/m2 (Typ.)
Contrast Ratio:
800 : 1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
10S4P WLED , 15K hours , With LED Driver
Signal Interface:
eDP (2 Lanes) , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
20
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

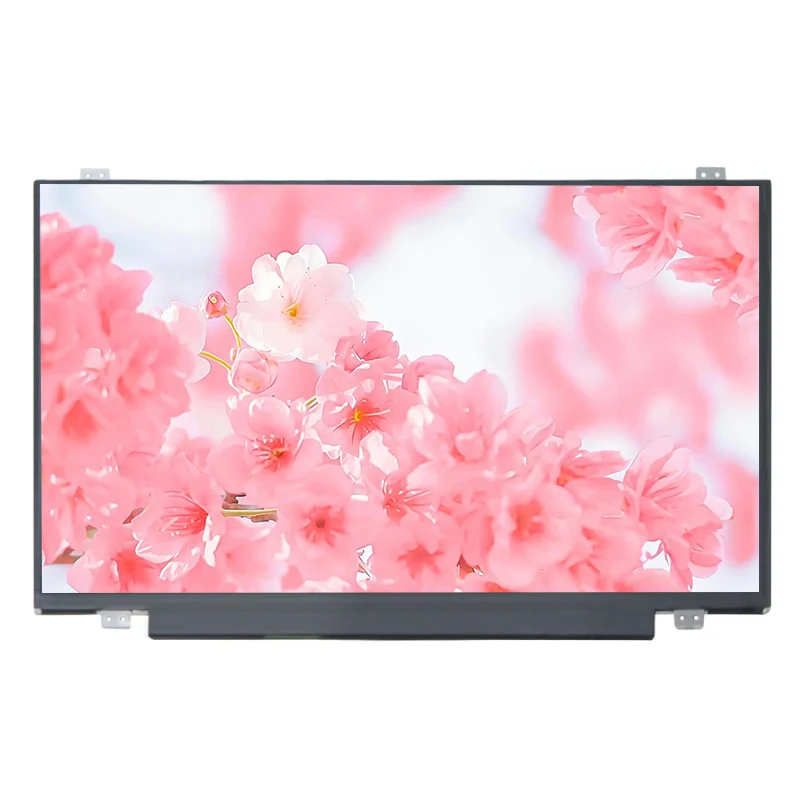

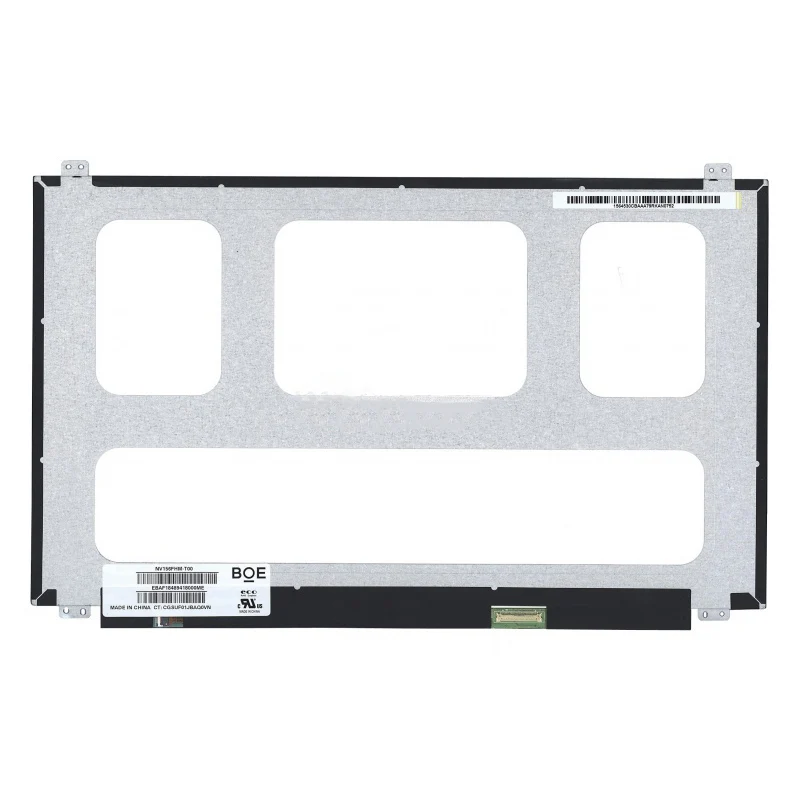

NV156FHM-T00 15.6 inch BOE TFT LCD panel is a Full HD IPS display integrated with On-Cell touch function. Featuring 1920×1080 resolution, eDP 2 lanes 40-pin interface and ADS wide viewing angle technology, this LCD module is widely used as touch laptop replacement screen, industrial touch monitor and embedded display equipment.ZYLCDSHOP supplies original BOE NV156FHM-T00 touch LCD screen with sufficient inventory. Every panel undergoes strict quality inspection before shipment to avoid dead pixels, flickering and line faults. We support bulk wholesale for notebook maintenance vendors and industrial display integrators worldwide.

Key Features

Original BOE NV156FHM-T00 LCD with built-in On-Cell capacitive touch

FHD 1920×1080 IPS wide viewing angle, 250 cd/m² typical brightness

eDP 2-lane 40 pin connector, 60Hz refresh rate, 3H hard coating glossy surface

WLED backlight with long service life; support Windows touch driver

Slim thickness design, suitable for notebook upgrade and embedded touch HMI

In stock, competitive wholesale price and short delivery lead time


Technical Specifications

ItemParameter
ModelNV156FHM-T00
Size15.6 Inch
Resolution1920 × 1080 FHD
Display TypeADS IPS TFT-LCD
Touch FunctionOn-Cell Touch
InterfaceeDP 2 Lanes, 40 Pins
Brightness250 cd/m² (Typ.)
Refresh Rate60Hz
Operating Temperature0℃ ~ 50℃
ApplicationTouch laptop replacement, industrial touch monitor, embedded terminal

Application Scenarios

BOE NV156FHM-T00 touch LCD panel is the ideal replacement screen for many 15.6-inch touchscreen notebooks. It is also adopted in industrial embedded touch terminals, self-service small-size kiosks, portable industrial monitors and automation human-machine display units.If you need matching eDP driver board or compatibility verification, our technical team can provide professional parameter support.
ZYLCDSHOP stocks full series BOE industrial & notebook LCD panels. Contact us to get official datasheet, sample price and bulk quotation.

FAQ

  1. Does NV156FHM-T00 come with touch function?Yes. NV156FHM-T00 integrates On-Cell capacitive touch, no extra touch overlay needed.
  2. What connector does NV156FHM-T00 use?It adopts eDP 2 lanes 40-pin interface, please confirm your device interface before purchase.
  3. Can NV156FHM-T00 be used for industrial touch monitor?Absolutely. It works for embedded touch display, portable industrial monitor and small kiosk equipment besides laptop replacement.

Related product links:15.6 FHD capacitive touch screen, eDP 2 lane LCD module, 250cd/m² industrial touch panel, BOE replacement laptop screen, 10-point multi-touch TFT LCD, ADS wide view display

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
15.6" BOE NV156FHM-T00 FHD 1920×1080 On-Cell Touch Laptop LCD Panel

15.6" BOE NV156FHM-T00 FHD 1920×1080 On-Cell Touch Laptop LCD Panel

NV156FHM-T00

15.6"
1920(RGB)×1080, FHD 141PPI
250 cd/m2 (Typ.)
800 : 1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
10S4P WLED , 15K hours , With LED Driver
eDP (2 Lanes) , 40 pins Connector
a-Si TFT-LCD, LCM
NV156FHM-NX3  BOE  15.6inch  1920×1080 LCD DISPLAY

NV156FHM-NX3 BOE 15.6inch 1920×1080 LCD DISPLAY

NV156FHM-NX3

15.6"
1920(RGB)×1080, FHD 141PPI
250 cd/m² (Typ.)
800:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
11S4P WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector
a-Si TFT-LCD, LCM
NV156FHM-NX2  BOE 15.6inch 1920×1080 LCD DISPLAY

NV156FHM-NX2 BOE 15.6inch 1920×1080 LCD DISPLAY

NV156FHM-NX2

15.6"
1920(RGB)×1080, FHD 141PPI
250 cd/m² (Typ.)
800:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED [10S4P] , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector
a-Si TFT-LCD, LCM
nv156qum-n81     15.6"   tft      screen     for     BOE

nv156qum-n81 15.6" tft screen for BOE

nv156qum-n81

15.6"
3840(RGB)×2160, UHD 282PPI
360 cd/m² (Typ.)
1300:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED [9S8P] , 15K hours , With LED Driver
eDP (4 Lanes) , HBR2 (5.4G/lane) , 40 pins Connector
a-Si TFT-LCD, LCM
NV156FHM-T00 is a 15.6" a-Si TFT-LCD, LCM Display screen Product from BOE.According to BOE's product specification sheet,NV156FHM-T00 display has a resolution of 1920(RGB)×1080, FHD 141PPI, Contrast Ratio is 800 : 1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is 10S4P WLED , 15K hours , With LED Driver,Signal Interface is eDP (2 Lanes) , 40 pins Connector,Brightness is 250 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NV156FHM-T00 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
