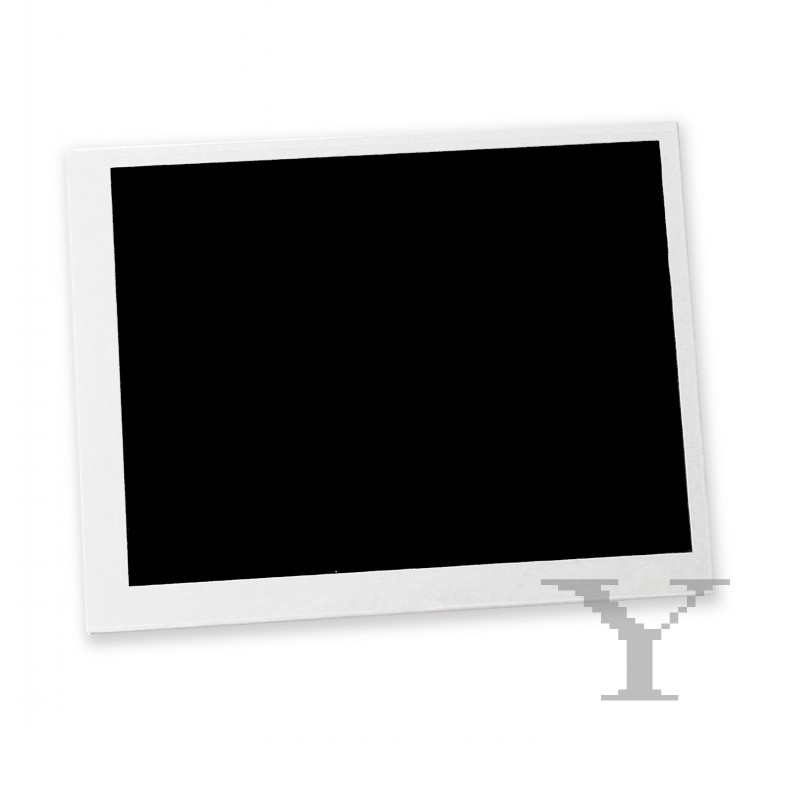

TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel
TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel
Price: $70.00
$320.00/ piece
Add to cart
TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel
TX14D24VM1BPA KOE
TX14D24VM1BPA KOE

TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel

Price: $70.00
$320.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel

Product Information Product Specifications
Model:
TX14D24VM1BPA
Brand:
KOE
Application:
Industrial
Size:
5.7"
Resolution:
320(RGB)×240, QVGA 70PPI
Brightness:
360 cd/m² (Typ.)
Contrast Ratio:
600 : 1 (Min.) (TM)
Viewing Angle:
60/60/75/55(Typ.)(CR≥10)
Lamp Type:
3S5PWLED, 50K hours, With LED Driver
Signal Interface:
ParallelRGB(1ch,6-bit),40pinsConnector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
115.2×86.4 mm (H×V)
Outline:
167×109×11.2 mm (H×V×D)
Storage Temp:
-30 ~ 80 °C
Operating Temp:
-20 ~ 70 °C
Support Color:
262K, 60% NTSC
Pixel Format:
RGB Vertical Stripe
Active Area:
115.2(W)×86.4(H) mm
Bezel Opening:
-
Outline size:
167(W)×109(H)×11.2(D) mm
Surface:
Antiglare,Hardcoating(3H) Luminance
Response Time:
45 (Typ.)(Tr+Td) ms
Best View on:
12o'clock
Work Mode:
TN, Normally White, Transmissive
Display Colors:
262K60%NTSC
Weight:
220g(Typ.)
Frequency:
60Hz
Touchscreen:
4-wire Resistive Touch
Signal Type:
ParallelRGB(1ch,6-bit),40pinsConnector
Voltage Supply:
3.3V(Typ.)
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
67
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel

KOE TX14D24VM1BPA is a 5.7-inch QVGA built-in resistive touch wide temperature industrial-grade TFT-LCD module launched by KOE Co., Ltd. (formerly Hitachi Display Business), adopting Hitachi's COG (Chip On Glass) technology for extremely high integration and reliability. This product adopts a 4:3 standard square screen ratio design with native 320(RGB)×240 QVGA resolution and 70PPI pixel density. It features 360cd/m² typical brightness and 600:1 high contrast ratio, supporting a wide operating temperature range of -20°C to 70°C, and passing 2.0G vibration test and 50G shock test, specially designed for harsh industrial environments.


TX14D24VM1BPA adopts a 3S5P WLED edge-lit backlight system with built-in LED driver circuit, no additional backlight driver board required, and the backlight life is up to 50,000 hours. The signal interface is a 40-pin single-channel 6-bit parallel RGB interface supporting 262K color display. It has a built-in 4-wire resistive touch screen, and the surface is treated with 3H hardness anti-glare matte coating. With an overall thickness of only 10.7mm and a weight of about 220g, its ultra-thin and lightweight design makes it easy to integrate into industrial equipment with limited space. This model is still in mass production and is an ideal display solution for industrial control, medical equipment, automotive electronics and other fields.


TX14D24VM1BPA KOE lcd display panel Highlights:

Built-in resistive touch screen: Integrated 4-wire resistive touch screen, no need to purchase and assemble touch components separately, simplifying system design and reducing costs

Built-in LED driver circuit: Integrated WLED backlight driver, only 3.3V single power supply required for normal operation, greatly simplifying power supply design

High-level vibration and shock resistance: Passed 2.0G vibration test and 50G shock test, perfectly adapting to strong vibration environments such as construction machinery and special vehicles

Wide temperature industrial design: Operating temperature range from -20°C to 70°C, adapting to various industrial environment temperature changes

COG high integration technology: Adopts Hitachi's COG chip-on-glass integration technology, small size, light weight and high reliability, suitable for embedded devices with limited space


TX14D24VM1BPA KOE lcd display panel Specification:


ParameterSpecification
Part NumberTX14D24VM1BPA
BrandKOE Co., Ltd. (Formerly Hitachi Display)
Screen Size5.7 inch
Panel Typea-Si TFT-LCD, Liquid Crystal Module (LCM)
Resolution320(RGB)×240 [QVGA]
Pixel Density70 PPI
Pixel FormatRGB Vertical Stripe
Pixel Pitch0.360×0.360 (H×V) mm
Active Area115.2(W)×86.4(H) mm
Bezel Opening120.0(W)×91.0(H) mm
Brightness360 cd/m² (Typical)
Contrast Ratio600:1 (Minimum, Transmissive)
Color Depth262K (6-bit)
Color Gamut60% NTSC (CIE1931)
Backlight TypeWLED, 3S5P, edge-lit, integrated driver
Backlight Life50,000 hours (Typical)
Interface TypeParallel RGB (1 ch, 6-bit), 40 pins FPC connector
Optical ModeTN, Normally White, Transmissive
Best View Direction12 o'clock (Contrast Peak) / 6 o'clock (No Image Inversion)
Viewing Angle60°/60°/75°/55° (L/R/U/D, CR≥10)
Response Time45 ms (Tr+Td, Typical)
Refresh Rate60Hz
Input Voltage3.3V (Typical, shared by LCD and backlight)
Power Consumption380mW (LCD) / 1030mW (Backlight)
Operating Temperature-20°C ~ +70°C
Storage Temperature-30°C ~ +80°C
Vibration Rating2.0G (19.6 m/s², Non-operating)
Shock Rating50G (490 m/s², Non-operating)
Surface TreatmentMatte, 3H hardness anti-glare coating
Mechanical Dimensions167.0(W)×109.0(H)×10.7(D) mm (Typical)
WeightApproximately 220g (Typical)
Production StatusActive
Touch FunctionBuilt-in 4-wire resistive touch screen (Film on Glass)
RoHS ComplianceYes


TX14D24VM1BPA KOE lcd display panel Applications

Industrial Automation: PLC HMI, industrial robot teach pendants, production line status displays, small instruments and meters

Medical Equipment: Portable medical instruments, medical monitoring devices, diagnostic equipment displays, laboratory analytical instruments

Automotive Electronics: In-vehicle navigation systems, in-vehicle entertainment terminals, special vehicle dashboards, construction machinery display terminals

Test and Measurement: Handheld multimeters, oscilloscopes, signal generators, data acquisition terminals

Other Applications: POS terminals, access control systems, smart home control panels, portable industrial terminals


FAQ:

Q1: Is the touch function of TX14D24VM1BPA built-in?

A1: Yes, this screen has a built-in 4-wire resistive touch screen (Film on Glass structure), no need to purchase and assemble touch components separately, plug and play.

Q2: Does this screen require an additional backlight driver board?

A2: No, TX14D24VM1BPA has a built-in WLED backlight driver circuit, only 3.3V single power supply is required to power both the LCD and backlight, simplifying system integration.

Q3: What is the interface type of this screen?

A3: TX14D24VM1BPA adopts a 40-pin single-channel 6-bit parallel RGB interface, an industry universal standard, compatible with most industrial control motherboards.

Q4: Is the product an original KOE genuine product?

A4: Yes, all TX14D24VM1BPA we sell are original genuine products manufactured by KOE Co., Ltd., with 12 months warranty and perfect after-sales service.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel

TX14D24VM1BPA KOE 5.7 inch 320*240 lcd display panel

TX14D24VM1BPA

5.7"
320(RGB)×240, QVGA 70PPI
360 cd/m² (Typ.)
600 : 1 (Min.) (TM)
60/60/75/55(Typ.)(CR≥10)
3S5PWLED, 50K hours, With LED Driver
ParallelRGB(1ch,6-bit),40pinsConnector
a-Si TFT-LCD, LCM
 TX14D17VM1BPB HITACHI 5.7 inch 640*480 lcd display panel

 TX14D17VM1BPB HITACHI 5.7 inch 640*480 lcd display panel

 TX14D17VM1BPB

5.7"
640(RGB)×480, VGA, 4:3
280 cd/m² (Typ.)
350:1 (Typ.) (TM)
70/70/70/70 (Typ.)(CR≥5)
3S7P WLED, 40K hrs, Without Driver
CMOS (1 ch, 6-bit), 40 pins Connector
a-Si TFT-LCD, LCM
TX14D24VM1BPA is a 5.7" a-Si TFT-LCD, LCM Display screen Product from KOE.According to KOE's product specification sheet,TX14D24VM1BPA display has a resolution of 320(RGB)×240, QVGA 70PPI, Contrast Ratio is 600 : 1 (Min.) (TM),Viewing Angle is 60/60/75/55(Typ.)(CR≥10),Lamp Type is 3S5PWLED, 50K hours, With LED Driver,Signal Interface is ParallelRGB(1ch,6-bit),40pinsConnector,Brightness is 360 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TX14D24VM1BPA after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
