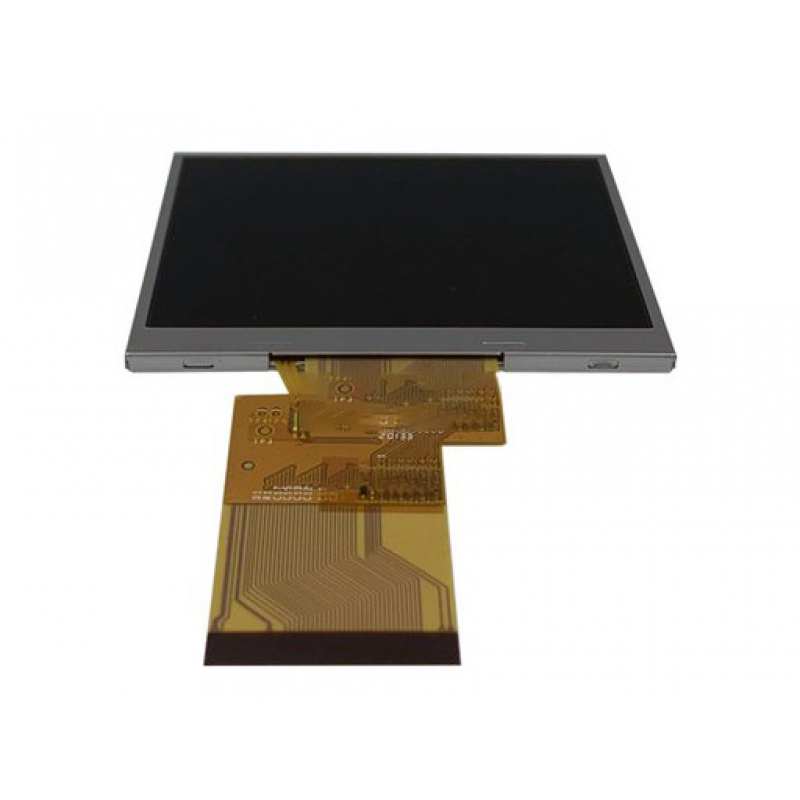

TM035KDGP01 TIANMA 3.5inch 320*240 LCD DISPLAY

TM035KDGP01 TIANMA 3.5inch 320*240 LCD DISPLAY

Name: TM035KDGP01 TIANMA 3.5inch 320*240 LCD DISPLAY
Brand: TIANMA
Price: 30.0 USD

Price: $35.00

$30.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

TM035KDGP01 TIANMA 3.5inch 320*240 LCD DISPLAY

Product Information Product Specifications

Model:

TM035KDGP01

Brand:

TIANMA

Application:

Industrial

Size:

3.5"

Resolution:

320(RGB)×240, QVGA 115PPI

Brightness:

350 cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Viewing Angle:

80/80/780/80 (Typ.)(CR≥10)

Lamp Type:

6S1P WLED , 20K hours , Without Driver

Signal Interface:

Parallel RGB (1 ch, 8-bit) + SPI , 54 pins FPC

Panel Type:

a-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Active Area:

70.08(W)×52.56(H) mm

Bezel Opening:

72.68(W)×55.16(H) mm

Outline size:

76.9(W)×63.9(H)×3.45(D) mm

Surface:

Hardcoating

Response Time:

25 (Typ.)(Tr+Td)

Best View on:

Symmetry

Work Mode:

Normally Black, Transmissive

Display Colors:

16.7M60%NTSC

Weight:

Frequency:

Touchscreen:

Without

Signal Type:

ParallelRGB(1ch,8-bit)+SPI,54pinsFPC

Voltage Supply:

3.3V(Typ.)

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

0.500 KG

Overview

Model:	TM035KDGP01	Panel-type:	a-Si TFT-LCD, LCM
Size:	3.5"	Resolution:	320(RGB)×240, QVGA, 115PPI
Display Area:	70.08(W)×52.56(H) mm	Outline Size:	76.9(W)×63.9(H)×3.45(D) mm
Brightness:	350 cd/m² (Typ.)	Contrast Ratio:	800 : 1 (Typ.)
Viewing Angle:	80/80/80/80(Typ.)(CR≥10)	Display mode :	Normally black display, transmissive
Support Color:	16.7M, 60% NTSC	Response Time:	25(Typ.)(Tr+Td) ms
Signal Interface:	Parallel RGB (1 ch, 8-bit) + SPI , FPC , 54 pins	Backlight type:	6S1P WLED ,20K hours
Touch Screen:	Without	Operating Temp.:	-30 ~80 °C

TM035KDGP01 is a 3.5" a-Si TFT-LCD, LCM Display screen Product from TIANMA.According to TIANMA's product specification sheet,TM035KDGP01 display has a resolution of 320(RGB)×240, QVGA 115PPI, Contrast Ratio is 800:1 (Typ.) (TM),Viewing Angle is 80/80/780/80 (Typ.)(CR≥10),Lamp Type is 6S1P WLED , 20K hours , Without Driver,Signal Interface is Parallel RGB (1 ch, 8-bit) + SPI , 54 pins FPC,Brightness is 350 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TM035KDGP01 after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
