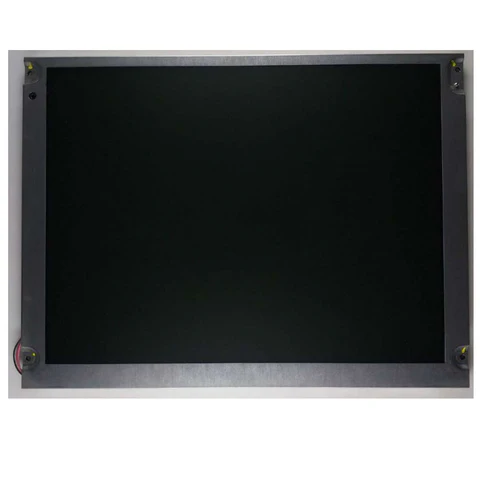

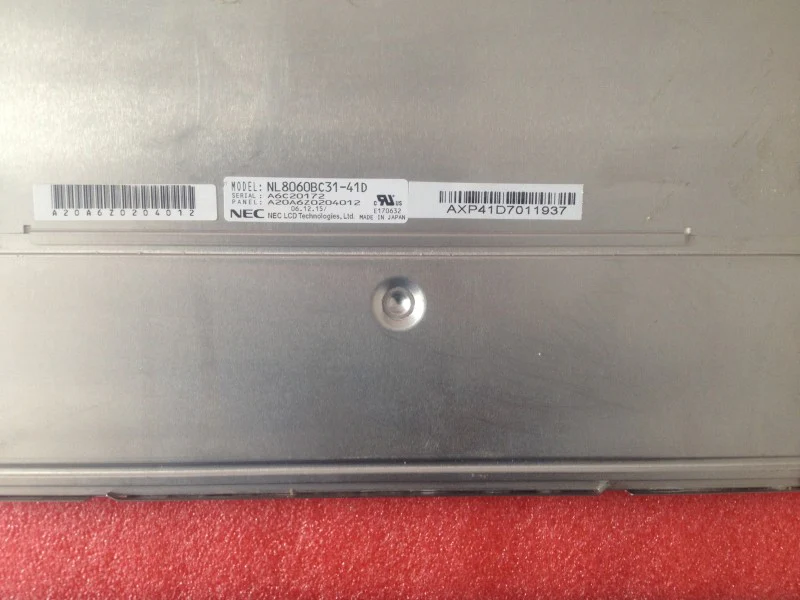

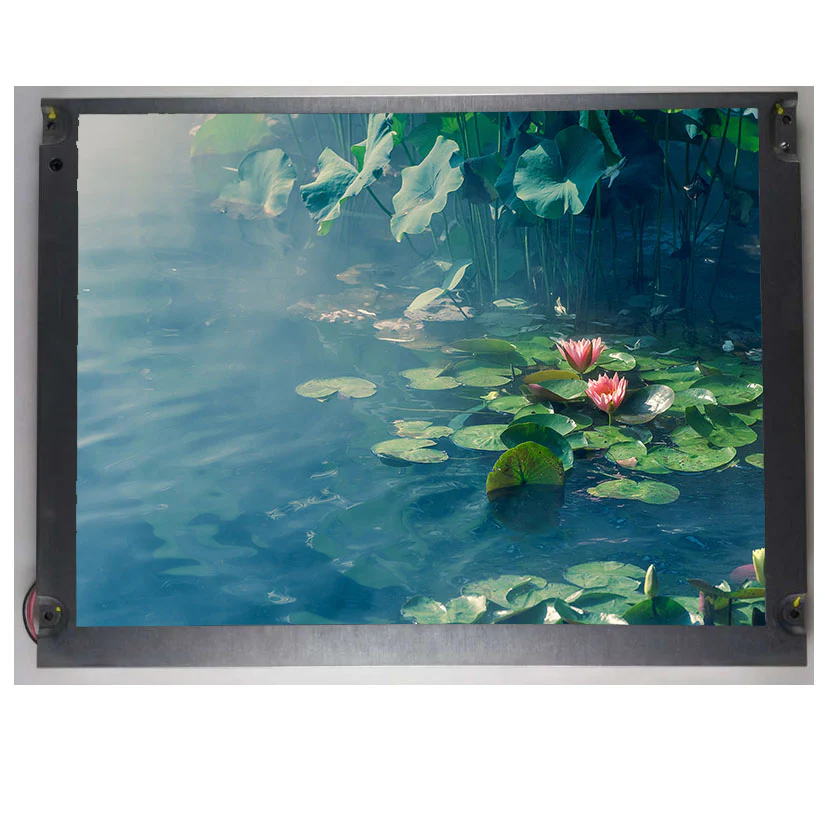

NL8060BC31-41D 12.1 inch CCFL Display LCD 800*600 lcd screen

Price: £70.22

£66.32/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

Product Information Product Specifications

Model:

NL8060BC31-41D

Brand:

NEC

Application:

Industrial

Size:

12.1"

Resolution:

800(RGB)×600, SVGA 82PPI

Brightness:

400 cd/m² (Typ.)

Contrast Ratio:

600:1 (Typ.) (TM)

Viewing Angle:

80/80/80/60 (Typ.)(CR≥10)

Lamp Type:

CCFL [2 pcs] , W/O Driver

Signal Interface:

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Panel Type:

a-Si TFT-LCD, LCM

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.500 KG

Overview

Product display

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

NL8060BC31-41D 12.1 inch CCFL Display LCD 800*600 lcd screen

NL8060BC31-41D

12.1"

800(RGB)×600, SVGA 82PPI

400 cd/m² (Typ.)

600:1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

CCFL [2 pcs] , W/O Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

12.1 inch screen NL8060BC31-42 lcd module 800*600 panel industrial lcd display

NL8060BC31-42

12.1"

800(RGB)×600, SVGA 82PPI

400 cd/m² (Typ.)

600:1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

2 pcs CCFL , Without Driver

CMOS (1 ch, 6-bit) , 41 pins Connector

a-Si TFT-LCD, LCM

12.1 inch screen NL8060BC31-47D lcd module 800*600 lcd display panel

NL8060BC31-47D

12.1"

800(RGB)×600, SVGA 82PPI

450 cd/m² (Typ.)

900:1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

3 strings WLED , 70K hours , Without Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

12.1 inch display lcd NL8060BC31-41E 800*600 lcd screen CCFL

NL8060BC31-41E

12.1"

800(RGB)×600, SVGA 82PPI

400 cd/m² (Typ.)

600 : 1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

2 pcs CCFL , No Driver

LVDS (1 ch, 6/8-bit) , Connector 20 pins

a-Si TFT-LCD, LCM
