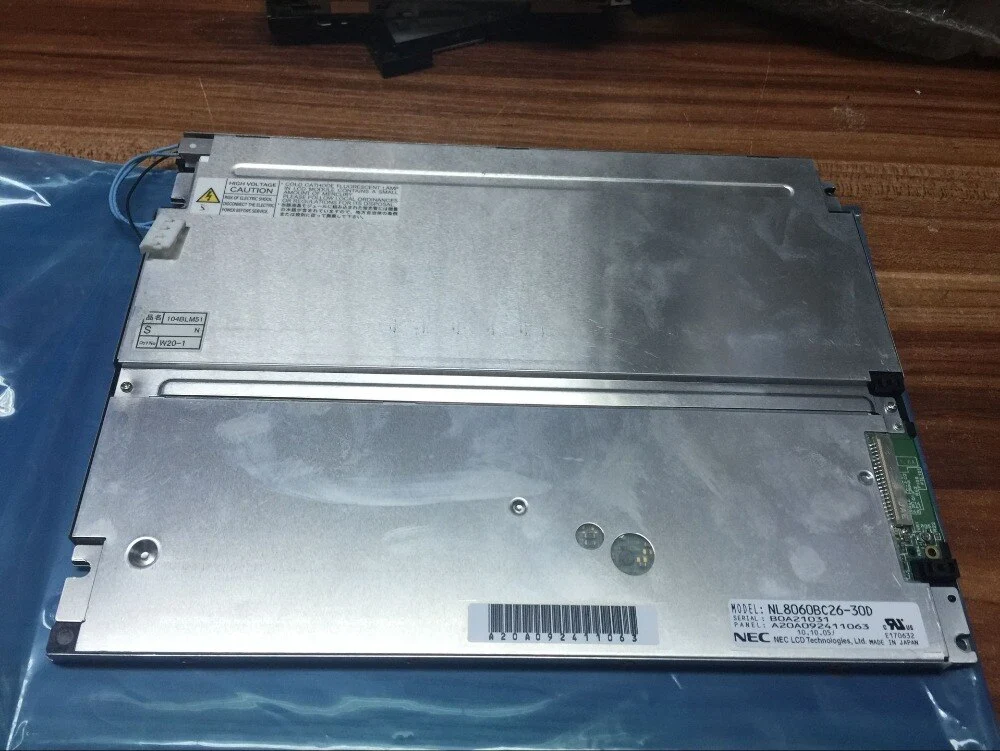

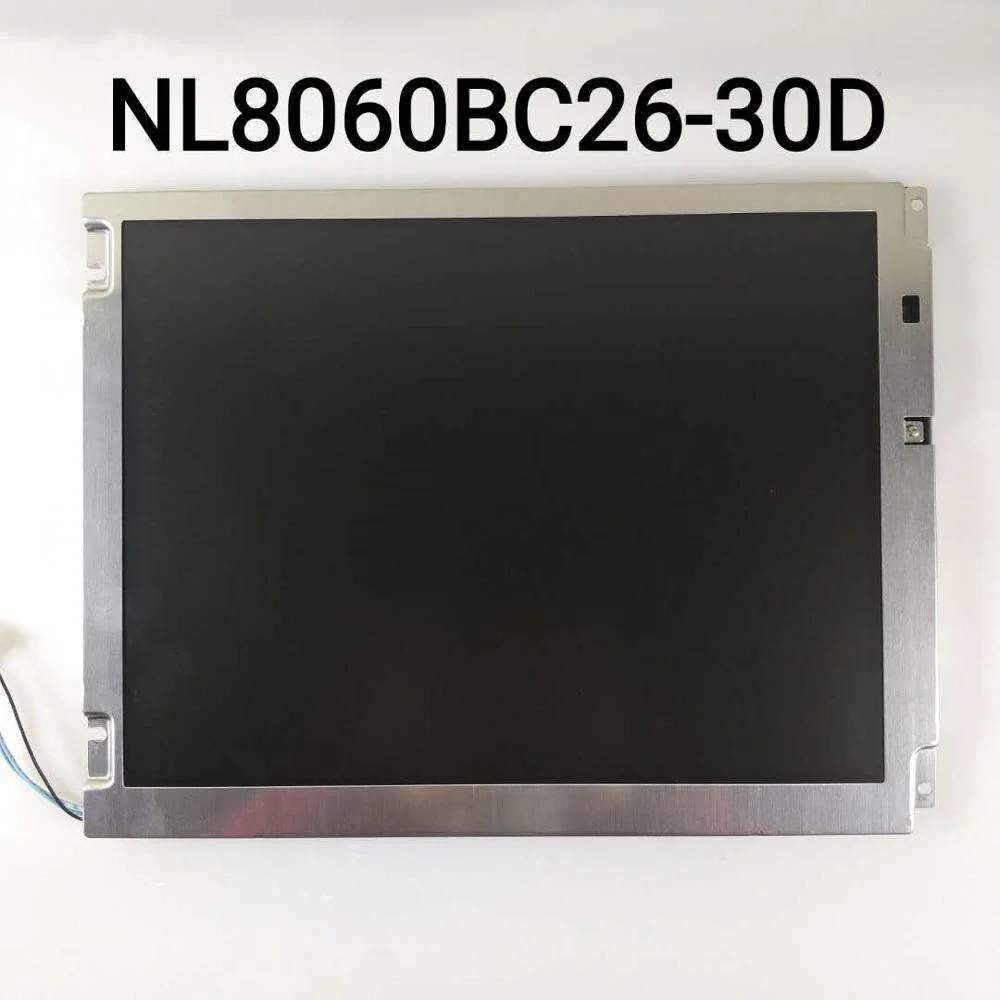

NEC NL8060BC26-30D 10.4-Inch 800×600 TFT LCD Panel Industrial Display
NEC NL8060BC26-30D 10.4-Inch 800×600 TFT LCD Panel Industrial Display
Price: $185.00
$180.00/ piece
Add to cart
NL8060BC26-30D
NL8060BC26-30D
NL8060BC26-30D
NL8060BC26-30D

NEC NL8060BC26-30D 10.4-Inch 800×600 TFT LCD Panel Industrial Display

Price: $185.00
$180.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

NEC NL8060BC26-30D 10.4-Inch 800×600 TFT LCD Panel Industrial Display

Product Information Product Specifications
Model:
NL8060BC26-30D
Brand:
NEC
Application:
Industrial
Size:
10.4"
Resolution:
800(RGB)×600, SVGA 96PPI
Brightness:
400 cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Viewing Angle:
80/80/80/80 (Typ.)(CR≥10)
Lamp Type:
2 pcs CCFL , 50K hours , No Driver
Signal Interface:
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
95
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

NEC NL8060BC26-30D 10.4-Inch Industrial TFT LCD Display Module


The NEC NL8060BC26-30D is a 10.4-inch industrial TFT LCD display module manufactured by NEC LCD Technologies, designed for industrial computers, factory automation equipment, HMI systems, medical instruments, test equipment, and legacy LCD replacement applications.

Featuring 800 × 600 SVGA resolution, a-Si TFT active matrix technology, TN Normally White transmissive display mode, and LVDS 1-channel interface, the NL8060BC26-30D delivers stable image quality, high brightness, and long-term reliability for industrial applications.

With its 400 cd/m² brightness, 1000:1 contrast ratio, wide viewing angle, and wide operating temperature range from -20°C to +70°C, this NEC LCD module is suitable for demanding industrial environments requiring durable display solutions.


Key Features

Original NEC industrial TFT LCD panel

10.4-inch display size

Resolution: 800 × 600 pixels

SVGA display format

4:3 aspect ratio

a-Si TFT active matrix technology

TN Normally White transmissive mode

262K / 16.7M display colors

RGB vertical stripe pixel arrangement

LVDS 1-channel interface

6/8-bit selectable color input

20-pin LVDS connector

400 cd/m² high brightness

1000:1 contrast ratio

80/80/80/80 wide viewing angle

Dual CCFL backlight system

External inverter required

Matte surface with 3H hard coating

180-degree reverse scan function

Landscape orientation

Without touchscreen

Industrial-grade operating temperature range


Technical Specifications

SpecificationDetails
ModelNL8060BC26-30D
ManufacturerNEC
Display Size10.4 Inch
LCD Typea-Si TFT-LCD
Resolution800 × 600 pixels
Display FormatSVGA
Aspect Ratio4:3
Display ModeTN Normally White Transmissive
Display Colors262K / 16.7M
Pixel ArrangementRGB Vertical Stripe
Active Area211.2 × 158.4 mm
Pixel Pitch0.264 × 0.264 mm
Brightness400 cd/m² (Typ.)
Contrast Ratio1000:1 (Typ.)
Viewing Angle80/80/80/80 (L/R/U/D)
Response Time3/15 ms (Typ.)
Refresh Rate60Hz
InterfaceLVDS
Interface Type1 Channel 6/8-bit
Connector20-pin
Input Voltage3.3V
Backlight TypeCCFL
Backlight Quantity2 Lamps

Typical Applications

NEC NL8060BC26-30D is suitable for:

Industrial PC displays

Factory automation systems

PLC control panels

HMI operator interfaces

CNC machine displays

Medical equipment monitors

Measurement instruments

Testing equipment

Embedded industrial computers

Transportation control systems

Legacy equipment repair projects

Industrial LCD replacement applications


Why Choose NEC NL8060BC26-30D?

Original NEC industrial LCD quality

Classic 10.4-inch SVGA display format

High brightness 400 cd/m² output

Reliable LVDS digital interface

Wide viewing angle performance

Long-life CCFL backlight structure

Wide operating temperature capability

Suitable for harsh industrial environments

Excellent replacement solution for discontinued LCD modules

Ideal for automation maintenance and repair projects

Supports OEM industrial LCD replacement requirements


Quality Assurance

Each NEC NL8060BC26-30D LCD module can be tested with:

Power-on display testing

Pixel defect inspection

Brightness uniformity testing

LVDS signal verification

CCFL backlight inspection

Connector inspection

Voltage testing

Appearance quality inspection

Anti-static protective packaging

Professional industrial LCD quality control


FAQ

What is NEC NL8060BC26-30D?

NEC NL8060BC26-30D is a 10.4-inch industrial TFT LCD module featuring SVGA resolution, LVDS interface, CCFL backlight, and industrial-grade reliability.

What is the resolution of NL8060BC26-30D?

It features 800 × 600 SVGA resolution with a classic 4:3 aspect ratio.

What interface does NL8060BC26-30D use?

The panel uses a 1-channel LVDS interface with a 20-pin connector and supports 6/8-bit input.

What backlight does NL8060BC26-30D use?

It uses a dual CCFL backlight system with approximately 50,000-hour lamp lifetime and requires an external inverter.

Is NL8060BC26-30D suitable for industrial applications?

Yes. Its high brightness, wide temperature range, LVDS interface, and robust TFT structure make it suitable for industrial automation, HMI, and embedded systems.

Does NL8060BC26-30D include touchscreen?

No. The standard NL8060BC26-30D is a display-only TFT LCD module without touchscreen.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
NEC NL8060BC26-30D 10.4-Inch 800×600 TFT LCD Panel Industrial Display

NEC NL8060BC26-30D 10.4-Inch 800×600 TFT LCD Panel Industrial Display

NL8060BC26-30D

10.4"
800(RGB)×600, SVGA 96PPI
400 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
80/80/80/80 (Typ.)(CR≥10)
2 pcs CCFL , 50K hours , No Driver
LVDS (1 ch, 6/8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM
NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C NEC 12.1 inch 800*600 tft lcd module

NL8060BC31-51C

12.1"
800(RGB)×600, 4:3, SVGA
900 cd/m² (Typ.)
1000:1 (Typ.) (TM)
80/80/80/80 (Typ.)(CR≥10)
5 strings WLED, 70K hrs, No Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD, LCM
NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

NL8060BC31-41C NEC 12.1 inch 800*600 lcd display screens

NL8060BC31-41C

12.1"
800(RGB)×600, SVGA, 4:3
550 cd/m² (Typ.)
600:1 (Typ.) (TM)
80/80/80/60 (Typ.)(CR≥10)
2 pcs CCFL, Without Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD, LCM
