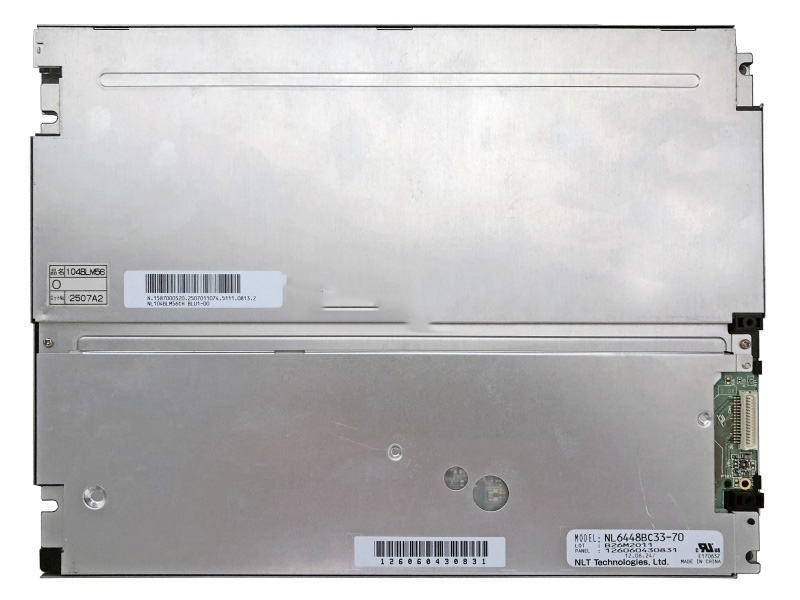

NEC NL6448BC33-70 10.4 Inch Lcd Display Screens ithout touch screen

Price: $190.00

$180.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

Product Information Product Specifications

Model:

NL6448BC33-70

Brand:

NEC

Application:

Industrial

Size:

10.4"

Resolution:

640(RGB)×480, VGA 76PPI

Brightness:

450 cd/m² (Typ.)

Contrast Ratio:

900:1 (Typ.) (TM)

Viewing Angle:

80/80/80/80(Typ.)(CR≥10)

Lamp Type:

WLED [3 strings], 70K hours, W/O Driver

Signal Interface:

CMOS(1ch,6-bit),31pinsConnector

Panel Type:

a-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) mm

Bezel Opening:

215.4(W)×161.8(H) mm

Outline size:

243(H)×185.1(V)×11(D) mm

Surface:

Clear,Hardcoating(3H)

Response Time:

Best View on:

6o'clock

Work Mode:

TN, Normally White, Transmissive

Display Colors:

262K40%NTSC

Weight:

475/500g(Typ./Max.)

Frequency:

60Hz

Touchscreen:

Without

Signal Type:

CMOS(1ch,6-bit),31pinsConnector

Voltage Supply:

3.3/5.0V(Typ.)

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.500 KG

Overview

Product display

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

NEC NL6448BC33-70 10.4 Inch Lcd Display Screens ithout touch screen

NL6448BC33-70

10.4"

640(RGB)×480, VGA 76PPI

450 cd/m² (Typ.)

900:1 (Typ.) (TM)

80/80/80/80(Typ.)(CR≥10)

WLED [3 strings], 70K hours, W/O Driver

CMOS(1ch,6-bit),31pinsConnector

a-Si TFT-LCD, LCM

LCD display NL6448BC33-71D 10.4 inth 640*480 Industrial screen

NL6448BC33-71D

10.4"

640(RGB)×480, VGA 76PPI

450 cd/m² (Typ.)

900:1 (Typ.) (TM)

80/80/80/80 (Typ.)(CR≥10)

WLED [3 strings] , 70K hours , W/O Driver

LVDS (1 ch, 6/8-bit) ,20 pins

a-Si TFT-LCD

NL6448BC33-70K NLT 10.4" a-Si TFT-LCD LCM 640(RGB)×480 VGA 76PPI

NL6448BC33-70K

10.4"

640(RGB)×480, VGA 76PPI

450 cd/m² (Typ.)

900:1 (Typ.) (TM)

80/80/80/80(Typ.)(CR≥10)

WLED [3 strings], 70K hours, W/O Driver

CMOS(1ch,6-bit),31pinsConnector

a-Si TFT-LCD, LCM

NL6448BC33-74H NLT 10.4 inch a-Si TFT-LCD LCM 640(RGB)×480 VGA 76PPI

NL6448BC33-74H

10.4"

640(RGB)×480, VGA 76PPI

450 cd/m² (Typ.)

800:1 (Typ.) (TM)

88/88/88/88(Typ.)(CR≥10)

CCFL [2 pcs], 50K hours, W/O Driver

CMOS(1ch,6-bit),31pinsConnector

a-Si TFT-LCD, LCM
