Цена: ₽27622.55

₽27233.50/ шт

Доставка:

Оплата:

Рассчитать стоимость доставки

Требуется:*

Модель продукта*	Целевая цена	Количество *

Сообщение

Ваши контактные данные:

Дополнительная информация:

Имя: *

Господин.

Госпожа.

1. Котировка с стоимостью доставки?

Email : *

ДА

НЕТ

Телефон:

2. Какой перевозчик вы предпочитаете??

Компания:

	Fedex		UPS		DHL
	TNT		другое

Страна:*

Характеристики Инструкции по заказу Обзор Сравнение продуктов Вопросы и ответы Отзывы

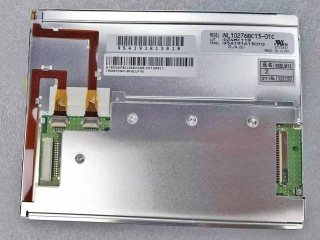

Модель:

NL10276BC13-01C

Бренд:

Применение:

промышленное производство

Размер:

Разрешение:

1024(RGB)×768, XGA 196PPI

Яркость:

650 cd/m² (Typ.)

Контрастное отношение:

500:1 (Typ.) (TM)

Угол обзора:

80/80/80/60 (Typ.)(CR≥10)

Тип лампы:

WLED [6 strings] , 16K hours , W/O Driver

Сигнальная интерфейс:

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Тип панели:

a-Si TFT-LCD, LCM

Качество:

test ok before ship it

RMA 6 month

Paid Sample

Запасы:

China

WorldWide

1-3 Days

1.000 KG

NL10276BC13-01C

1024(RGB)×768, XGA 196PPI

650 cd/m² (Typ.)

500:1 (Typ.) (TM)

80/80/80/60 (Typ.)(CR≥10)

WLED [6 strings] , 16K hours , W/O Driver

LVDS (1 ch, 6/8-bit) , 20 pins Connector

a-Si TFT-LCD, LCM

NL10276BC13-01KA

1024(RGB)×768, XGA 196PPI

490 cd/m² (Typ.)

500:1 (Typ.) (TM)

80/80/80/60(Typ.)(CR≥10)

6 stringsWLED, 13K hours, Without Driver

LVDS(1ch,6/8-bit),20pinsConnector

a-Si TFT-LCD, LCM

NL10276BC13-01JA

1024(RGB)×768, XGA 196PPI

490 (Typ.)(cd/m²)

GoodViewat

6 strings WLED , 13K hours , No Driver

LVDS(1ch,6/8-bit),20pinsConnector

a-Si TFT-LCD, LCM

NL10276BC13-01D

1024(RGB)×768, XGA 196PPI

400 cd/m² (Typ.)

500:1 (Typ.) (TM)

80/80/80/60(Typ.)(CR≥10)

WLED

LVDS(1ch,6/8-bit)Connector

a-Si TFT-LCD, LCM

NL10276BC13-01C is a 6.5" a-Si TFT-LCD, LCM Display screen Product from NEC.According to NEC's product specification sheet,NL10276BC13-01C display has a resolution of 1024(RGB)×768, XGA 196PPI, Contrast Ratio is 500:1 (Typ.) (TM),Viewing Angle is 80/80/80/60 (Typ.)(CR≥10),Lamp Type is WLED [6 strings] , 16K hours , W/O Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 650 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL10276BC13-01C after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.

Вопросы и ответы

Задать вопрос >

Все (5) неклассифицированный (5) упаковка упаковки (0) доставка, доставка (0) Платеж (0) после продажи (0)

What are the physical dimensions of this screen？ What about the mounting hole positions？

The overall outline dimensions （without controller board） are approximately 173.0 （W） × 126.0 （H） × 12.0 （D） mm （slight variations may occur between versions）. It usually features mounting holes on the sides for fixation from the front or rear. For precise mechanical drawing and hole positions， it is recommended to download the official datasheet to ensure correct structural design.

Is this screen discontinued？ Is there a direct replacement model？ What is its lifespan？

The NL10276BC13-01C is a classic early-stage industrial screen. It may be nearing end-of-life （EOL） or discontinued by the original manufacturer. If it's the CCFL backlight version， the lifespan depends mainly on the backlight， approximately 50，000 hours. If it's a later LED version， the lifespan is longer. There may be compatible replacements or refurbished units on the market. If you need new stock， it's advisable to check with suppliers for any recommended successors from NEC （often with the same pinout definition）.

Can it be used outdoors or in high-temperature environments？ What is the operating temperature range？

This is an industrial-grade screen. Its operating temperature range is typically -10°C to +70°C， with a wider storage temperature range. Although the 400 nits brightness is clearly visible indoors or in semi-outdoor environments， if used in direct sunlight outdoors， you may need to consider a higher brightness screen or add a brightness enhancement film.

What is the brightness？ What type of backlight does it have？ Is there a touch screen version？

The typical brightness of this screen is around 650cd/m². It uses a CCFL （Cold Cathode Fluorescent Lamp） backlight （Note： Some very early batches use CCFL； if it‘s a newer batch or a modified version， it might be LED. Please check the physical label）. The original module usually does not come with an integrated touch screen； if touch functionality is required， an external touch panel needs to be added.

What interface does this screen use？ Is it LVDS or TTL？

This NL10276BC13-01C model uses an LVDS （Low-Voltage Differential Signaling） interface. It typically operates as a single-channel 6-bit or 8-bit interface. Please note that it is not compatible with traditional TTL interfaces.
