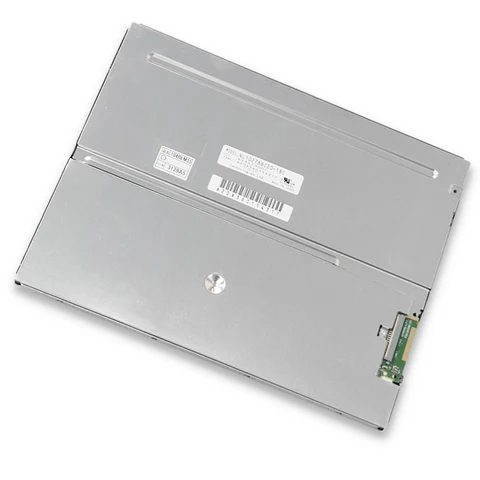

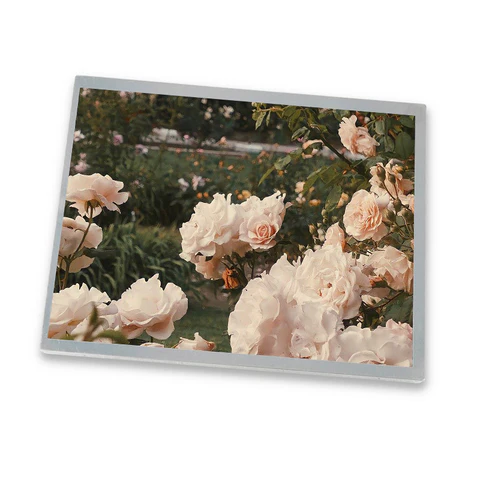

NL10276BC20-18C 10.4 inch LCD panel 1024*768 display module For NEC

NL10276BC20-18C is a 10.4" a-Si TFT-LCD, LCM Display screen Product from NEC.According to NEC's product specification sheet,NL10276BC20-18C display has a resolution of 1024(RGB)×768, XGA 123PPI, Contrast Ratio is 900 : 1 (Typ.) (TM),Viewing Angle is 80/80/80/80 (Typ.)(CR≥10),Lamp Type is WLED [5 strings] , 70K hours , W/O Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 800 cd/m2 (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of NL10276BC20-18C after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
