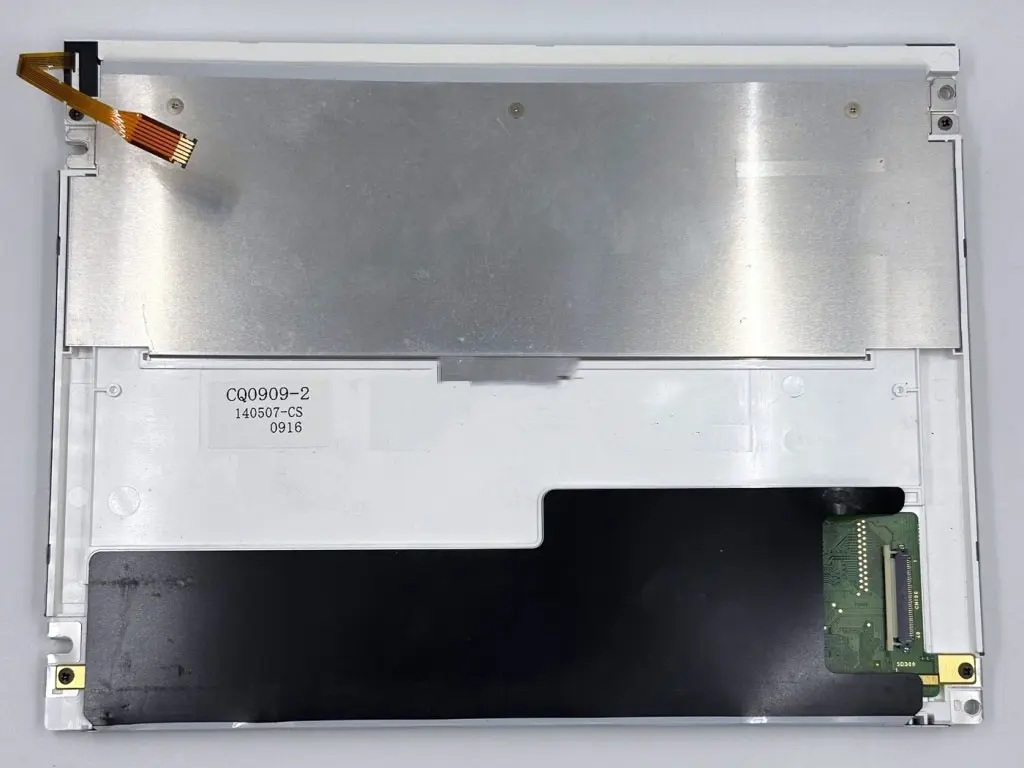

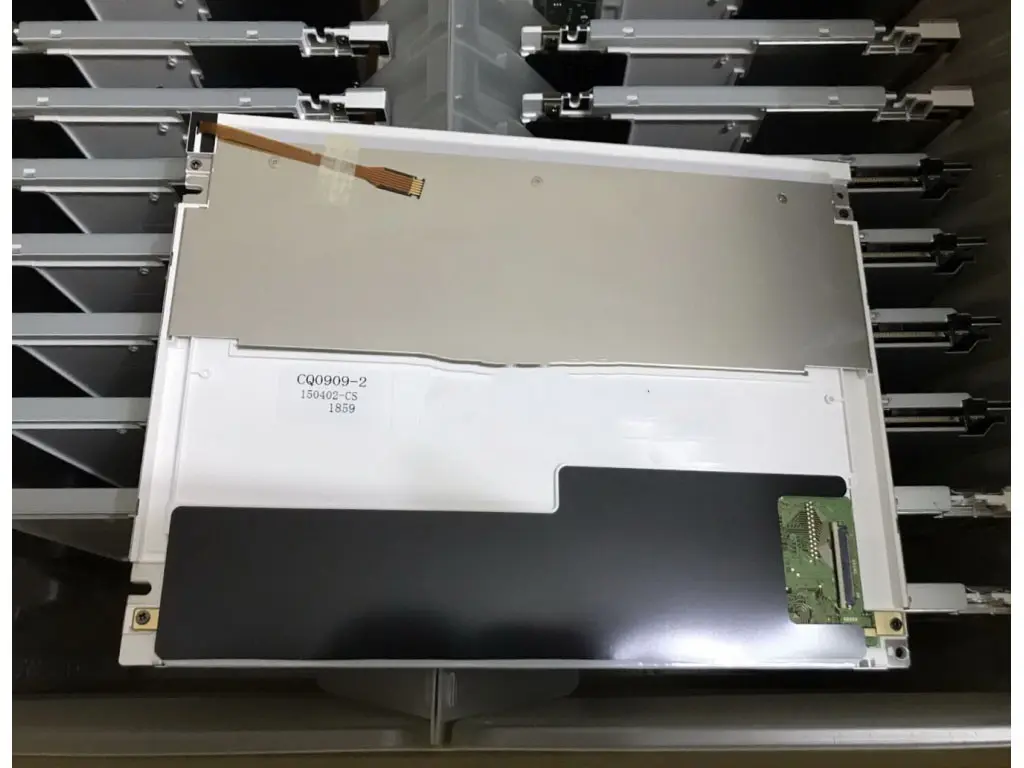

LQ104S1DG35  Sharp 10.4 inch800*600  Industrial panel lcd
LQ104S1DG35 Sharp 10.4 inch800*600 Industrial panel lcd
Price: $195.00
$189.00/ piece
Add to cart
LQ104S1DG35  Sharp 10.4 inch800*600  Industrial panel lcd
LQ104S1DG35
LQ104S1DG35  Sharp Industrial panel lcd
LQ104S1DG35  Sharp Industrial panel lcd
LQ104S1DG35  Sharp Industrial panel lcd
LQ104S1DG35
LQ104S1DG35  Sharp Industrial panel lcd
LQ104S1DG35  Sharp Industrial panel lcd
LQ104S1DG35  Sharp Industrial panel lcd

LQ104S1DG35 Sharp 10.4 inch800*600 Industrial panel lcd

Price: $195.00
$189.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LQ104S1DG35 Sharp 10.4 inch800*600 Industrial panel lcd

Product Information Product Specifications
Model:
LQ104S1DG35
Brand:
SHARP
Application:
Industrial
Size:
10.4"
Resolution:
800*600
Contrast Ratio:
300:1
Viewing Angle:
70/70/50/60
Lamp Type:
WLED
Signal Interface:
CMOS (1 ch, 6-bit) Connector
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60
Outline:
211.2×158.4
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
338
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

LQ104S1DG35  Sharp 10.4 inch800*600  Industrial panel lcd

Sharp LQ104S1DG35 is a cost-effective industrial-grade TFT-LCD display panel launched by Sharp, specifically designed for traditional industrial control systems and equipment upgrade projects. This product adopts TN normally white transmissive display technology, providing 70°/70°/50°/60° viewing angles to meet basic multi-angle observation requirements in industrial sites.


It is equipped with 800×600 SVGA standard resolution and 4:3 classic display ratio, with 96PPI pixel density, delivering clear and stable images. The 350cd/m² standard brightness and 300:1 contrast ratio design meet the display requirements of indoor industrial environments. It features an edge-lit WLED backlight system, which is more energy-efficient and has a longer lifespan than traditional CCFL backlights, with a backlight life of up to 30,000 hours.


With a wide operating temperature range of -20℃~+70℃ and 1.5G industrial-grade vibration resistance, it can operate stably in various industrial environments. It adopts single-channel CMOS (TTL) interface with a 41-pin standard connector, supporting 6-bit signal input, and is fully compatible with classic models such as LQ104S1DG21, making it an ideal upgrade replacement for old CCFL backlight screens.


LQ104S1DG35  Sharp   Industrial panel lcd Highlights:

Classic 4:3 ratio: 800×600 SVGA resolution, perfectly compatible with traditional industrial control systems and equipment upgrades

Energy-efficient WLED backlight: Edge-lit white LED backlight, more energy-efficient and longer lifespan than traditional CCFL

Wide temperature operating range: -20℃~+70℃ temperature adaptability, meeting the use requirements of various industrial environments

Industrial-grade reliability: 1.5G vibration resistance, passed strict industrial environment tests, stable and reliable operation

Standard CMOS interface: 41-pin single-channel TTL interface, fully compatible with classic models such as LQ104S1DG21

Anti-glare surface treatment: Matte 3H hardness treatment, reduces reflections and scratches, improves durability

Cost-effective upgrade solution: Directly replace old CCFL backlight screens without modifying hardware design


LQ104S1DG35  Sharp   Industrial panel lcd Specifications

Parameter CategoryDetailed Specifications
Basic Information
BrandSharp
ModelLQ104S1DG35
Product SeriesLQ104S1DG
Panel Typea-Si TFT-LCD, LCM
Display Size10.4 inch (diagonal)
Aspect Ratio4:3
Display Specifications
Resolution800(RGB)×600 (SVGA)
Pixel Density96PPI
Pixel Pitch0.264×0.264mm
Pixel ArrangementRGB Vertical Stripe
Display Colors262K (6-bit)
Brightness350cd/m² (Typ.)
Contrast Ratio300:1 (Typ.) (TM)
Display ModeTN, Normally White, Transmissive
Best Viewing Angle6 o'clock
Response Time10/25ms (Tr/Td, Typ.)
Viewing Angle70°/70°/50°/60°(L/R/U/D, CR≥10)
Refresh Rate60Hz
Backlight Specifications
Backlight TypeWLED (White LED)
Backlight ConfigurationEdge-lit
Backlight DriverNo integrated driver (external required)
Backlight Life≥30,000 hours
Interface Specifications
Signal InterfaceCMOS (TTL) (1 channel, 6-bit)
Connector Pins41 pins
Input Voltage3.3V (Typ.)
Typical Power ConsumptionApprox. 5.5W (including backlight)
Mechanical Specifications
Active Area211.2(W)×158.4(H)mm
Outline Dimensions246.5(W)×179.4(H)×12.5(D)mm
Surface TreatmentMatte, Anti-glare, 3H Hardness
Touch FunctionNone
WeightApprox. 500g (Typ.)
Environmental Specifications
Operating Temperature-20℃ ~ +70℃
Storage Temperature-30℃ ~ +80℃
Operating Humidity10%~90%RH (non-condensing)
Vibration Level1.5G (14.7m/s²)
Certifications & Compliance
RoHSCompliant
Product CertificationsCE, FCC


LQ104S1DG35  Sharp   Industrial panel lcd Applications:

Industrial automation equipment: PLC control systems, CNC machine tools, industrial robots, automated production lines

Injection molding machine equipment: Injection molding machine operation panels, extruders, blow molding machines and other plastic processing equipment

Medical equipment: Portable medical instruments, monitors, diagnostic equipment, infusion pump display terminals

Transportation: In-vehicle navigation, marine displays, engineering machinery, rail transit equipment

Energy and power: Power monitoring systems, substation equipment, wind power generation, solar power control

Security monitoring: Video surveillance displays, access control systems, building intercom, fire alarm equipment

Test and measurement: Oscilloscopes, signal generators, spectrum analyzers, industrial testing instruments

Textile machinery: Human-machine interaction for spinning machines, weaving machines, printing and dyeing equipment


FAQ:

Q: What is the difference between LQ104S1DG35 and LQ104S1DG21?

A: LQ104S1DG35 uses WLED backlight, while LQ104S1DG21 uses CCFL backlight. Other main parameters are basically the same, and the interface and size are fully compatible and can be directly replaced.

Q: Does this display have an integrated backlight driver?

A: No, LQ104S1DG35 requires an external backlight driver board to work properly. We can provide a matching driver solution.

Q: Does this screen support touch function?

A: The standard LQ104S1DG35 does not have touch function. If you need a touch version, you can choose a matching 4-wire resistive touch screen for integration.




Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
LQ104S1DG35  Sharp 10.4 inch800*600  Industrial panel lcd

LQ104S1DG35 Sharp 10.4 inch800*600 Industrial panel lcd

LQ104S1DG35

10.4"
800*600
300:1
70/70/50/60
WLED
CMOS (1 ch, 6-bit) Connector
a-Si TFT-LCD, LCM
LQ104V1DG5B Sharp  10.4 inch lcd panel

LQ104V1DG5B Sharp 10.4 inch lcd panel

LQ104V1DG5B

10.4"
640*480
350
350:1
70/70/40/70
CCFL
31 pins
a-Si TFT-LCD, LCM
LQ104S1DG35 is a 10.4" a-Si TFT-LCD, LCM Display screen Product from SHARP.According to SHARP's product specification sheet,LQ104S1DG35 display has a resolution of 800*600, Contrast Ratio is 300:1,Viewing Angle is 70/70/50/60,Lamp Type is WLED,Signal Interface is CMOS (1 ch, 6-bit) Connector,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LQ104S1DG35 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
