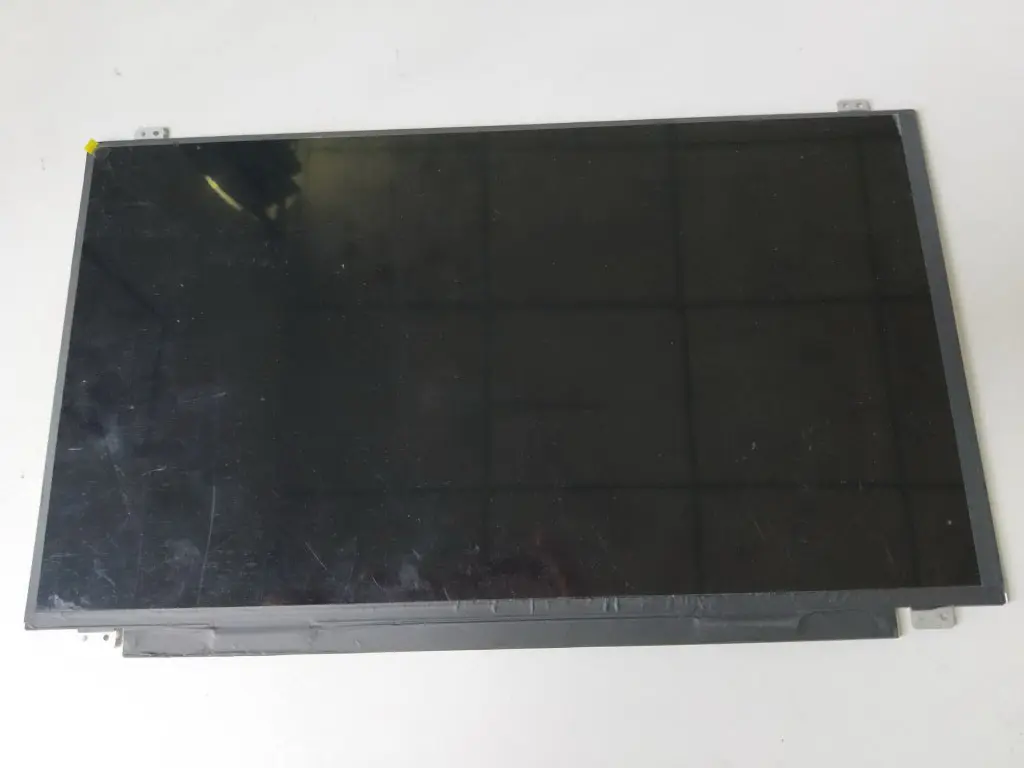

LM156LF1L02 PANDA  15.6 Inch Low Force Touch Panel LCD Module
LM156LF1L02 PANDA 15.6 Inch Low Force Touch Panel LCD Module
Price: $85.00
$80.00/ piece
Add to cart
LM156LF1L02
LM156LF1L02
LM156LF1L02
LM156LF1L02

LM156LF1L02 PANDA 15.6 Inch Low Force Touch Panel LCD Module

Price: $85.00
$80.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

LM156LF1L02 PANDA 15.6 Inch Low Force Touch Panel LCD Module

Product Information Product Specifications
Model:
LM156LF1L02
Application:
Industrial
Size:
15.6"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
300
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview
LM156LF1L02 is an ultra-thin low-power IGZO FFS LCD bare panel developed by Panda, widely used for slim notebooks, portable industrial control terminals, testing equipment, and customized touch HMI display assemblies.
Adopting IGZO oxide drive technology, it features ultra-wide symmetric 89° four-direction viewing angle without color shift or grayscale inversion, far superior to traditional TN panels for multi-operator observation scenarios. Native FHD high resolution delivers delicate details for industrial drawings, multi-column parameter tables and real-time production curves. Low-power IGZO material reduces static power consumption, ideal for battery-powered portable devices.
ParameterTechnical Spec
Model NumberLM156LF1L02 (Internal code NCP000B)
ManufacturerPANDA (CEC Nanjing Panda)
Diagonal Size15.6 inches
Native Resolution1920 × 1080 FHD, 16:9, 141 PPI
LCD TechnologyIGZO Oxide FFS, Transmissive, Normally Black
Pixel ArrangementRGB Vertical Stripe
Color Performance6-bit + FRC, 262K colors, 45% NTSC gamut
Signal Interface2-lane eDP 1.2, 30Pin bottom FPC, 3.3V logic
BacklightEdge WLED, integrated onboard LED driver circuit
Backlight Lifespan10,000 hours typical
Typical Brightness250 cd/m²
Typical Contrast Ratio1000:1
Viewing Angle (CR≥10, L/R/U/D)89° / 89° / 89° / 89° full symmetric wide angle
Total Response Time (Tr+Tf)25 ms typical
Refresh Rate60 Hz
Pixel Pitch0.17925 × 0.17925 mm
Active Display Area (AA)344.16 mm (W) × 193.59 mm (H)
Overall Outline Dimension359.5 mm (W) × 223.8 mm (H) × 3.2 mm ultra-slim
Net Weight~342 g lightweight
Surface PolarizerMatte anti-glare, 3H hard scratch-resistant coating
Operating Temperature0 ℃ ~ +50 ℃
Storage Temperature-20 ℃ ~ +60 ℃
Original Touch ConfigurationBare panel without touch sensor
Touch Upgrade OptionCompatible bonding with low-force capacitive touch film (low trigger pressure touch assembly)
ComplianceRoHS, REACH certified
Product StatusMass production standard slim panel, A-grade new stock for laptop, embedded industrial touch display assembly

Core Advantages

Full symmetric FFS ultra-wide viewing angle: Consistent color from all directions, suitable for shared workstation

Ultra-slim lightweight form factor: Only 3.2mm thickness, easy touch film bonding without excessive overall thickness increase

Low-power IGZO oxide panel: Lower power consumption, longer battery life for portable equipment

Integrated WLED driver: No separate LED power board required, simpler touch assembly system design

Matte 3H hard coating: Wear-resistant, anti-reflection for workshop frequent operation

Touch-upgradable base panel: Perfect matching with low-force capacitive touch film to build low-pressure touch display modules

Application Scenarios

Slim industrial touch HMI compact control all-in-one (after bonding low-force touch film)

Portable industrial testing analyzers, field maintenance notebooks

Light medical portable diagnostic touch auxiliary display equipment

Commercial slim laptops, industrial rugged portable computers

Indoor industrial self-service kiosks, logistics monitoring touch terminals

Machine vision high-definition touch display equipment

Replacement bare screen for customized 15.6-inch low-force touch integrated display modules

 FAQ

Q1: Does LM156LF1L02 come with touch function by default?

A1: No, the bare LCD panel has no touch sensor. To realize low-force touch, you need to bond an external low-trigger-pressure capacitive touch film on the front surface.

Q2: Does this panel need an external LED driver for backlight?

A2: No, WLED drive circuit is integrated on the LCM PCB. Only standard 3.3V DC input is needed to light the backlight normally.

Q3: What is the benefit of IGZO FFS compared with ordinary a-Si TN panels?

A3: IGZO FFS realizes full symmetric ultra-wide viewing angle, lower power consumption, thinner module thickness and uniform color rendering; TN panels suffer severe color inversion at upper/lower viewing angles and only fit single fixed observation position.

Q4: Can this panel connect to HDMI/VGA directly?

A4: It only accepts eDP signal input; an extra eDP to HDMI/VGA conversion driver board is required for analog/digital signal access.

Q5: What is low-force touch matching for this panel?

A5: After optical bonding ultra-thin low-pressure capacitive touch film, the assembly achieves low trigger pressure touch operation, suitable for medical equipment and portable instruments requiring light touch input without heavy pressing.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
LM156LF1L02 is a 15.6" Display screen Product from .According to 's product specification sheet,LM156LF1L02 display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LM156LF1L02 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
