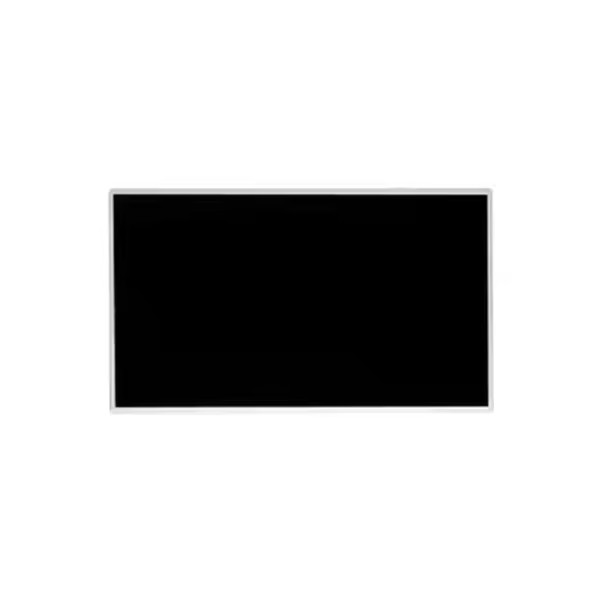

BOE HM236WU3-100 23.6 Inch 1920x1080 FHD Open Cell LCD Panel
Product Overview
The BOE HM236WU3-100 is a premium 23.6-inch a-Si TFT-LCD Open Cell panel featuring a crisp 1920x1080 Full HD resolution and a 16:9 aspect ratio. Engineered for commercial displays, monitor refurbishments, and digital signage, this matrix delivers stunning visual performance with a 1000:1 contrast ratio, 16.7M color depth, and a smooth 75Hz refresh rate. Equipped with a standard LVDS interface and an anti-glare (Haze 25%) hard-coated surface, it is the ideal core component for building or repairing high-definition 23.6-inch monitors. Please note: This is an Open Cell unit and requires an external Backlight Unit (BLU) to function.
⚠️ Crucial Technical Notice: Open Cell (No Backlight)
Please read carefully before ordering:
This HM236WU3-100 is an Open Cell LCD Panel, meaning it is the liquid crystal glass matrix with the T-CON board, but it DOES NOT include the LED backlight strips or diffuser sheets (Brightness is 0 nits out of the box).
How to use it: You must pair this panel with a compatible 23.6-inch LED backlight unit (BLU) and a monitor driver board to light up the screen.
Need a full assembly? If you are looking for a complete 23.6" monitor screen with the backlight already installed, please contact our sales team for a custom kitting quote.
Product Features
Stunning Full HD Clarity: 1920x1080 (FHD) resolution at 93 PPI provides razor-sharp text and vibrant imagery for office and gaming monitors.
Exceptional Contrast: A native 1000:1 contrast ratio ensures deep blacks and bright whites, outperforming standard 600:1 TN panels.
Smooth 75Hz Refresh Rate: Supports up to 75Hz, providing a tear-free and fluid experience for casual gaming and video playback.
True Color Reproduction: 16.7 Million colors (8-bit) deliver accurate color grading for photo editing and commercial signage.
Anti-Glare Surface: Haze 25% hard coating (3H) minimizes reflections from office windows and overhead lighting, reducing eye strain.
Technical Specifications
| Part Number | HM236WU3-100 |
| Brand | BOE |
| Screen Size | 23.6 inch (Diagonal) |
| Resolution | 1920 x 1080 (FHD) |
| Aspect Ratio | 16:9 |
| Signal Interface | LVDS (Typ. 30/51 Pins depending on T-CON) |
| Contrast Ratio | 1000:1 (Typ.) |
| Color Depth | 16.7M (8-bit RGB) |
| Refresh Rate | 75Hz |
| Backlight | None (Open Cell) - Requires External BLU |
| Surface Treatment | Anti-Glare (Haze 25%), Hard Coating (3H) |
Applications
Desktop Monitor Refurbishment & Repair Shops
Commercial Digital Signage & Advertising Displays
DIY Custom Monitor Builds & Smart Mirror Projects
Medical Imaging Secondary Displays
Casino Gaming Machines & Kiosk Terminals
Why Choose ZY LCD Shop for Monitor Open Cells?
Zero Pressure Marks & Scratches: Open cells are extremely fragile. We inspect every glass substrate under polarized light to ensure zero pressure spots or micro-scratches.
T-CON Board Verification: We test the logic board signals to guarantee the LVDS output matches the 1920x1080 resolution perfectly.
Heavy-Duty Wooden/Carton Crating: 23.6-inch bare glass is highly susceptible to bending and cracking. We use reinforced corner protectors and rigid carton boxes for global shipping.
90-Day Hassle-Free Warranty: Protect your refurbishment business with our comprehensive quality guarantee.
Frequently Asked Questions (FAQ)
What exactly is an "Open Cell" LCD panel?
An Open Cell refers to the LCD glass matrix and the attached T-CON (Timing Controller) board, but without the backlight unit (LED strips, reflectors, and diffuser films) and the metal chassis. It is typically purchased by monitor manufacturers or advanced repair shops who have their own backlight assemblies or are harvesting parts from broken monitors with cracked screens but working backlights.
Can I use the BOE HM236WU3-100 to fix my broken 23.6" monitor?
Yes, if your original monitor's screen is cracked but the internal LED backlight strips are still working, you can carefully disassemble the broken panel, transfer the backlight strips and diffuser sheets to this new HM236WU3-100 Open Cell, and reassemble it. This is a highly cost-effective way to repair expensive 23.6-inch FHD monitors.
