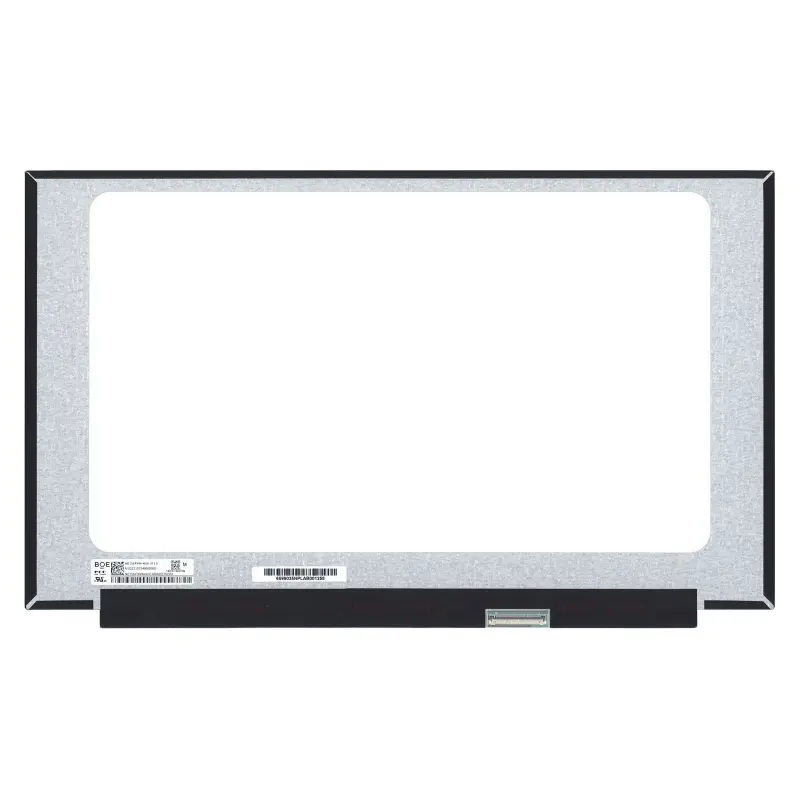

BOE NE156FHM-NX6 15.6 "Laptop Bildschirm Ersatz 144Hz IPS 100% sRGB FHD Display
BOE NE156FHM-NX6 15.6 "Laptop Bildschirm Ersatz 144Hz IPS 100% sRGB FHD Display
Der Preis: €90.54
€86.01/ Mitglied
In den Warenkorb
BOE NE156FHM-NX6 15.6 inch 144Hz 100% sRGB IPS gaming laptop screen replacement
BOE NE156FHM-NX6 15.6 inch 144Hz 100% sRGB IPS gaming laptop screen replacement

BOE NE156FHM-NX6 15.6 "Laptop Bildschirm Ersatz 144Hz IPS 100% sRGB FHD Display

Der Preis: €90.54
€86.01/ Mitglied
Lieferung:
Zahlung:
Berechnung der fracht
Erforderlich:*
Produktmodell* Zielpreis Qty *
Nachricht
Ihre Kontaktdaten: Weitere Informationen:
Name: *
Herr. Frau.
1. Angebot mit Versand Fracht?
Email : *
JA NEIN
Telefon: 2. Welchen Carrier perfert ihr??
Unternehmen:
Fedex UPS DHL
TNT andere
Land:*

BOE NE156FHM-NX6 15.6 "Laptop Bildschirm Ersatz 144Hz IPS 100% sRGB FHD Display

Produktinformationen Produktspezifikationen
Modell:
NE156FHM-NX6
Marke:
BOE
Anwendung:
Handybildschirm
Größe:
Entschließung:
1920(RGB)×1080, FHD 141PPI
Helligkeit:
250 cd/m² (Typ.)
Kontrastverhältnis:
800:1 (Typ.) (TM)
Betrachtungswinkel:
80/80/80/80 (Min.)(CR≥10)
Lampentyp:
9S5P WLED , 15K hours , With LED Driver
Signalschnittstelle:
eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector
Panel-Typ:
Oxide TFT-LCD, LCM
Bestellanleitung
Qualität:
test ok before ship it
Größe:
RMA 6 month
Entschließung:
Paid Sample
Lagerbestand:
1
Betrachtungswinkel:
China
Lampentyp:
WorldWide
Signalschnittstelle:
1-3 Days
Gewicht:
2.500 KG
Übersicht

Entfesseln Sie das wahre Gaming-Potenzial Ihres Laptops

Lassen Sie sich nicht von einem kaputten Bildschirm oder einem Bildschirm mit niedriger Aktualisierungsrate zurückhalten. DieBOE NE156FHM-NX6 (V18.0)ist ein Premium-15,6-Zoll-Full-HD-Display, das speziell für Hochleistungs-Gaming-Laptops und kreative Arbeitsplätze entwickelt wurde.

Im Gegensatz zu standardmäßigen 60-Hz-Bürobildschirmen verfügt dieses panel über eineFlammschnelle 144Hz-WiederholrateFür ein extrem reibungsloses gameplay, kombiniert mit100% sRGB (72% NTSC) Farbspektrumund IPS-Technologie. Egal, ob Sie schnelle Esports-Titel spielen oder farbkritische Fotobearbeitungen durchführen, dieser Bildschirm liefert lebendige Farben, tiefe Schwarze und keine Bewegungsunschärfe.

Technische Spezifikationen

ModellnummerNE156FHM-NX6 (kompatibel mit V18.0)
HerstellerBOE Optoelektronik
Bildschirmgröße15,6 Zoll (Diagonal)
AuflösungFull HD (1920 x 1080) -141 PPI
Aktualisierungsrate144Hz(Ideal für eSports)
Farbspektrum100% sRGB/72% NTSC(hohes Gamut)
PaneltechnikOxid TFT IPS (breiter Betrachtungswinkel)
Verbinder40 Pins eDP (4 Fahrspuren, unten rechts)
HintergrundbeleuchtungWLED (LED-Treiber enthalten, 15K Stunden)
OberflächenartMatt/Anti-Blendung
ZustandBrandneu, A + Grade, Fabrik versiegelt

Kompatible Gaming-Laptops & Anwendungen

Das NE156FHM-NX6 ist das ideale Ersatzpanel für gängige 15,6-Zoll-Gaming-Laptops, die eine 40-polige eDP 144Hz-Verbindung erfordern. Zu den gängigen kompatiblen Serien gehören:

  • Lenovo:Legion 5 (15IMH05H/15ACH6), IdeaPad Gaming 3 15

  • ASUS:TUF Gaming F15 (FX506/FX507), ROG Strix G15

  • Acer:Nitro 5 (AN515-Serie), Predator Helios 300

  • HP:Victus 15, OMEN 15 (144Hz Konfigurationen)

  • MSI:GF65 dünn, Katana 15, Schwert 15

*Kreuzbezugsteilenummern: B156HAN08.0, B156HAN08.2, NE156FHM-NX3. Überprüfen Sie vor der Bestellung immer den 40-Pin-Anschluss und die Modellnummer Ihres Originalbildschirms.

Häufig gestellte Fragen (FAQ)

Q1: Was ist der Unterschied zwischen diesem 100% sRGB-Bildschirm und einem Standard-Bildschirm?

A:Standard-Laptop-Bildschirme decken normalerweise nur 45 % NTSC ab, sodass Farben ausgewaschen aussehen. Die NE156FHM-NX6 verfügt über eine100% sRGB (72% NTSC) Hohe Farbpalette, was bedeutet, dass Rote tiefer sind, Grüne lebendiger sind und es sowohl für immersive gaming als auch für professionelle Foto- /Videobearbeitung sehr genau ist.

Q2: Mein laptop hat derzeit einen 60Hz-Bildschirm. Kann ich auf diesen 144Hz-Bildschirm aktualisieren?

A:In den meisten Fällen benötigt ein 144-Hz-Bildschirm eine4-spuriges 40-poliges EDP-VideokabelUnd ein motherboard/GPU, das hohe Aktualisierungsraten unterstützt. Wenn Ihr ursprünglicher Bildschirm 60 Hz ist, verwendet er wahrscheinlich ein 30-Pin-EDP-Kabel, das physisch nicht an diesen 40-Pin-Bildschirm angeschlossen wird. Dieses panel soll ersetzenbestehend144Hz 40-polige Bildschirme.

Q3: Wo befindet sich der Anschluss auf diesem panel?

A:Der 40-polige EDP-Anschluss befindet sich auf derunten rechtsSeite des Panels (wenn Sie den Bildschirm von vorne betrachten). Bitte überprüfen Sie Ihren Originalbildschirm, um sicherzustellen, dass die Anschlussposition übereinstimmt

Q4: Ist dies ein Touchscreen?

A:Nein, der NE156FHM-NX6 ist einberührungslosmatte Anzeige. Wenn Ihr laptop ursprünglich einen Touchscreen hatte, deaktiviert die Installation dieses Panels die Touchfunktion, obwohl Ihre Displayauflösung und Aktualisierungsrate einwandfrei funktionieren.

Verwandte Laptop-Bildschirme:LP156WFG-SPF2 15,6 "Laptop-BildschirmFHD 144Hz IPS



Produktvergleich
Modell:
Größe:
Entschließung:
Helligkeit:
Kontrastverhältnis:
Betrachtungswinkel:
Lampentyp:
Signalschnittstelle:
Panel-Typ:
BOE NE156FHM-NX6 15.6 "Laptop Bildschirm Ersatz 144Hz IPS 100% sRGB FHD Display

BOE NE156FHM-NX6 15.6 "Laptop Bildschirm Ersatz 144Hz IPS 100% sRGB FHD Display

NE156FHM-NX6

1920(RGB)×1080, FHD 141PPI
250 cd/m² (Typ.)
800:1 (Typ.) (TM)
80/80/80/80 (Min.)(CR≥10)
9S5P WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector
Oxide TFT-LCD, LCM

NE156QUM-N6C

3840(RGB)×2160, UHD, 16:9
600 cd/m² (Typ.), HDR400
1500:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED, 15K hrs, With LED Driver, DC
eDP (4 Lanes), eDP1.4a, HBR2 (5.4G/lane), 40 pins Connector
Oxide TFT-LCD, LCM
NE156QUM-N69  BOE    15.6 Zoll 3840 (RGB) x2160   LCD-ANZEIGE

NE156QUM-N69 BOE 15.6 Zoll 3840 (RGB) x2160 LCD-ANZEIGE

NE156QUM-N69

3840(RGB)×2160, UHD 283PPI
400 cd/m² (Typ.)
1000:1 (Typ.) (TM)
85/85/85/85 (Min.)(CR≥10)
10S6P WLED , 15K hours , With LED Driver
eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector
Oxide TFT-LCD, LCM
NE156FHM-N4X BOE 15,6 Zoll 1920 × 1080 LCD-BILDSCHIRM

NE156FHM-N4X BOE 15,6 Zoll 1920 × 1080 LCD-BILDSCHIRM

NE156FHM-N4X

1920(RGB)×1080, FHD 141PPI
250 cd/m² (Typ.)
800:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 15K hours , With LED Driver
eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector
Oxide TFT-LCD, LCM
