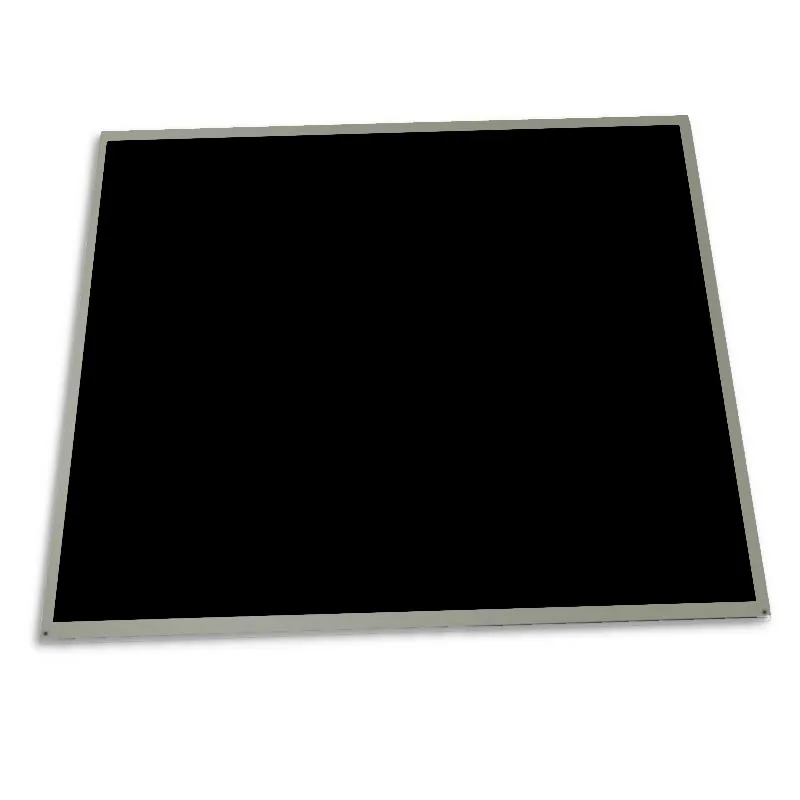

AUO G190EAN01.0 19 inch 1280x1024 SXGA industrial TFT LCD panel front view
30-pin LVDS dual channel interface connector on G190EAN01.0 19
Rear metal chassis and VESA mounting holes of AUO 19 inch SXGA automation monitor
AUO G190EAN01.0 19 inch 1280x1024 SXGA industrial TFT LCD panel front view
30-pin LVDS dual channel interface connector on G190EAN01.0 19
Rear metal chassis and VESA mounting holes of AUO 19 inch SXGA automation monitor

AUO G190EAN01.0 19" 1280x1024 SXGA Industrial TFT LCD Panel

Price: $145.00
$140.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO G190EAN01.0 19" 1280x1024 SXGA Industrial TFT LCD Panel

Product Information Product Specifications
Model:
G190EAN01.0
Brand:
AUO
Application:
Industrial
Size:
19"
Resolution:
1280(RGB)×1024, SXGA 86PPI
Brightness:
300 cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
9S6P WLED , 50K hours , With LED Driver
Signal Interface:
LVDS (2 ch, 8-bit) , Connector 30 pins
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
3.500 KG
Overview

Product Introduction

The AUO G190EAN01.0 is a 19-inch industrial TFT-LCD display module designed for demanding industrial applications. This a-Si TFT-LCD LCM features an SXGA resolution of 1280 × 1024, a transmissive normally black AHVA display mode, and WLED backlighting. With 300 cd/m² brightness, a 1000:1 typical contrast ratio, wide 89° viewing angles, and 96% sRGB coverage, it supports clear and consistent visual output. The module operates from 0°C to 50°C and includes a 2-channel, 8-bit LVDS interface for compatible industrial system integration.

Key Features

  • 19-inch a-Si TFT-LCD LCM with 1280 × 1024 SXGA resolution

  • 300 cd/m² brightness and 1000:1 typical transmissive contrast ratio

  • AHVA display mode with normally black transmissive configuration

  • Wide 89° viewing angles in all four directions

  • 7M color depth using 8-bit color

  • 96% sRGB coverage based on CIE 1931

  • Fast typical response time of 13 ms Tr and 12 ms Td

  • 60Hz refresh rate

  • WLED backlight rated for a minimum lifetime of 50,000 hours

  • 2-channel, 8-bit LVDS interface

  • Low typical power consumption of 13.8W, with a maximum of 15.6W

  • Industrial operating temperature range from 0°C to 50°C

  • Storage temperature range from -20°C to 60°C

Technical Specifications

Panel ModelG190EAN01.0
Panel Typea-Si TFT-LCD, LCM
Display Size19
Resolution1280(RGB)×1024, SXGA
Pixel Pitch0.098×0.294 mm (H×V)
Application FieldIndustrial
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
Brightness300
Contrast Ratio1000:1 (Typ.) (Transmissive)
Response Time13/12 (Typ.)(Tr/Td) ms
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Color Depth16.7M (8-bit)
Color Temperature6485K
Display ModeAHVA, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage96% coverage (CIE 1931)
Outline Dimension396×324 mm (H×V)
Active Area376.32×301.056 mm (H×V)
Weight1.55Kgs (Typ.)
Voltage28.75V (Typ.)
Power Consumption13.8/15.6W (Typ./Max.)
Backlight TypeWLED
Backlight Lifetime50K (Min.) hrs
InterfaceLVDS (2 ch, 8-bit) Logic Voltage -

Applications

  • Industrial HMI and operator control panels

  • Industrial monitoring and process-control systems

  • Machine vision and inspection interfaces

  • Factory automation and production equipment

  • Test and measurement systems

  • Diagnostic and laboratory equipment

  • Other embedded industrial display systems requiring an LVDS-connected 19-inch panel

Frequently Asked Questions

Q1: What display technology and panel type does the AUO G190EAN01.0 use?

A: The G190EAN01.0 uses a-Si TFT-LCD technology in an LCM configuration with a transmissive, normally black AHVA display mode.

Q2: What are the native resolution and color depth of the G190EAN01.0?

A: The module provides a native SXGA resolution of 1280 × 1024 with 16.7M colors supported through 8-bit color depth.

Q3: What interface is provided for system integration?

A: The AUO G190EAN01.0 features a 2-channel, 8-bit LVDS interface.

Q4: What are the brightness and contrast specifications?

A: The display has a specified brightness of 300 cd/m² and a typical transmissive contrast ratio of 1000:1.

Q5: What is the operating temperature range of the module?

A: The specified operating temperature range is 0°C to 50°C, with a storage temperature range of -20°C to 60°C.

Q6: What type of backlight does the G190EAN01.0 use?

A: The module uses a WLED backlight with a specified minimum lifetime of 50,000 hours.

Q7: How much power does the G190EAN01.0 consume?

A: Typical power consumption is 13.8W, with a maximum specified consumption of 15.6W.

Q8: What are the physical dimensions and active display area?

A: The outline dimensions are 396 × 324 mm, and the active area measures 376.32 × 301.056 mm. The typical module weight is 1.55 kg.
