AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel
AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel
Price: $155.00
$150.00/ piece
Add to cart
AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel

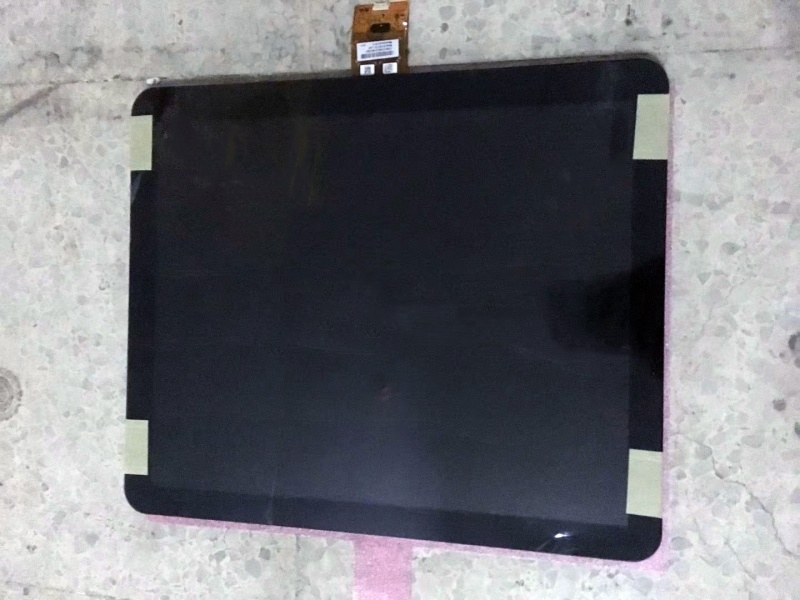

AUO G170ETT01.0 17.0 inch SXGA 1280x1024 industrial LCD panel front view

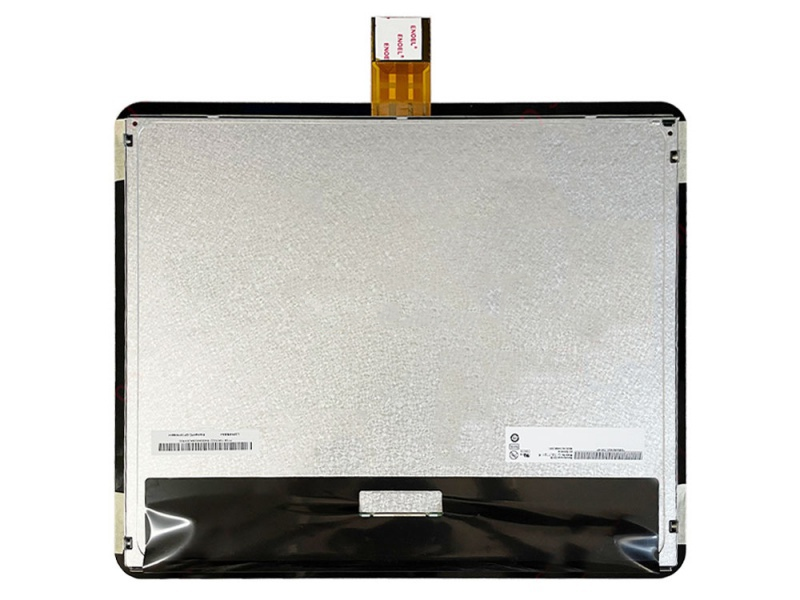

G170ETT01.0 17 inch LCD panel back cover and LVDS interface connector
AUO G170ETT01.0 17.0 inch SXGA 1280x1024 industrial LCD panel front view
G170ETT01.0 17 inch LCD panel back cover and LVDS interface connector

AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel

Price: $155.00
$150.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel

Product Information Product Specifications
Model:
G170ETT01.0
Brand:
AUO
Application:
Industrial
Size:
17"
Resolution:
1280(RGB)×1024, SXGA 96PPI
Brightness:
250 cd/m² (Typ.)
Contrast Ratio:
1000:1 (Typ.) (TM)
Viewing Angle:
85/85/80/80 (Typ.)(CR≥10)
Lamp Type:
4 strings WLED , 30K hours , Without Driver
Signal Interface:
LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
2.500 KG
Overview

The AUO G170ETT01.0 is a highly reliable 17.0-inch industrial TFT-LCD panel engineered for demanding commercial and professional applications. Featuring a standard 5:4 aspect ratio and SXGA resolution of 1280(RGB)×1024 pixels, this display delivers sharp text rendering and stable visual performance. As a trusted component for long-term equipment maintenance, the G170ETT01.0 is widely used as an industrial HMI panel, CNC machine monitor, medical diagnostic display, and POS terminal screen. Available now at ZYLCDShop with guaranteed original A-grade quality, strict testing, and fast global shipping.

Product Features

  • Standard 5:4 Aspect Ratio: The 1280×1024 SXGA resolution perfectly fits legacy industrial software, SCADA systems, and older control interfaces without image stretching.

  • Industrial Grade Reliability: Built with high-grade components to withstand harsh factory environments, ensuring 24/7 continuous operation stability.

  • High Contrast & Color Reproduction: Advanced a-Si TFT technology provides excellent contrast ratios and consistent color accuracy for critical monitoring tasks.

  • Standard Interface Compatibility: Equipped with standard signal interfaces (typically LVDS) for seamless integration with existing industrial driver boards and motherboards.

  • Long-Term Supply Guarantee: AUO industrial series panels offer extended production lifecycles, protecting your product line from premature obsolescence.

Technical Specifications

ParameterDetails
Part NumberG170ETT01.0
ManufacturerAUO (AU Optronics)
Diagonal Size17.0 inch
Panel Typea-Si TFT-LCD, LCM
Resolution1280(RGB)×1024 [SXGA], 96 PPI
Aspect Ratio5:4
Active Area337.92(H) × 270.336(V) mm
Interface[Insert Interface Type, e.g., LVDS 20/30 pins]
Backlight[Insert Backlight Type, e.g., WLED / CCFL]
Brightness (Typ.)[Insert Brightness, e.g.,250cd/m²]
Surface TreatmentAnti-Glare / Matte
Operating Temperature[Insert Temp Range, e.g., 0 ~ 50 °C or -20 ~ 70 °C]

* For the complete AUO G170ETT01.0 datasheet, exact pinout diagram, or compatibility list, please contact our technical support team.

Applications for G170ETT01.0 Display Panel

This 17.0 inch SXGA industrial LCD panel is specifically designed for professional use cases that require 5:4 formatting, including:

  • Industrial Control Systems: Legacy HMI panels, PLC displays, CNC machine monitors, and factory automation screens.

  • Medical Devices: Patient monitoring displays, ultrasound machines, and laboratory diagnostic equipment.

  • Commercial Terminals: Point-of-Sale (POS) systems, ATM machines, self-service kiosks, and ticketing terminals.

  • Test & Measurement: Oscilloscopes, spectrum analyzers, and specialized laboratory instrument displays.

Why Buy AUO LCD Panels from ZYLCDShop?

  • 100% Original A-Grade: We source directly from authorized channels. Every AUO G170ETT01.0 is strictly tested to ensure zero dead pixels and original manufacturing quality.

  • Legacy Stock Availability: Finding older 5:4 SXGA panels can be difficult. We maintain dedicated inventory for hard-to-find industrial replacement screens.

  • Expert Technical Support: Our engineers can assist with G170ETT01.0 integration, inverter/driver board matching, and troubleshooting.

  • Secure Global Shipping: Every module is packed in anti-static bags and high-density foam boxes to prevent transit damage worldwide.

Frequently Asked Questions (FAQ)

Is the AUO G170ETT01.0 suitable for outdoor use?

The G170ETT01.0 is primarily designed for indoor industrial and commercial applications. If you require a 17-inch sunlight-readable display for outdoor use, please check our high brightness LCD category or contact us for optical bonding solutions.

Does this 17 inch SXGA LCD panel come with a touch screen digitizer?

No, the G170ETT01.0 is a standard non-touch display module. If your project requires a touch-enabled screen with a resistive or capacitive digitizer, please browse our Touch Screen LCD category or contact us for custom overlay solutions.

Do you provide the G170ETT01.0 datasheet and pinout diagram?

Yes, we provide full technical documentation including the AUO G170ETT01.0 PDF datasheet, interface pinout, and voltage specifications upon request. Simply submit an inquiry below.

Can I order a sample of this 17 inch 1280x1024 LCD panel before bulk purchasing?

Absolutely. ZYLCDShop supports sample orders so you can test the 1280x1024 SXGA display module in your prototype or repair project before committing to mass production volumes.

    Product Comparison
    Model:
    Size:
    Resolution:
    Brightness:
    Contrast Ratio:
    Viewing Angle:
    Lamp Type:
    Signal Interface:
    Panel Type:
    AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel

    AUO G170ETT01.0 17.0" SXGA 1280x1024 5:4 Industrial TFT LCD Panel

    G170ETT01.0

    17"
    1280(RGB)×1024, SXGA 96PPI
    250 cd/m² (Typ.)
    1000:1 (Typ.) (TM)
    85/85/80/80 (Typ.)(CR≥10)
    4 strings WLED , 30K hours , Without Driver
    LVDS (2 ch, 8-bit) , 30 pins Connector
    a-Si TFT-LCD, LCM
    AUO  G170ETN02.1  17  inch lcd display module

    AUO G170ETN02.1 17 inch lcd display module

    G170ETN02.1

    17"
    1280(RGB)×1024, SXGA 96PPI
    800 cd/m² (Typ.)
    700:1 (Typ.) (TM)
    80/80/70/70 (Typ.)(CR≥10)
    10S4P WLED , 50K hours , Without Driver
    LVDS (2 ch, 8-bit) , 30 pins Connector
    a-Si TFT-LCD, LCM
    G170EG01 V1 17  inch  lcd  display  panel   for  AUO

    G170EG01 V1 17 inch lcd display panel for AUO

    G170EG01 V1

    17"
    1280(RGB)×1024, SXGA 96PPI
    350 cd/m² (Typ.)
    800:1 (Typ.) (TM)
    80/80/60/80 (Typ.)(CR≥10)
    WLED , 50K hours , With LED Driver
    LVDS (2 ch, 8-bit) , 30 pins Connector
    a-Si TFT-LCD, LCM
    G170ETT01.0 is a 17" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G170ETT01.0 display has a resolution of 1280(RGB)×1024, SXGA 96PPI, Contrast Ratio is 1000:1 (Typ.) (TM),Viewing Angle is 85/85/80/80 (Typ.)(CR≥10),Lamp Type is 4 strings WLED , 30K hours , Without Driver,Signal Interface is LVDS (2 ch, 8-bit) , 30 pins Connector,Brightness is 250 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G170ETT01.0 after packaging is 2.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
