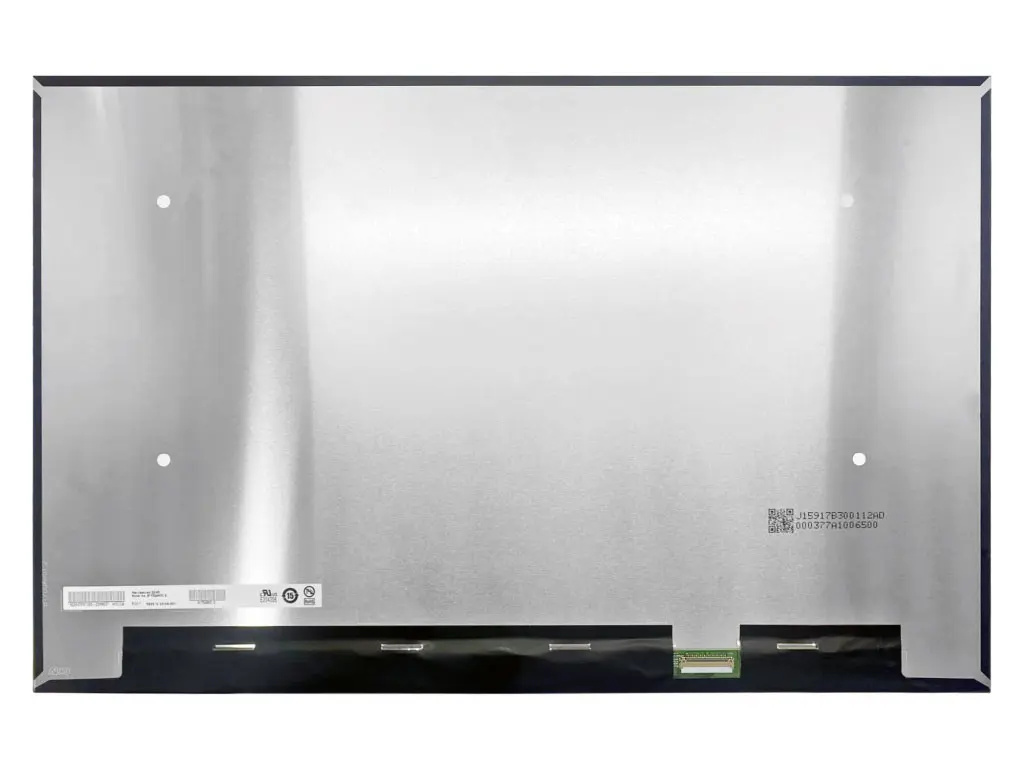

AUO B170QAN01.2 17" Industrial LCD Display Panel 2560x1600 eDP Interface
AUO B170QAN01.2 is a slim high-resolution 17-inch LTPS IPS TFT LCD panel with WQXGA 2560×1600 resolution and 4-lane eDP interface, designed for high-precision industrial visualization, embedded workstations and portable high-end monitoring terminals. Adopting advanced IPS liquid crystal technology, it delivers identical color and brightness at 89° full four-side viewing angles without color shift, perfectly fitting multi-operator observation scenarios. Equipped with 240Hz ultra-fast refresh rate and only 3ms GtG response time, it eliminates motion blur for real-time dynamic data, machine vision streaming and graphic rendering. The integrated long-life WLED backlight supports flicker-free DC dimming with 400 cd/m² stable brightness and full 100% sRGB color gamut, ensuring accurate color reproduction for image analysis and measurement equipment. Its ultra-thin 5mm outline and bent slim PCB tail save internal assembly space for compact industrial all-in-one machines and portable inspection devices. The matte anti-glare hard coating effectively reduces ambient light reflection and withstands minor abrasion during daily industrial operation. Fully RoHS compliant, this AUO original panel provides stable long-term supply for industrial visualization, medical auxiliary display and high-performance embedded system upgrade projects.
| Parameter | Specification |
|---|---|
| Model Number | B170QAN01.2 |
| Manufacturer | AU Optronics (AUO) |
| Diagonal Size | 17.0 inches |
| Native Resolution | 2560 × 1600 WQXGA, 16:10 Aspect Ratio, 178 PPI |
| Display Technology | LTPS TFT-LCD, IPS Mode, Transmissive, Normally Black |
| Signal Interface | eDP 4 Lanes, 40-pin narrow connector, 3.3V logic voltage |
| Backlight System | Integrated WLED, built-in LED driver, 150,000 hrs typical lifespan |
| Typical Brightness | 400 cd/m² |
| Typical Contrast Ratio | 1000:1 |
| Viewing Angle (L/R/U/D, CR≥10) | 89° / 89° / 89° / 89° full symmetric wide viewing |
| Color Performance | 16.7M true colors, 100% sRGB gamut, flicker-free DC dimming |
| Response Time (GtG) | 3 ms typical |
| Refresh Rate | 240 Hz |
| Pixel Pitch | 0.1441 × 0.1441 mm |
| Active Display Area | 368.64 mm (W) × 230.40 mm (H) |
| Overall Outline Dimension | 372.84 mm (W) × 240.11 mm (H) × 5.0 mm (D) |
| PCB Form | Slim PCB with bent tail, ultra-thin lightweight design |
| Surface Treatment | Matte anti-glare coating, 3H hard scratch resistance |
| Net Weight | ~750 g typical |
| Operating Temperature Range | 0 ℃ ~ +50 ℃ |
| Storage Temperature Range | -20 ℃ ~ +60 ℃ |
| Touch Function | No integrated touch panel |
| Compliance Standard | RoHS Lead-Free Certified |
| Product Status | Mass production available, widely used for high-end embedded & industrial visualization replacement |
High-precision industrial machine vision inspection workstations
Medical image analysis auxiliary display terminals
Embedded industrial all-in-one HMI & central monitoring screens
Portable high-end testing & measurement equipment
Digital graphic design industrial workstations
High-resolution industrial kiosks & simulation visualization systems
Replacement screen for 17-inch WQXGA embedded monitor & notebook display
