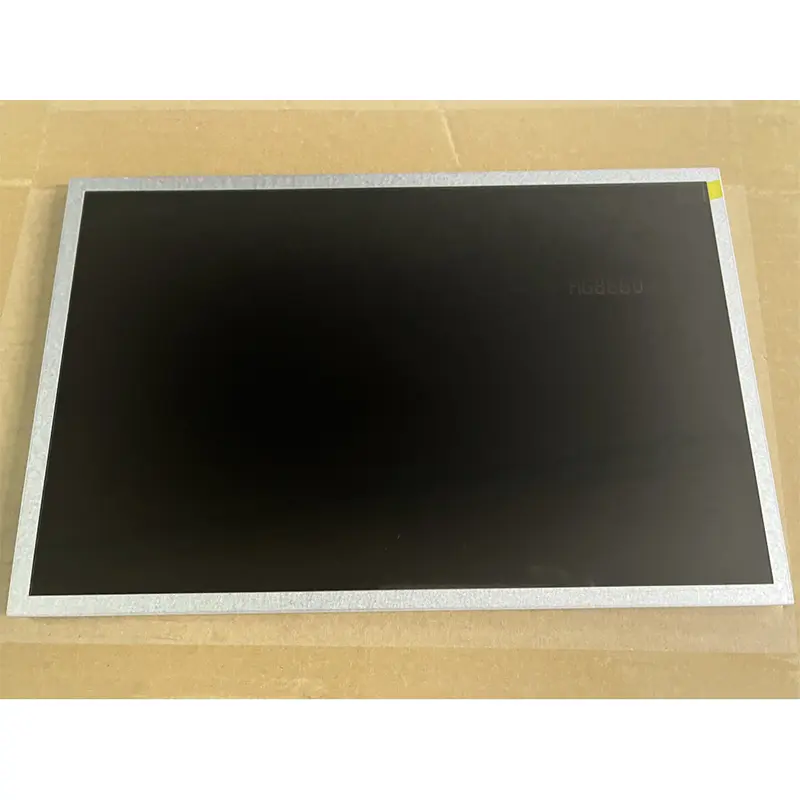

EV121WXM-N12 BOE 12.1inch 1280(RGB)×800 LCD DISPLAY
EV121WXM-N12
12.1"
1280(RGB)×800, WXGA 124PPI
500 cd/m² (Typ.)
1200:1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED [12S4P] , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM
G101EAN02.6 10.1" display lcd for AUO
10.1"
1280(RGB)×800, WXGA 149PPI
300 cd/m² (Typ.)
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 30K hours , With LED Driver
LVDS (1 ch, 8-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
G101EAN02.5 10.1" lcd panel for AUO
10.1"
1280(RGB)×800, WXGA 149PPI
450 cd/m² (Typ.)
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 20K hours , With LED Driver
LVDS (1 ch, 8-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
G101EAN02.4 10.1" tft display for AUO
10.1"
1280(RGB)×800, WXGA 149PPI
400 cd/m² (Typ.)
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 20K hours , With LED Driver
eDP (1 Lane) , 30 pins Connector
a-Si TFT-LCD, LCM
