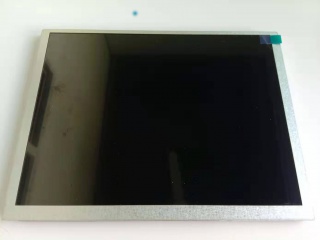

G101EAN02.6      10.1"       display      lcd       for      AUO
G101EAN02.6 10.1" display lcd for AUO
Price: $105.00
$101.00/ piece
Add to cart
G101EAN02.6      10.1"       display      lcd       for      AUO
G101EAN02.6      10.1"       display      lcd       for      AUO
G101EAN02.6      10.1"       display      lcd       for      AUO
G101EAN02.6      10.1"       display      lcd       for      AUO

G101EAN02.6 10.1" display lcd for AUO

Price: $105.00
$101.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

G101EAN02.6 10.1" display lcd for AUO

Product Information Product Specifications
Model:
G101EAN02.6
Brand:
AUO
Application:
Industrial
Size:
10.1"
Resolution:
1280(RGB)×800, WXGA 149PPI
Brightness:
300 cd/m² (Typ.)
Contrast Ratio:
800:1 (Typ.) (TM)
Viewing Angle:
89/89/89/89 (Typ.)(CR≥10)
Lamp Type:
WLED , 30K hours , With LED Driver
Signal Interface:
LVDS (1 ch, 8-bit) , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview

Product Introduction

The AUO G101EAN02.6 is a 10.1-inch industrial a-Si TFT-LCD display module designed for demanding embedded and industrial applications. Its WXGA resolution of 1280 × 800 RGB pixels, 300-nit brightness, wide 89° viewing angles, and 800:1 typical contrast ratio support clear and consistent visual output. The transmissive, normally black AHVA panel operates from -20°C to 70°C and is driven through a single-channel, 8-bit LVDS interface at 12V.

Key Features

  • 1-inch a-Si TFT-LCD LCM with a 1280 × 800 WXGA resolution

  • 300-nit brightness and 800:1 typical transmissive contrast ratio

  • AHVA normally black display mode with 89° viewing angles across all four directions

  • 7M color depth using 8-bit color

  • 29 ms typical response time and 60 Hz refresh rate

  • Single-channel, 8-bit LVDS logic interface

  • Wide operating temperature range of -20°C to 70°C

  • WLED backlight rated for a minimum lifetime of 30,000 hours

  • 0 ± 1.2V input voltage with maximum power consumption of 4.02W

  • Compact 230.68 × 152.55 mm outline with a 216.96 × 135.6 mm active area

  • Maximum module weight of 305g

Technical Specifications

Panel ModelG101EAN02.6
Panel Typea-Si TFT-LCD, LCM
Display Size10.1
Resolution1280(RGB)×800, WXGA
Pixel Pitch0.0565×0.1695 mm (H×V)
Application FieldIndustrial
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Brightness300
Contrast Ratio800:1 (Typ.) (Transmissive)
Response Time29 (Typ.)(Tr+Td) ms
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Color Depth16.7M (8-bit)
Color Temperature6485K
Display ModeAHVA, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage68% coverage (CIE 1931)
Outline Dimension230.68×152.55 mm (H×V)
Active Area216.96×135.6 mm (H×V)
Weight305g (Max.)
Voltage12.0±1.2V
Power Consumption4.02W (Max.)
Backlight TypeWLED
Backlight Lifetime30K (Min.) hrs
InterfaceLVDS (1 ch, 8-bit) Logic Voltage -

Applications

  • Industrial human-machine interfaces

  • Embedded control and monitoring systems

  • Industrial test and measurement equipment

  • Process control and automation panels

  • Diagnostic and inspection equipment

  • Commercial and information display systems designed for industrial environments

Frequently Asked Questions

Q1: What display technology and panel mode does the AUO G101EAN02.6 use?

A: The G101EAN02.6 uses an a-Si TFT-LCD LCM with an AHVA, normally black, transmissive display mode.

Q2: What is the native resolution of the G101EAN02.6?

A: It provides a native WXGA resolution of 1280 × 800 RGB pixels.

Q3: What interface and input voltage does the display support?

A: The module uses a single-channel, 8-bit LVDS interface and requires a 12.0 ± 1.2V input voltage.

Q4: What are the brightness and contrast specifications?

A: The display has a brightness of 300 and a typical transmissive contrast ratio of 800:1.

Q5: What operating and storage temperature ranges are specified?

A: The operating temperature range is -20°C to 70°C, while the storage temperature range is -30°C to 80°C.

Q6: How is the display backlit, and what is its specified lifetime?

A: The display uses a WLED backlight with a minimum rated lifetime of 30,000 hours.

Q7: What are the module's viewing-angle and color specifications?

A: Typical viewing angles are 89° in each direction with a contrast ratio of at least 10. The panel supports 16.7M colors through 8-bit color depth, with a color temperature of 6485K and 68% sRGB coverage based on CIE 1931.

Q8: What are the physical dimensions of the G101EAN02.6?

A: The outline dimensions are 230.68 × 152.55 mm, and the active area measures 216.96 × 135.6 mm. The maximum module weight is 305g.

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
G101EAN02.6      10.1"       display      lcd       for      AUO

G101EAN02.6 10.1" display lcd for AUO

G101EAN02.6

10.1"
1280(RGB)×800, WXGA 149PPI
300 cd/m² (Typ.)
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 30K hours , With LED Driver
LVDS (1 ch, 8-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
G101EAN02.2 AUO 10.1inch 1280×800 LCD DISPLAY

G101EAN02.2 AUO 10.1inch 1280×800 LCD DISPLAY

G101EAN02.2

10.1"
1280(RGB)×800, WXGA 149PPI
500 cd/m² (Typ.)
800 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
LVDS (1 ch, 8-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
G101EAN02.5        10.1"      lcd     panel      for      AUO

G101EAN02.5 10.1" lcd panel for AUO

G101EAN02.5

10.1"
1280(RGB)×800, WXGA 149PPI
450 cd/m² (Typ.)
800:1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 20K hours , With LED Driver
LVDS (1 ch, 8-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
G101EAN02.0    10.1"     display    lcd     for    AUO

G101EAN02.0 10.1" display lcd for AUO

G101EAN02.0

10.1"
1280(RGB)×800, WXGA 149PPI
800 : 1 (Typ.) (TM)
89/89/89/89 (Typ.)(CR≥10)
WLED , 20K hours , With LED Driver
LVDS (1 ch, 8-bit) Connector
a-Si TFT-LCD, LCM
