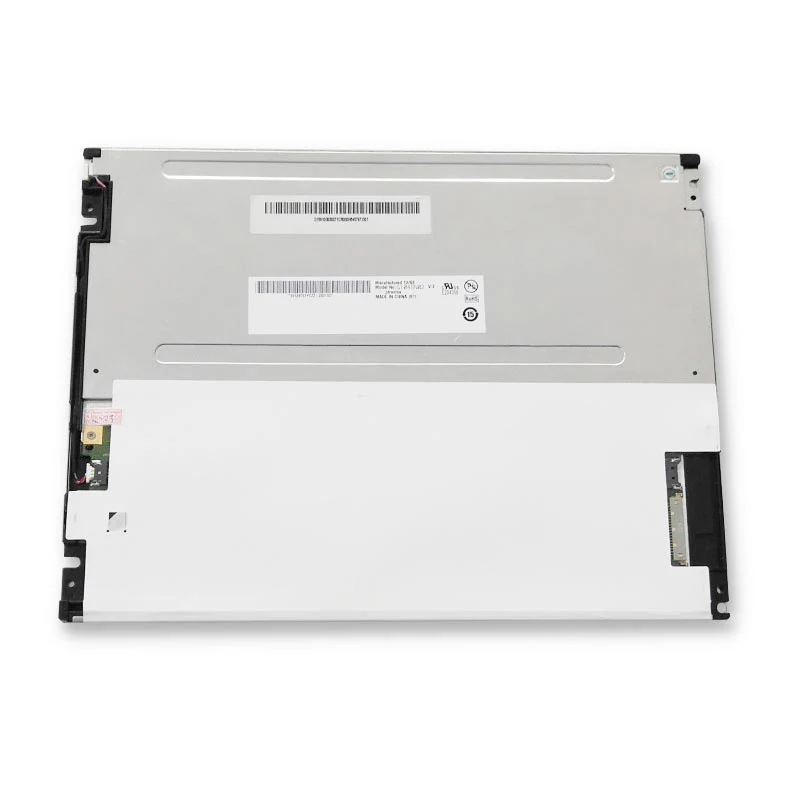

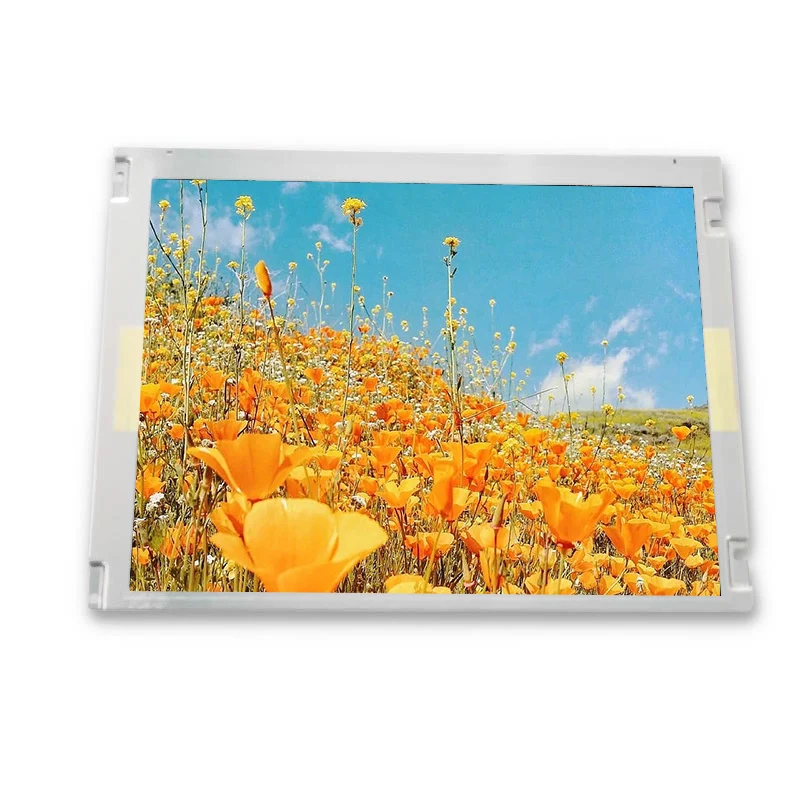

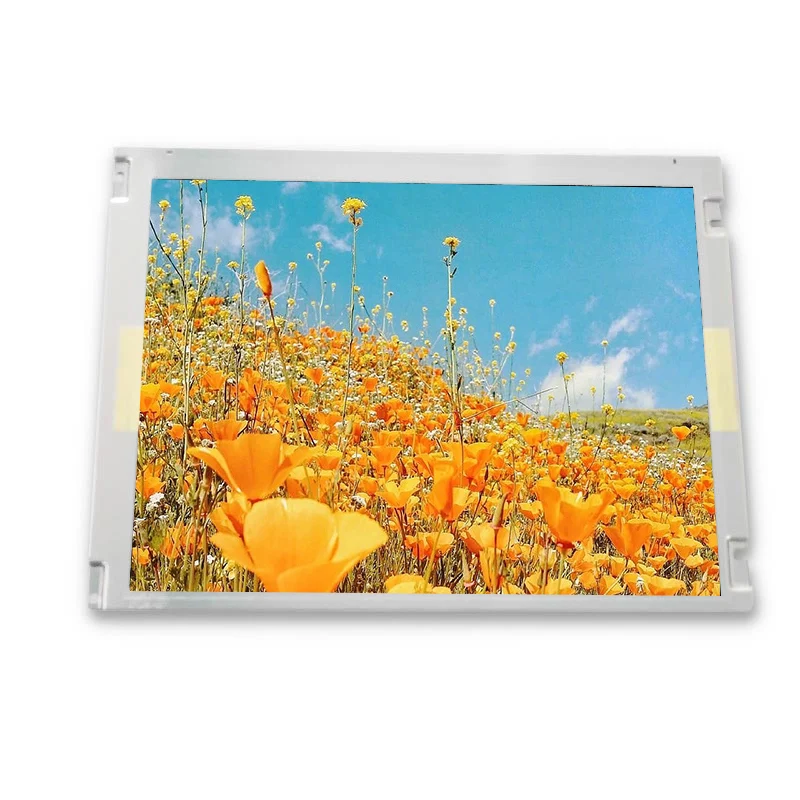

10.4" AUO G104SN02 V2 Industrial TFT LCD Panel, XGA 800×600 Display
10.4" AUO G104SN02 V2 Industrial TFT LCD Panel, XGA 800×600 Display Hot
Price: $90.00
$85.00/ piece
Add to cart
AUO G104SN02 V2 10.4
G104SN02 V2 AUO 10.4 inch LVDS LCD module industrial replacement screen
AUO G104SN02 V2 10.4
G104SN02 V2 AUO 10.4 inch LVDS LCD module industrial replacement screen

10.4" AUO G104SN02 V2 Industrial TFT LCD Panel, XGA 800×600 Display Hot

Price: $90.00
$85.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

10.4" AUO G104SN02 V2 Industrial TFT LCD Panel, XGA 800×600 Display

Product Information Product Specifications
Model:
G104SN02 V2
Brand:
AUO
Application:
Industrial
Size:
10.4"
Resolution:
800(RGB)×600, SVGA 96PPI
Brightness:
400 cd/m² (Typ.)
Contrast Ratio:
700:1 (Typ.) (TM)
Viewing Angle:
80/80/60/80 (Typ.)(CR≥10)
Lamp Type:
7S2P WLED , 50K hours , With LED Driver
Signal Interface:
LVDS (1 ch, 6/8-bit) , 20 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
500
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.500 KG
Overview
10.4" AUO G104SN02 V2 is a high-performance industrial-grade TFT LCD display panel with native XGA 800×600 resolution, professionally designed for long-term stable operation in harsh industrial, automotive, medical, and outdoor equipment environments. As a genuine AUO  original industrial LCD module, the G104SN02 V2 version upgrades core stability, temperature resistance, and display consistency compared with V0/V1 versions, becoming one of the most cost-effective 10.4-inch industrial display solutions in the global market.
Unlike commercial consumer screens, this AUO G104SN02 V2 industrial LCD panel adopts professional industrial TFT technology, paired with anti-glare hard coating (3H hardness) surface treatment. It effectively resists screen scratches, ambient light interference, and dust erosion, ensuring clear and stable display effects in strong light, high temperature, and low temperature scenarios. It is the preferred replacement and original matching screen for industrial control equipment, PLC operation terminals, industrial monitors, and embedded display devices.10.4 inch industrial TFT LCD Panel

Core Advantages of AUO G104SN02 V2 Industrial Display

Industrial-Grade Ultra-Stable Performance: The G104SN02 V2 supports a wide working temperature range of -30℃ to 80℃, adapting to extreme working environments such as factory workshops, outdoor cabinets, and vehicle-mounted industrial equipment. It avoids screen blackout, color cast, and flickering problems caused by temperature changes, realizing 24/7 long-term uninterrupted operation,G104SN02 V2 replacement panel

800×600 XGA High-Definition Display: Native SVGA/XGA resolution restores delicate picture details, with accurate color reproduction and high gray-scale performance. The original 400 cd/㎡ high brightness design ensures clear visibility in strong ambient light, perfectly meeting the high-definition display needs of industrial operation interfaces, data monitoring, and equipment debugging.AUO industrial control display.

High Hardness Anti-Glare Screen: Equipped with 3H hard coating and anti-glare processing, the 10.4-inch AUO G104SN02 V2 screen resists daily friction and scratches, eliminates light reflection interference, and maintains a stable viewing effect in complex light environments, greatly extending the service life of the display panel.

Low Power Consumption & High Compatibility: The panel features low power consumption design (typical power 0.924W), supports 3.3V standard voltage input, and adopts mature LVDS interface. It is highly compatible with mainstream industrial control motherboards, driver boards, and touch screen modules on the market, convenient for secondary development and equipment replacement and upgrading.

Upgraded V2 Version Optimization: Based on the iteration of V0 and V1 versions, G104SN02 V2 optimizes pixel consistency, screen response speed, and aging resistance. It solves the common problems of old versions such as uneven brightness and long-term color fading, with more stable product quality and higher market applicability.

Detailed Technical Specifications of G104SN02 V2

Specification Item
Parameter Details
Brand
AUO
Model
G104SN02 V2
Screen Size
10.4 Inch
Native Resolution
800×600 (XGA/SVGA)
Display Technology
Industrial TFT LCD, Transmissive Normally White
Brightness
400 cd/m² (Typical)
Viewing Angle
140°/160° (U/D/L/R)
Surface Treatment
Anti-glare, 3H Hard Coating
Input Voltage
3.3V (Typical)
Working Current
280mA (Typical)
Typical Power Consumption
0.924W
Working Temperature
-30℃ ~ 80℃
Outline Dimension
243.0(W)×184.0(H)×10.6(D) mm
Weight
485±10g
Application Scenarios
Industrial Control, Medical Equipment, Vehicle Display, Outdoor Monitoring, Embedded Terminals

Wide Application Scenarios

The 10.4 inch AUO G104SN02 V2 industrial TFT display is widely used in various professional display fields that require high stability and high durability. It is perfectly compatible with industrial control PLC terminals, industrial touch all-in-one machines, medical detection equipment, vehicle-mounted industrial displays, outdoor intelligent monitoring devices, mechanical equipment operation screens, and embedded industrial computer displays. With stable quality and strong environmental adaptability, it has become a mainstream replacement screen for old industrial display equipment and a preferred matching screen for new industrial intelligent equipment.

Our Product & Service Advantages

We supply 100% original new AUO G104SN02 V2 LCD panels, completely consistent with official factory specifications, no refurbished, no disassembled screens. All products pass strict quality testing before delivery, with stable display performance and long service life. We support bulk wholesale, customized matching driver boards and touch screens, and provide professional technical parameter consultation and after-sales technical support. Whether you need single-piece sample purchase or long-term bulk ordering, we can provide cost-effective industrial display solutions for global customers,factory automation monitor

FAQ

  1. What machines fit AUO G104SN02 V2 LCD panel?G104SN02 V2 is commonly used for industrial HMI, CNC controllers and automated production monitoring terminals replacement.instrument equipment spare display
  2. Does G104SN02 V2 come with touch function?The bare LCD panel has no built-in touch. We can supply matched resistive or capacitive touch overlay as required.
  3. What interface does G104SN02 V2 adopt?This panel uses LVDS interface. Please confirm the interface of your original screen before purchase.

Related Products:replacement screen ,CNC machine,wholesale industrial LCD supplier, datasheet download,CNC controller display, industrial HMI screen


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
10.4" AUO G104SN02 V2 Industrial TFT LCD Panel, XGA 800×600 Display

10.4" AUO G104SN02 V2 Industrial TFT LCD Panel, XGA 800×600 Display

G104SN02 V2

10.4"
800(RGB)×600, SVGA 96PPI
400 cd/m² (Typ.)
700:1 (Typ.) (TM)
80/80/60/80 (Typ.)(CR≥10)
7S2P WLED , 50K hours , With LED Driver
LVDS (1 ch, 6/8-bit) , 20 pins Connector
a-Si TFT-LCD, LCM
G104SN02 V2 is a 10.4" a-Si TFT-LCD, LCM Display screen Product from AUO.According to AUO's product specification sheet,G104SN02 V2 display has a resolution of 800(RGB)×600, SVGA 96PPI, Contrast Ratio is 700:1 (Typ.) (TM),Viewing Angle is 80/80/60/80 (Typ.)(CR≥10),Lamp Type is 7S2P WLED , 50K hours , With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , 20 pins Connector,Brightness is 400 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of G104SN02 V2 after packaging is 1.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
