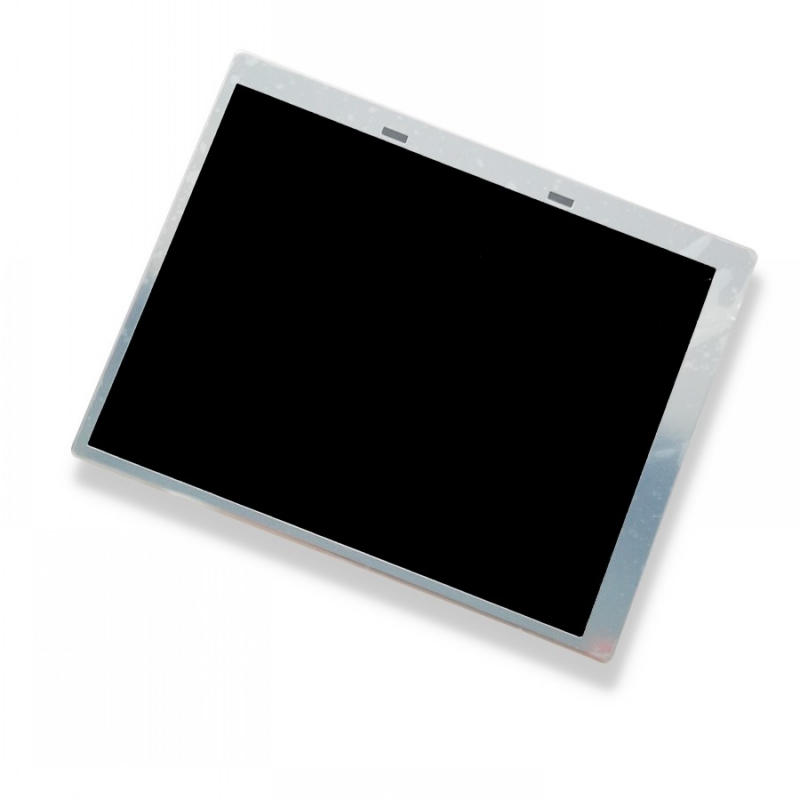

TX20D200VM5BAA KOE 8" a-Si TFT-LCD LCM 800(RGB)×480 WVGA 116PPI

TX20D200VM5BAA KOE 8" a-Si TFT-LCD LCM 800(RGB)×480 WVGA 116PPI

Price: $190.00

$186.00/ piece

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Product Comparison Q&A Reviews

TX20D200VM5BAA KOE 8" a-Si TFT-LCD LCM 800(RGB)×480 WVGA 116PPI

Data sheets：

TX20D200VM5BAA KOE 8" a-Si TFT-LCD LCM 800(RGB)×480 WVGA 116PPI.pdf

Product Information Product Specifications

Model:

TX20D200VM5BAA

Brand:

KOE

Application:

Industrial

Size:

Resolution:

800(RGB)×480, WVGA 116PPI

Brightness:

1000 cd/m² (Typ.)

Contrast Ratio:

400 : 1 (Typ.) (TM)

Viewing Angle:

80/80/80/80(Typ.)(CR≥10)

Lamp Type:

WLED, 70K hours, With LED Driver

Signal Interface:

LVDS(1ch,6-bit),20pinsConnector

Panel Type:

a-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Active Area:

174(W)×104.4(H) mm

Bezel Opening:

177.0(W)×107.4(H) mm

Outline size:

189 × 122 (H×V×D)

Surface:

Response Time:

20 (Typ.)(Tr+Td) ms

Best View on:

Work Mode:

TN, Normally White, Transmissive

Display Colors:

262K60%NTSC

Weight:

220g

Frequency:

60Hz

Touchscreen:

Without

Signal Type:

LVDS(1ch,6-bit),20pinsConnector

Voltage Supply:

3.3V(Typ.)

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

319

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

1.000 KG

Overview

Product display

Product Comparison

Model:

Size:

Resolution:

Brightness:

Contrast Ratio:

Viewing Angle:

Lamp Type:

Signal Interface:

Panel Type:

TX20D200VM5BAA KOE 8" a-Si TFT-LCD LCM 800(RGB)×480 WVGA 116PPI

TX20D200VM5BAA

800(RGB)×480, WVGA 116PPI

1000 cd/m² (Typ.)

400 : 1 (Typ.) (TM)

80/80/80/80(Typ.)(CR≥10)

WLED, 70K hours, With LED Driver

LVDS(1ch,6-bit),20pinsConnector

a-Si TFT-LCD, LCM

TX20D200VM5BWA LCD Panel Screen

TX20D200VM5BVA 8" LCD Display Screen Panel

TX26D208VM0AAA

800*480

1300 cd/m² (Typ.)

1000 : 1 (Typ.) (TM)

85/85/85/85 (Typ.)(CR≥10)

WLED , 70K hours , With LED Driver

LVDS (2 ch, 8-bit) , 50 pins Connector

a-Si TFT-LCD, LCM

TX20D200VM5BPA KOE 8" a-Si TFT-LCD LCM 800(RGB)×480 WVGA 116PPI

TX20D200VM5BPA

800(RGB)×480, WVGA 116PPI

800 cd/m² (Typ.)

400:1 (Typ.) (TM)

80/80/80/80(Typ.)(CR≥10)

WLED, 70K hours, With LED Driver

LVDS(1ch,6-bit),20pinsConnector

a-Si TFT-LCD, LCM

TX20D200VM5BAA is a 8" a-Si TFT-LCD, LCM Display screen Product from KOE.According to KOE's product specification sheet,TX20D200VM5BAA display has a resolution of 800(RGB)×480, WVGA 116PPI, Contrast Ratio is 400 : 1 (Typ.) (TM),Viewing Angle is 80/80/80/80(Typ.)(CR≥10),Lamp Type is WLED, 70K hours, With LED Driver,Signal Interface is LVDS(1ch,6-bit),20pinsConnector,Brightness is 1000 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TX20D200VM5BAA after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
