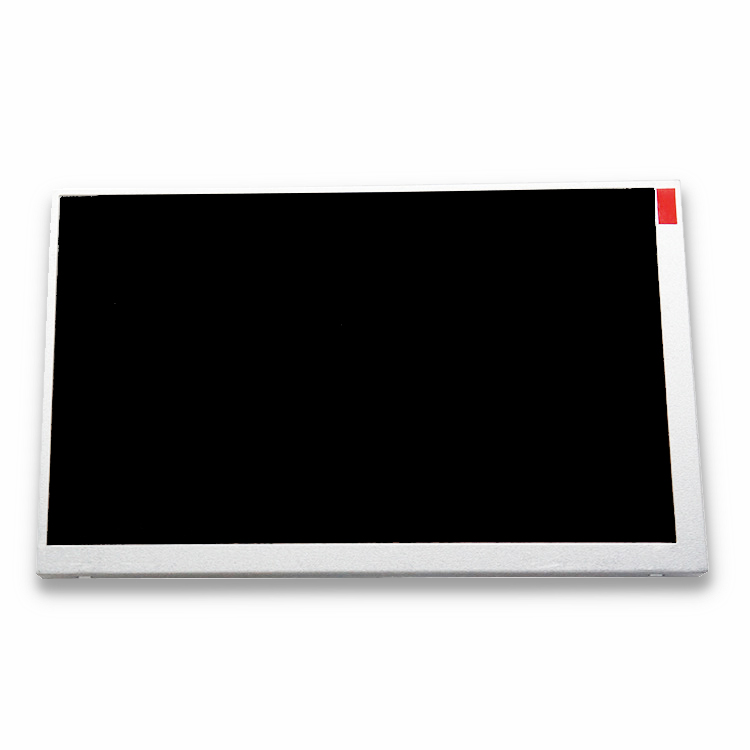

JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays
JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays
Price: $215.00
$210.00/ piece
Add to cart
JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays
JDI TX18D210VM0BXA 7 inch TFT LCD
JDI TX18D210VM0BXA Industrial Displays
JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays
JDI TX18D210VM0BXA 7 inch TFT LCD
JDI TX18D210VM0BXA Industrial Displays

JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays

Price: $215.00
$210.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays

Product Information Product Specifications
Model:
TX18D210VM0BXA
Brand:
KOE/HITACHI
Application:
Industrial
Size:
7"
Resolution:
800(RGB)×480, WVGA 133PPI
Brightness:
1000 cd/m² (Typ.)
Contrast Ratio:
1000 : 1 (Typ.) (TM)
Viewing Angle:
85/85/85/85 (Typ.)(CR≥10)
Lamp Type:
WLED , 50K hours , With LED Driver
Signal Interface:
Parallel RGB (1 ch, 6-bit) , 40 pins Connector
Panel Type:
a-Si TFT-LCD, LCM
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
115
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

Product Introduction

The TX18D210VM0BXA is a 7-inch LTPS TFT-LCD module manufactured by JDI (Japan Display Inc.), originally engineered for industrial applications through KOE (KOE JDI Group). Featuring a WVGA resolution of 800×480 RGB pixels, an IPS Normally Black transmissive display mode, and a wide operating temperature range of -30°C to 80°C, this panel delivers reliable visual performance in demanding environments. With a brightness of 1000 nits, a 1000:1 contrast ratio, 85/85/85/85 viewing angles, and 96% sRGB coverage, the TX18D210VM0BXA provides consistent image quality across wide viewing positions. Its rugged design, 50,000-hour WLED backlight lifetime, and parallel RGB 6-bit interface make it a proven solution for industrial human-machine interface (HMI), test and measurement equipment, and other professional display systems.

Key Features

  • 7-inch LTPS TFT-LCD panel with WVGA (800×480 RGB) resolution

  • IPS Normally Black transmissive display mode for superior color fidelity

  • High brightness of 1000 nits for sunlight-readable industrial environments

  • Wide 85/85/85/85 viewing angles (CR≥10) ensuring image consistency from any direction

  • Wide operating temperature range: -30°C to 80°C

  • Storage temperature range: -40°C to 90°C

  • Contrast ratio of 1000:1 (Typ.)

  • Response time of 30 ms (Typ.) (Tr+Td)

  • Color depth of 262K colors (6-bit) with 96% sRGB coverage (CIE 1931)

  • Color temperature calibrated to 6638K

  • 60Hz refresh rate

  • WLED backlight with 50,000-hour typical lifetime

  • Parallel RGB interface (1 channel, 6-bit)

  • Logic voltage: 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

  • Typical supply voltage: 12.0V

  • Typical power consumption: 4.68W

  • Outline dimensions: 170×113.3 mm (H×V)

  • Active area: 152.4×91.44 mm (H×V)

  • Pixel pitch: 0.0635×0.1905 mm (H×V)

  • Weight: 290g (Typ.)

Technical Specifications

Panel ModelTX18D210VM0BXA
Panel TypeLTPS TFT-LCD, LCM
Display Size7
Resolution800(RGB)×480, WVGA
Pixel Pitch0.0635×0.1905 mm (H×V)
Application FieldIndustrial
Operating Temperature-30 ~ 80 °C
Storage Temperature-40 ~ 90 °C
Brightness1000
Contrast Ratio1000:1 (Typ.) (Transmissive)
Response Time30 (Typ.)(Tr+Td) ms
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Color Depth262K (6-bit)
Color Temperature6638K
Display ModeIPS, Normally Black, Transmissive
Refresh Rate60Hz
sRGB Coverage96% coverage (CIE 1931)
Outline Dimension170×113.3 mm (H×V)
Active Area152.4×91.44 mm (H×V)
Weight290g (Typ.)
Voltage12.0V (Typ.)
Power Consumption4.68W (Typ.)
Backlight TypeWLED
Backlight Lifetime50K (Typ.) hrs
InterfaceParallel RGB (1 ch, 6-bit) Logic Voltage 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

Applications

  • Industrial Human-Machine Interface (HMI) panels

  • Factory automation and process control displays

  • Test and measurement instruments

  • Medical equipment displays

  • In-vehicle and transportation information systems

  • Marine and outdoor portable terminals

  • Building automation control panels

  • Ruggedized computing and field service equipment

Frequently Asked Questions

A: The TX18D210VM0BXA uses LTPS TFT-LCD technology with an IPS Normally Black transmissive display mode, manufactured by JDI (formerly KOE).

Q1: What is the display technology used in the TX18D210VM0BXA?

A: The TX18D210VM0BXA features a 7-inch diagonal screen size with a WVGA resolution of 800×480 RGB pixels.

Q2: What is the resolution and screen size of the TX18D210VM0BXA?

A: The operating temperature range is -30°C to 80°C, and the storage temperature range is -40°C to 90°C, making it suitable for harsh industrial environments.

Q3: What are the operating and storage temperature ranges?

A: The panel offers a brightness of 1000 nits and a contrast ratio of 1000:1 (Typ.) in transmissive mode, suitable for high-ambient-light industrial environments.

Q4: What brightness and contrast ratio does the panel provide?

A: The panel uses a Parallel RGB interface (1 channel, 6-bit) and supports a color depth of 262K colors (6-bit).

Q5: What is the interface type and color depth of the TX18D210VM0BXA?

A: The WLED backlight has a typical lifetime of 50,000 hours, supporting long-term deployment in industrial systems.

Q6: What is the typical backlight lifetime?

A: The TX18D210VM0BXA operates on a typical supply voltage of 12.0V with a typical power consumption of 4.68W.

Q7: What is the typical power consumption and voltage requirement?

A: The outline dimensions are 170×113.3 mm (H×V) with an active area of 152.4×91.44 mm (H×V), and the typical weight is 290g.

Q8: What are the physical dimensions and weight of the module?

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays

JDI TX18D210VM0BXA 7 inch TFT LCD for Industrial Displays

TX18D210VM0BXA

7"
800(RGB)×480, WVGA 133PPI
1000 cd/m² (Typ.)
1000 : 1 (Typ.) (TM)
85/85/85/85 (Typ.)(CR≥10)
WLED , 50K hours , With LED Driver
Parallel RGB (1 ch, 6-bit) , 40 pins Connector
a-Si TFT-LCD, LCM
TCG070WVLQAPGA-AC00   Kyocera  7inch  tft lcd module

TCG070WVLQAPGA-AC00 Kyocera 7inch tft lcd module

TCG070WVLQAPGA-AC00

7"
800*480
280
500:1
85/85/85/85
WLED
40 pins
a-Si TFT-LCD, LCM
TX18D210VM0BXA is a 7" a-Si TFT-LCD, LCM Display screen Product from KOE/HITACHI.According to KOE/HITACHI's product specification sheet,TX18D210VM0BXA display has a resolution of 800(RGB)×480, WVGA 133PPI, Contrast Ratio is 1000 : 1 (Typ.) (TM),Viewing Angle is 85/85/85/85 (Typ.)(CR≥10),Lamp Type is WLED , 50K hours , With LED Driver,Signal Interface is Parallel RGB (1 ch, 6-bit) , 40 pins Connector,Brightness is 1000 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TX18D210VM0BXA after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
