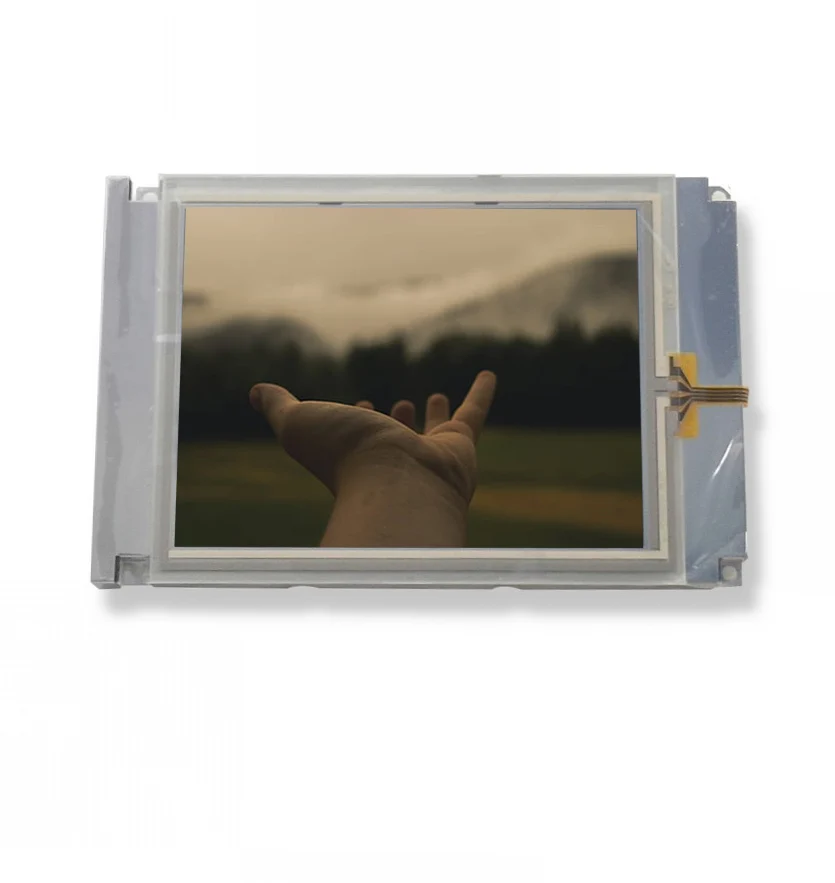

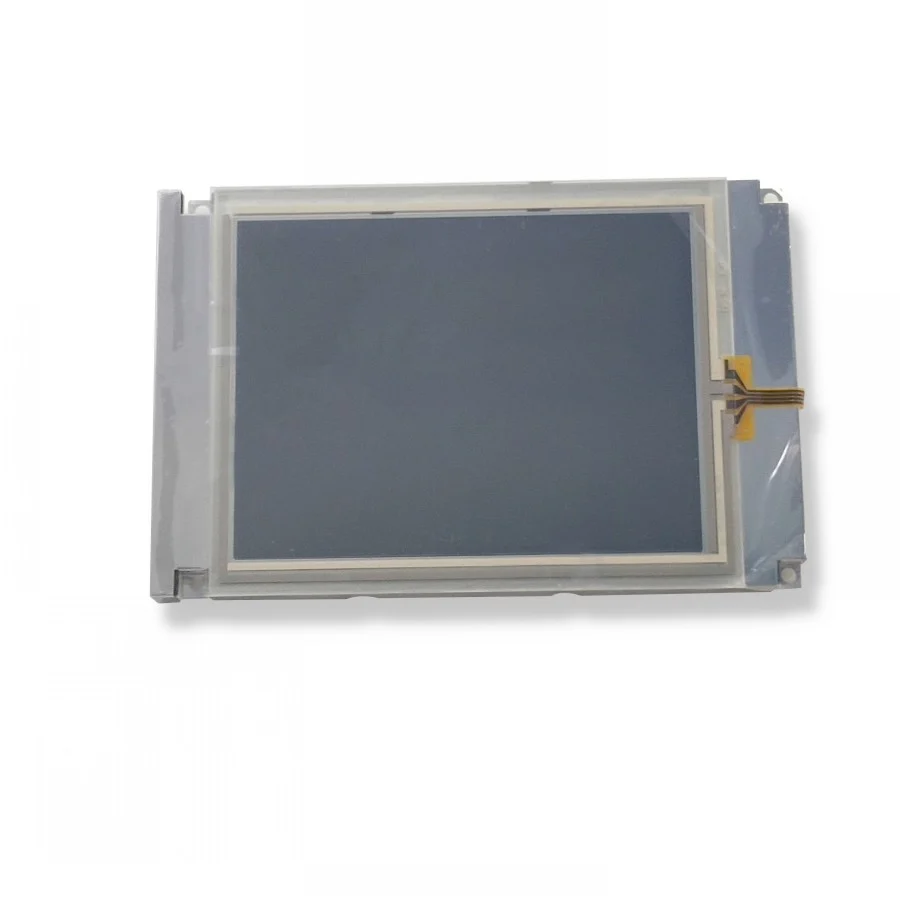

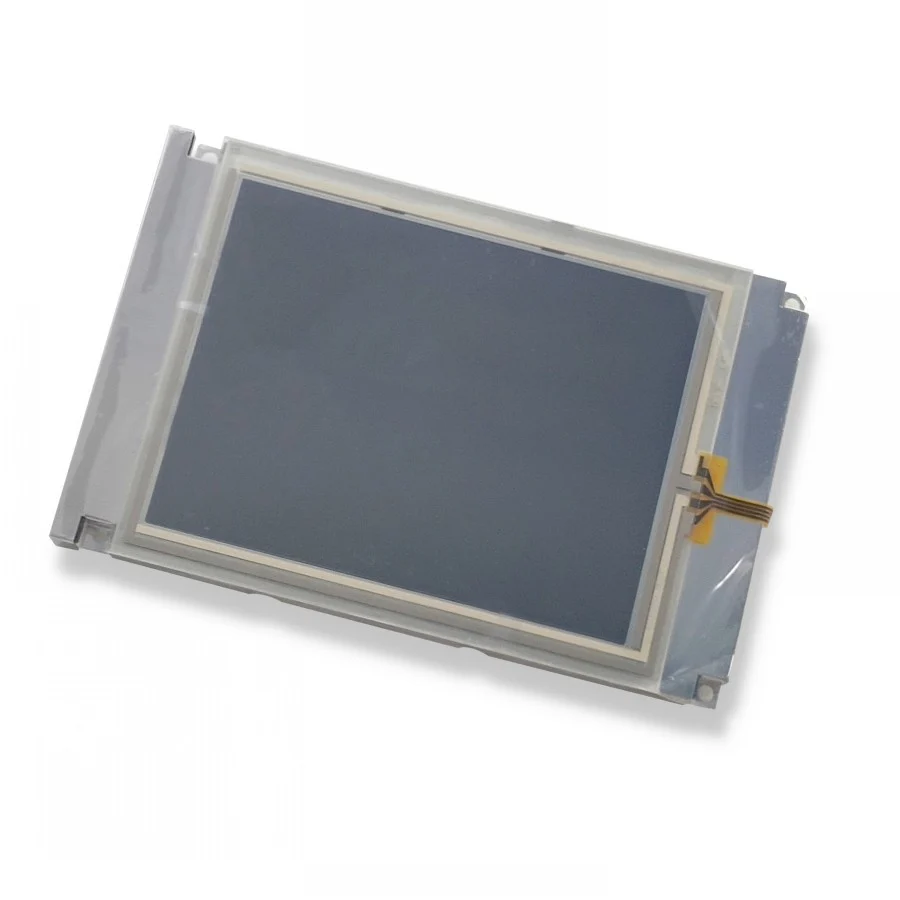

TX14D26VM1BPA KOE 5.7 Inch 320×240 LCD Display Screen
TX14D26VM1BPA KOE 5.7 Inch 320×240 LCD Display Screen
Price: $230.00
$225.00/ piece
Add to cart
TX14D26VM1BPA KOE
TX14D26VM1BPA KOE
TX14D26VM1BPA KOE
TX14D26VM1BPA KOE
TX14D26VM1BPA KOE
TX14D26VM1BPA KOE

TX14D26VM1BPA KOE 5.7 Inch 320×240 LCD Display Screen

Price: $230.00
$225.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

TX14D26VM1BPA KOE 5.7 Inch 320×240 LCD Display Screen

Product Information Product Specifications
Model:
TX14D26VM1BPA
Brand:
KOE/HITACHI
Application:
Industrial
Size:
5.7"
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
600
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
0.000 KG
Overview

 Product Overview

Full Model: TX14D26VM1BPA

Manufacturer: KOE (Kyushu Optoelectronics, Japan)

Size: 5.7 inch 4:3 landscape industrial TFT-LCD module

Native Resolution: 320(RGB) × 240 QVGA

Panel Tech: TN a-Si TFT-LCD, Normally White Transmissive

Signal Interface: 40Pin CMOS 18-bit parallel RGB TTL

Backlight: Edge WLED, onboard integrated LED driver circuit

Touch: Bare LCD module; compatible with 4-wire resistive touch overlay

Stock Status: Brand new original Grade A modules, full pixel inspection + long-time aging test before delivery

Complete Technical Specification Table

Basic Display InfoDiagonal: 5.7 inchAspect Ratio: 4:3Resolution: 320 × 240 QVGAActive View Area: 115.2(W) × 86.4(H) mmPixel Pitch: 0.36 × 0.36 mmPixel Arrangement: Vertical RGB stripeDisplay Mode: TN Normally White Transmissive
Mechanical DimensionsOverall Outline: 131.0(W) × 102.2(H) × 8.6(D) mmNet Weight: ~150gSurface: Matte Anti-Glare + 3H scratch-resistant hard coatingCompact metal mounting frame
Optical PerformanceTypical Brightness: 320 cd/m²Contrast Ratio: 350:1 (Typ.)Viewing Angle (CR≥10): L/R 80°, U 80°, D 60°Color Depth: 6-bit RGB, 262K display colorsResponse Time (Tr+Td): 30ms typicalRefresh Rate: Fixed 60HzOptimal viewing direction: 12 o’clock
Electrical InterfaceConnector: 40Pin 0.5mm pitch CMOS parallel RGB FPCLCD Logic Voltage: DC 3.3VBacklight Input: DC 12VLCD Power Consumption: 0.27WBacklight Power Consumption: 1.68W
Backlight SystemLight Source: 21pcs SMD WLED (3 series ×7 parallel)Onboard LED constant current driver (no external LED driver needed)LED Service Life: ≥50,000 hours to half brightnessControl: BL_EN enable + PWM 0~100% continuous dimming
Environmental RatingOperating Temperature: -20 ℃ ~ +70 ℃ Wide industrial gradeStorage Temperature: -30 ℃ ~ +80 ℃Humidity: 10% ~ 90% RH non-condensingVibration Resistance: Industrial equipment anti-shock standard


 Product Advantages

  1. Japanese KOE original wide-temperature industrial screen, stable performance under low & high temperature workshop environments

  2. Built-in WLED constant current drive circuit, only DC12V backlight power + DC3.3V logic power required, simplify system wiring

  3. Matte anti-glare polarizer, effectively eliminate workshop lamp reflection, clear graphic and text display

  4. Ultra-wide working temperature range (-20~+70℃), suitable for construction machinery, outdoor test equipment

  5. Standard 40Pin parallel RGB industrial interface, compatible with many classic industrial controllers and HMI mainboards

  6. Compact thin structure, convenient embedded installation for small-size control panels

  7. Mature maintenance replacement model for Japanese automation equipment

Typical Application Scenarios

  1. Industrial CNC controllers, injection molding machinery, textile equipment operation panel screen replacement

  2. Construction machinery, agricultural machinery, forklift vehicle-mounted display terminal

  3. Portable field testing instruments, laboratory analytical equipment graphic display

  4. Elevator control cabinet, new energy charging equipment parameter display

  5. Small medical auxiliary monitoring equipment

  6. Maintenance spare parts for KOE 5.7-inch QVGA TFT LCD series

FAQ

Q1: Does TX14D26VM1BPA need an external LED driver board?

A1: No. The module integrates WLED constant current circuit on PCB. Just supply DC12V to power the backlight.

Q2: What temperature range can this panel operate normally?

A2: Wide industrial grade: -20℃ ~ +70℃, supports low-temperature startup for vehicle & outdoor industrial devices.

Q3: What resolution and interface type is this module?

A3: 320×240 QVGA, 40Pin 18-bit CMOS parallel RGB TTL interface. Not LVDS/eDP.

Q4: Does this LCD come with touch screen?

A4: Standard product supplies bare LCD module. Resistive touch panel can be bonded separately upon request.

Q5: Can it replace TX14D12VM1C series?

A5: Same resolution, but mechanical outline, pinout and backlight type differ; cannot directly plug and play.





Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
TX14D26VM1BPA KOE 5.7 Inch 320×240 LCD Display Screen

TX14D26VM1BPA KOE 5.7 Inch 320×240 LCD Display Screen

TX14D26VM1BPA

5.7"
 TX14D17VM1BPB HITACHI 5.7 inch 640*480 lcd display panel

 TX14D17VM1BPB HITACHI 5.7 inch 640*480 lcd display panel

 TX14D17VM1BPB

5.7"
640(RGB)×480, VGA, 4:3
280 cd/m² (Typ.)
350:1 (Typ.) (TM)
70/70/70/70 (Typ.)(CR≥5)
3S7P WLED, 40K hrs, Without Driver
CMOS (1 ch, 6-bit), 40 pins Connector
a-Si TFT-LCD, LCM
TX14D26VM1BPA is a 5.7" Display screen Product from KOE/HITACHI.According to KOE/HITACHI's product specification sheet,TX14D26VM1BPA display has a resolution of , Contrast Ratio is ,Viewing Angle is ,Lamp Type is ,Signal Interface is ,Brightness is .Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TX14D26VM1BPA after packaging is 0.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
