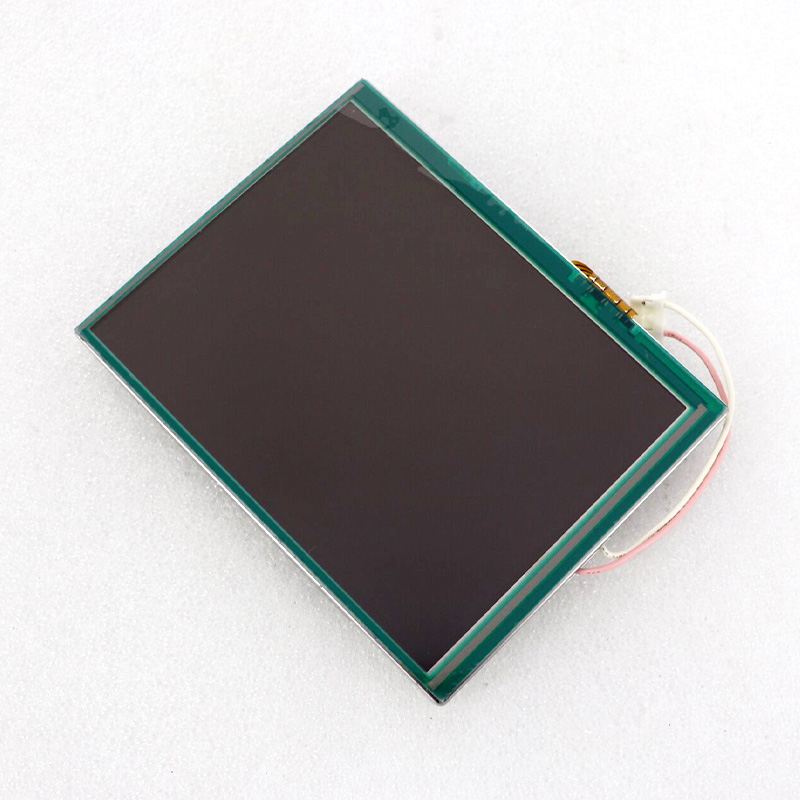

TX14D14VM1BPB KOE 5.7" a-Si TFT-LCD LCM 640(RGB)×480 VGA 141PPI

TX14D14VM1BPB KOE 5.7" a-Si TFT-LCD LCM 640(RGB)×480 VGA 141PPI

Price: $177.00

$175.00/ Price

Delivery:

Payment:

Calculate shipping price

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

Specifications Ordering instructions Overview Q&A Reviews

TX14D14VM1BPB KOE 5.7" a-Si TFT-LCD LCM 640(RGB)×480 VGA 141PPI

Product Information Product Specifications

Model:

TX14D14VM1BPB

Brand:

KOE

Application:

Industrial

Size:

5.7"

Resolution:

640(RGB)×480, VGA 141PPI

Brightness:

280 cd/m² (Typ.)

Contrast Ratio:

350 : 1 (Typ.) (TM)

Viewing Angle:

70/70/70/70(Typ.)(CR≥5)

Lamp Type:

3S7PWLED, No Driver

Signal Interface:

CMOS(1ch,6-bit),Connector40pins

Panel Type:

a-Si TFT-LCD, LCM

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) mm

Bezel Opening:

119.4(W)×90.6(H) mm

Outline size:

131×102.2×13.6 (H×V×D)

Surface:

Antiglare

Response Time:

45 (Typ.)(Tr+Td) ms

Best View on:

12o'clock

Work Mode:

TN, Normally White, Transmissive

Display Colors:

262K57%NTSC

Weight:

200g(Typ.)

Frequency:

60Hz

Touchscreen:

4-wire Resistive Touch

Signal Type:

CMOS(1ch,6-bit),Connector40pins

Voltage Supply:

3.3V(Typ.)

Ordering instructions

Quality:

test ok before ship it

RMA Policy:

RMA 6 month

Sample:

Paid Sample

Stock:

311

Stock Location:

China

Delivery:

WorldWide

Lead Time:

1-3 Days

Weight:

0.500 KG

Overview

Product display

TX14D14VM1BPB is a 5.7" a-Si TFT-LCD, LCM Display screen Product from KOE.According to KOE's product specification sheet,TX14D14VM1BPB display has a resolution of 640(RGB)×480, VGA 141PPI, Contrast Ratio is 350 : 1 (Typ.) (TM),Viewing Angle is 70/70/70/70(Typ.)(CR≥5),Lamp Type is 3S7PWLED, No Driver,Signal Interface is CMOS(1ch,6-bit),Connector40pins,Brightness is 280 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TX14D14VM1BPB after packaging is 0.500KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
