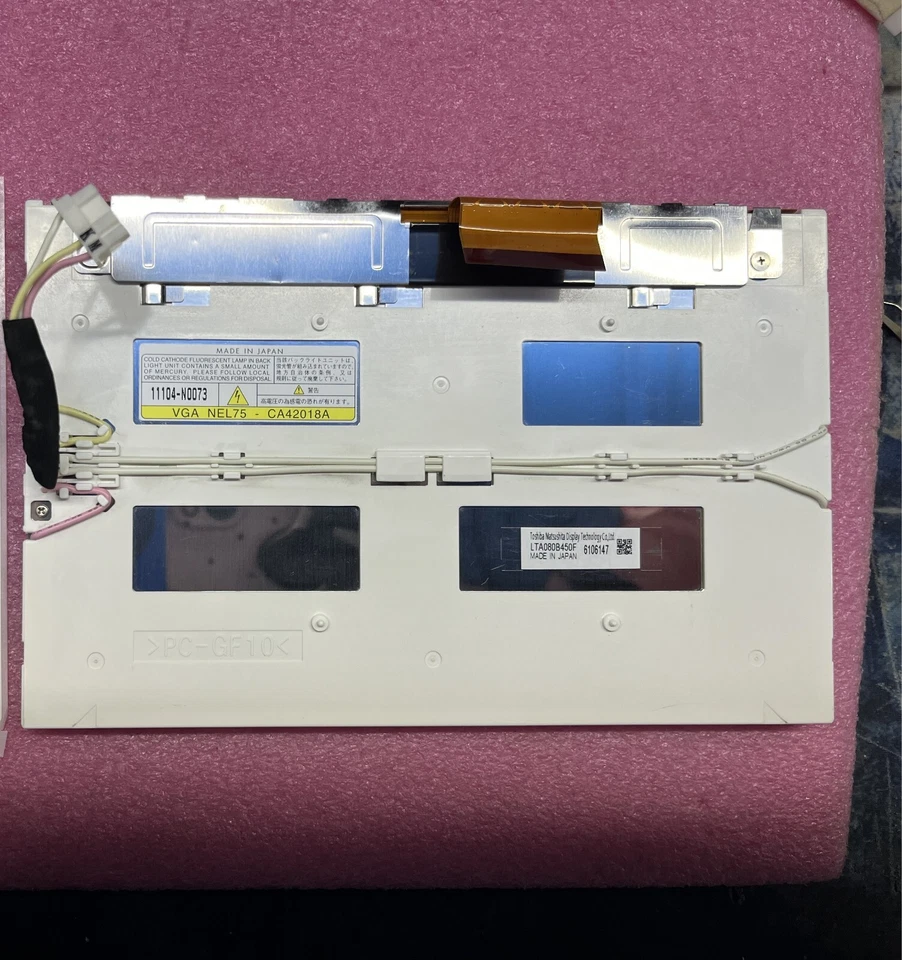

LTA080B451F

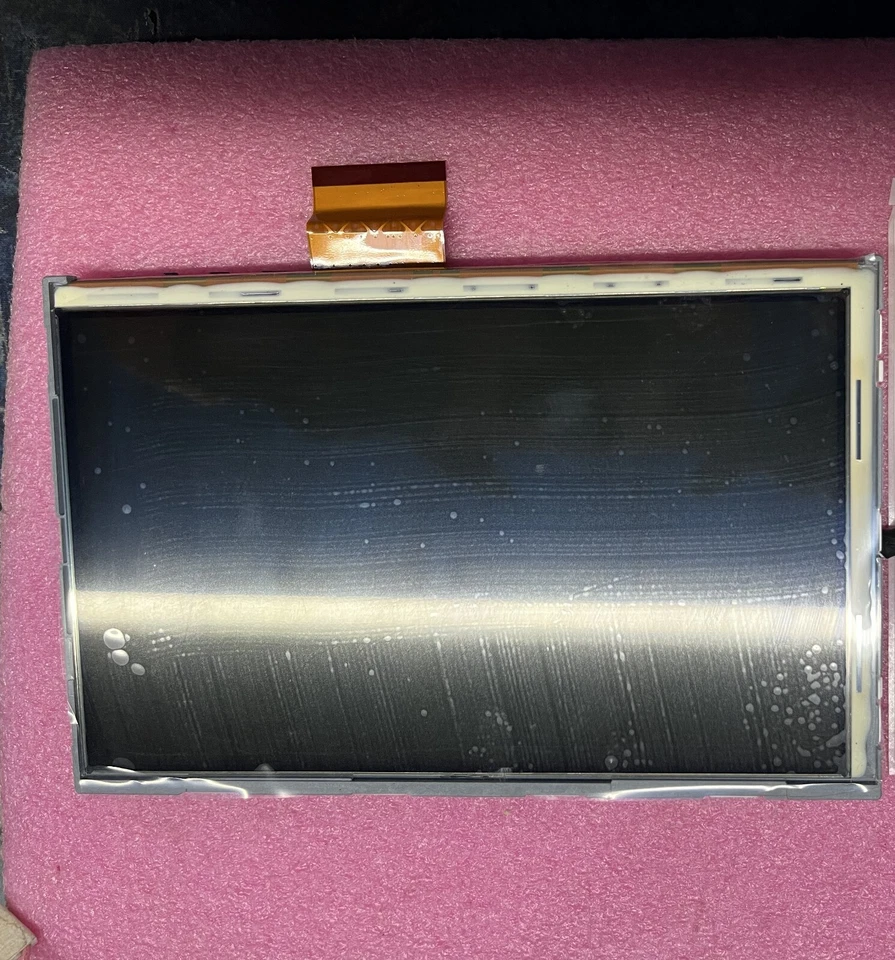

LTA080B451F(1)
LTA080B451F
LTA080B451F(1)

Toshiba LTA080B451F 8.0" Industrial TFT LCD Display Panel in stock

Price: $155.00
$149.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Toshiba LTA080B451F 8.0" Industrial TFT LCD Display Panel in stock

Product Information Product Specifications
Model:
LTA080B451F
Brand:
Toshiba
Application:
Industrial
Size:
8"
Resolution:
800×480 (WVGA)
Brightness:
350 cd/m²
Contrast Ratio:
500:1
Viewing Angle:
70/70/70/70
Lamp Type:
CCFL
Signal Interface:
LVDS
Panel Type:
Color TFT LCD (LCM)
Support Color:
262K
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
365
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

LTA080B451F is Toshiba mass-produced high-brightness 8-inch WVGA TFT liquid crystal module, customized for Toyota/Lexus vehicle instrument and navigation systems, and widely reused for miniature industrial control equipment due to its -30℃~+85℃ extreme wide temperature tolerance and stable static image performance.


320 cd/m² high brightness delivers clear readable images under natural sunlight penetrating car windows and indoor factory ambient light, no extra shading hood required. Standard 16:9 800×480 WVGA resolution perfectly adapts to dashboard speed data, navigation maps, reversing camera feeds, industrial multi-column parameter tables and equipment alarm UI without picture cropping or compression.
CategoryParameterStandard Value
Basic InfoFull ModelLTA080B451F (Compatible: LTA080B450F)

ManufacturerToshiba Matsushita Display (TMD) Japan

Diagonal Size8.0 inch, 16:9 wide screen

Native Resolution800(RGB) × 480 WVGA, 116 PPI

Panel Techa-Si TN TFT-LCD, Transmissive, Normally White

Pixel ArrangementRGB Vertical Stripe
Optical SpecPixel Pitch0.2175mm(W) × 0.2175mm(H)

Typical Brightness320 cd/m² high automotive brightness

Contrast Ratio350:1 (25℃ transmissive mode)

Color Depth6-bit single channel, total 262K display colors, 43% NTSC gamut

Viewing Angle (CR≥10)L/R:60°, U:50°, D:60°; Optimal viewing: 6 o’clock lower front

Total Response Time (Tr+Td)35ms typical
Mechanical SpecActive Display Area (AA)174.0mm(W) × 104.4mm(H)

Overall Outline Dimension190.0(W) × 120.0(H) × 10.8(D) mm

Net Weight~405g compact module

Surface TreatmentStandard transparent polarizer, matte AG anti-glare film optional
Interface & ElectricalSignal Interface50Pin orange flexible FPC analog parallel RGB TTL, 5V logic supply voltage
Backlight SystemBacklight TypeSingle L-shaped edge CCFL tube

Onboard Drive ICNo built-in CCFL high-voltage driver; external single-channel CCFL inverter mandatory

CCFL Lifespan40,000 hours under rated driving current
Environmental RatingOperating Temperature-30 ℃ ~ +85 ℃ automotive ultra-wide grade

Storage Temperature-40 ℃ ~ +85 ℃

Operating Humidity10% ~ 90% RH non-condensing
OEM MatchingToyota / Lexus original instrument cluster & car navigation host
Quality & StockQuality GradeOriginal A+ grade: zero bright/dark dot, no horizontal/vertical line defect, uniform backlight without light leakage & color cast

Stock StatusIn-Stock, full pre-delivery pixel aging + signal continuity test, ship within 1–3 working days
ComplianceCertificationRoHS Lead-Free Certified, mercury-containing CCFL backlight
Touch MatchingTouch ConfigurationBare LCD without touch layer; separate 8" 4-wire resistive touch for optical bonding

Core Key Advantages

  1. -30℃ ~ +85℃ ultra-wide automotive temperature: Stable startup and operation in freezing car cabins, high-temperature dashboards and unheated field portable industrial equipment

  2. 100% interchangeable with LTA080B450F, direct plug-and-play replacement for Toyota/Lexus original instrument & navigation screens

  3. 320 cd/m² high brightness, readable under weak outdoor sunlight without anti-glare hood

  4. Universal 800×480 WVGA resolution, compatible with most automotive and mini industrial control software UI

  5. Mature single CCFL backlight design, long service life, low failure rate for 24h continuous display equipment

  6. Dual-scenario application: automotive instrument/navigation + compact industrial handheld test terminals, wide compatibility range

  7. Warehouse In-Stock fast delivery, A+ original surplus stock, complete pre-shipment optical aging test report attached

Typical Application Scenarios

  1. Toyota / Lexus original dashboard instrument cluster, car navigation multimedia host broken screen replacement

  2. Vintage Japanese luxury car reversing visual auxiliary display repair screen

  3. Compact portable industrial field maintenance diagnostic handheld testing instruments

  4. Mini packaging, textile auxiliary machine small PLC parameter monitoring HMI panel

  5. Environmental mini data loggers, portable temperature/pressure precision measuring instrument display

  6. Replacement spare panel for Toshiba LTA080B45x series 8-inch CCFL WVGA TFT modules

 FAQ

Q1: Does LTA080B451F need external CCFL inverter?

A1: Yes, equipped with single L-shaped CCFL tube without onboard high voltage drive circuit. A matched single-channel CCFL high-voltage inverter is mandatory; WLED driver boards cannot be directly compatible.

Q2: What model can fully interchange LTA080B451F?

A2: LTA080B450F is 100% plug-and-play interchangeable, same dimension, resolution, 50Pin pinout and optical parameters.

Q3: Can this panel directly connect LVDS / HDMI driver boards?

A3: Its native signal interface is 50Pin analog parallel RGB TTL; extra parallel-to-LVDS/HDMI conversion board is required for digital video signal conversion.

Q4: What temperature environment is this panel suitable for?

A4: Operating temperature -30℃ ~ +85℃, specially designed for automotive cabin and semi-outdoor portable field equipment; avoid long-term direct strong sunlight exposure to accelerate CCFL backlight aging.

Q5: Does the module come with touch screen by default?

A5: Bare LCD module only without touch sensor layer. To build touch navigation/industrial HMI, separate matched 8-inch 4-wire resistive touch digitizer needs optical bonding.

Q6: Is the product in stock and deliverable quickly?

A6: Yes, sufficient A+ fully tested original modules are stored in warehouse, can be shipped within 1–3 working days after order confirmation, every unit completes full pixel aging test before delivery.


Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
Toshiba LTA080B451F 8.0" Industrial TFT LCD Display Panel in stock

Toshiba LTA080B451F 8.0" Industrial TFT LCD Display Panel in stock

LTA080B451F

8"
800×480 (WVGA)
350 cd/m²
500:1
70/70/70/70
CCFL
LVDS
Color TFT LCD (LCM)
Toshiba LTA080B923F 8.0" Industrial TFT LCD Display Panel

Toshiba LTA080B923F 8.0" Industrial TFT LCD Display Panel

LTA080B923F

800×480 (WVGA)
350 cd/m²
500:1
70/70/70/70
CCFL
LVDS
Color TFT LCD (LCM)
LTA080B441A Toshiba 8" a-Si TFT-LCD  LCM 480(RGB)×234

LTA080B441A Toshiba 8" a-Si TFT-LCD LCM 480(RGB)×234

LTA080B441A

8"
480(RGB)×234 67PPI
350 cd/m² (Typ.)
300 : 1 (Typ.) (TM)
60/60/30/60(Typ.)(CR≥10)
1 pcsCCFL, 10K hours, No Driver
TFTSpecificAnalogRGB,30pinsFPC
a-Si TFT-LCD, LCM
LTA080B451F is a 8" Color TFT LCD (LCM) Display screen Product from Toshiba.According to Toshiba's product specification sheet,LTA080B451F display has a resolution of 800×480 (WVGA), Contrast Ratio is 500:1,Viewing Angle is 70/70/70/70,Lamp Type is CCFL,Signal Interface is LVDS,Brightness is 350 cd/m².Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of LTA080B451F after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
