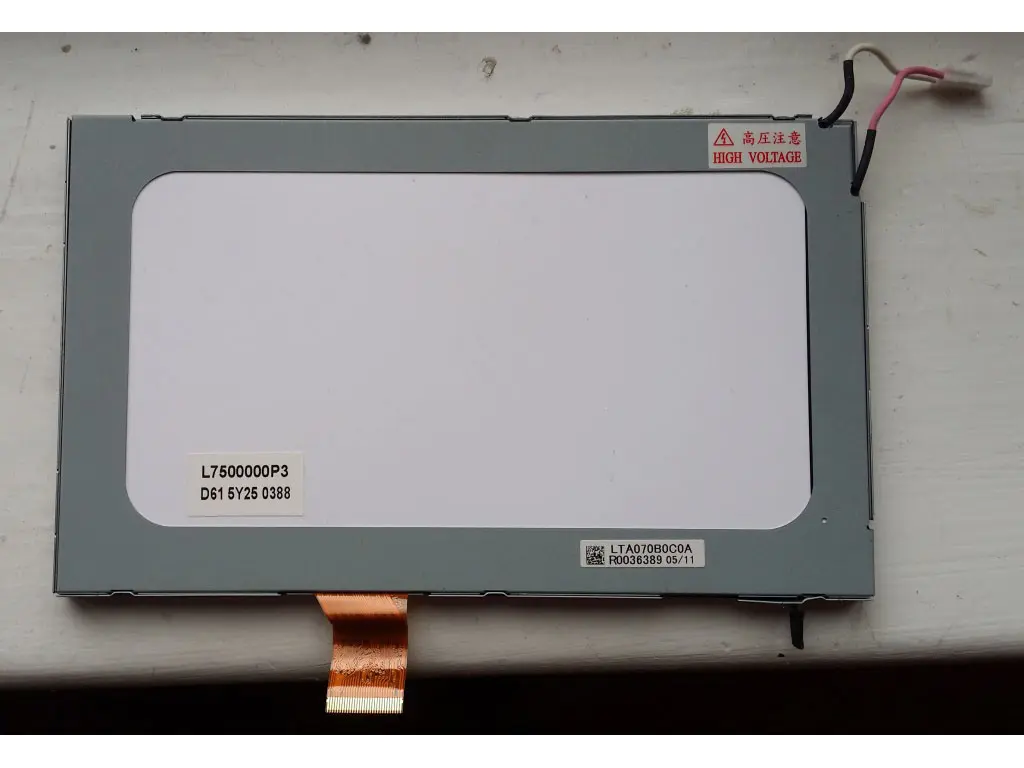

Toshiba LTA070B0C0A 7.0"80(RGB)×234  Industrial TFT LCD Display Panel in Stock
Toshiba LTA070B0C0A 7.0"80(RGB)×234 Industrial TFT LCD Display Panel in Stock
Price: $125.00
$117.00/ piece
Add to cart
LTA070B0C0A
LTA070B0C0A
LTA070B0C0A
LTA070B0C0A

Toshiba LTA070B0C0A 7.0"80(RGB)×234 Industrial TFT LCD Display Panel in Stock

Price: $125.00
$117.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Toshiba LTA070B0C0A 7.0"80(RGB)×234 Industrial TFT LCD Display Panel in Stock

Product Information Product Specifications
Model:
LTA070B0C0A
Brand:
Toshiba
Application:
Industrial
Size:
7"
Resolution:
480×234
Brightness:
400 cd/m²
Contrast Ratio:
300:1
Viewing Angle:
60/60/30/60
Lamp Type:
CCFL
Signal Interface:
Analog
Panel Type:
Color TFT LCD (LCM)
Support Color:
Full color
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
99
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview
LTA070B0C0A is Toshiba classic narrow vertical 7-inch TFT liquid crystal module, originally mass-produced for consumer portable display devices and later widely repurposed for compact industrial control equipment due to stable wide-temperature optical performance and compact outline size.
300 cd/m² moderate brightness ensures legible display under weak indoor workshop and vehicle cabin ambient light, no extra shading hood needed. Special narrow vertical 480×234 resolution fits compact device UI layout for parameter tables, real-time numerical data, simple trend curves and small navigation auxiliary screens without UI cropping.
ParameterTechnical Specification
Full ModelLTA070B0C0A (Compatible: LTA070B0C1A)
ManufacturerToshiba Matsushita Display (TMD) Japan
Diagonal Size7.0 inches, narrow vertical wide screen
Native Resolution480(RGB) × 234, 76 PPI
LCD Technologya-Si TN TFT-LCD, Transmissive, Normally White
Pixel ArrangementRGB Vertical Stripe
Active Display Area (AA)154.08 mm (W) × 86.58 mm (H)Alibaba.co...
Overall Outline Dimension166.0 mm (W) × 100.0 mm (H) × 10.6 mm thickness
Net Weight~175g lightweight compact module
Color Performance6-bit single channel, 262K display colors
Signal Interface30Pin FPC analog parallel RGB TTL, multi power input: 3.3V/5V/VGON/VEE
Backlight SystemSingle edge single CCFL tube, no onboard CCFL drive IC, external single-channel high voltage CCFL inverter requiredRated Lifespan: 10,000 hours typical
Typical Brightness300 cd/m² standard industrial brightness
Typical Contrast Ratio300:1 (Transmissive Mode)
Viewing Angle (CR≥10, L/R/U/D)60° / 60° / 30° / 60°, Optimal viewing: 6 o’clock front lower
Response Time (Tr / Td)11ms / 22ms typical
Standard Refresh Rate60Hz fixed
Surface TreatmentMatte anti-glare polarizer, reduce ambient light reflection
Operating Temperature Range-20 ℃ ~ +70 ℃ industrial wide grade
Storage Temperature Range-30 ℃ ~ +80 ℃
Touch PanelBare LCD without built-in touch; dedicated 7-inch 4-wire resistive touch optional optical bonding
Original OEM ApplicationPortable DVD, digital photo frame, miniature industrial control terminal
Quality GradeOriginal A+ grade, zero bright dot, dark dot, vertical/horizontal line defect, uniform backlight without light leakage
Stock StatusIn-Stock, full pre-delivery aging & signal test, ship within 1–3 working days
Compliance StandardRoHS Lead-Free Certified, mercury-containing CCFL backlight
Product StatusEOL Discontinued legacy narrow-format TFT panel, tested A-grade spot stock only

Core Product Advantages

  1. -20℃ ~ +70℃ wide industrial temperature: Adapt to cold unheated workshops, high-temperature closed equipment cabinets and vehicle-mounted auxiliary display cabins

  2. Unique narrow vertical 480×234 resolution, perfectly match compact small-size equipment original UI layout

  3. Matte anti-glare surface, effectively eliminate workshop lamp and window light reflection interference

  4. Compact lightweight design, fit narrow internal cavity of portable testing & consumer devices

  5. Mature single CCFL backlight structure, stable long-term static image display with low failure rate

  6. Dual-scenario application for consumer portable equipment and miniature industrial control terminals, wide matching range

  7. Warehouse In-Stock fast delivery, A+ original surplus stock, complete pre-shipment quality test with inspection report

Typical Application Scenarios

  1. Vintage portable DVD player, digital photo frame broken screen replacement

  2. Mini packaging, textile auxiliary machine small PLC parameter monitoring HMI panel

  3. Compact portable industrial field maintenance diagnostic handheld testing instruments

  4. Environmental mini data loggers, portable temperature/humidity recording display terminal

  5. Old car auxiliary rearview / small navigation secondary display repair screen

  6. Replacement spare panel for Toshiba LTA070B0Cx series 7-inch narrow-format CCFL TFT modules

FAQ

Q1: Does LTA070B0C0A need an external CCFL inverter?

A1: Yes, equipped with single edge CCFL tube without onboard high voltage drive circuit. A matched single-channel CCFL high-voltage inverter is mandatory; WLED driver boards cannot be directly compatible.

Q2: What model can fully replace LTA070B0C0A?

A2: LTA070B0C1A is fully plug-and-play interchangeable, same dimension, resolution, 30Pin pinout and optical parameters.

Q3: Can this panel connect LVDS/HDMI driver boards directly?

A3: It only supports 30Pin analog parallel RGB TTL input; extra parallel-to-LVDS/HDMI conversion board is required for digital video signal conversion.

Q4: What temperature environment can this panel adapt to?

A4: Operating temperature -20℃ ~ +70℃, suitable for indoor industrial workshops and vehicle auxiliary display; avoid long-term direct strong sunlight exposure to accelerate CCFL backlight aging.

Q5: Does this module come with touch screen by default?

A5: Bare LCD only without integrated touch sensor. To build touch HMI/monitor, separate matched 7-inch 4-wire resistive touch digitizer needs optical bonding.

Q6: Is the product in stock and deliverable quickly?

A6: Yes, sufficient A+ fully tested original panels are stored in warehouse, can be shipped within 1–3 working days after order confirmation, each unit comes with full function test record.
