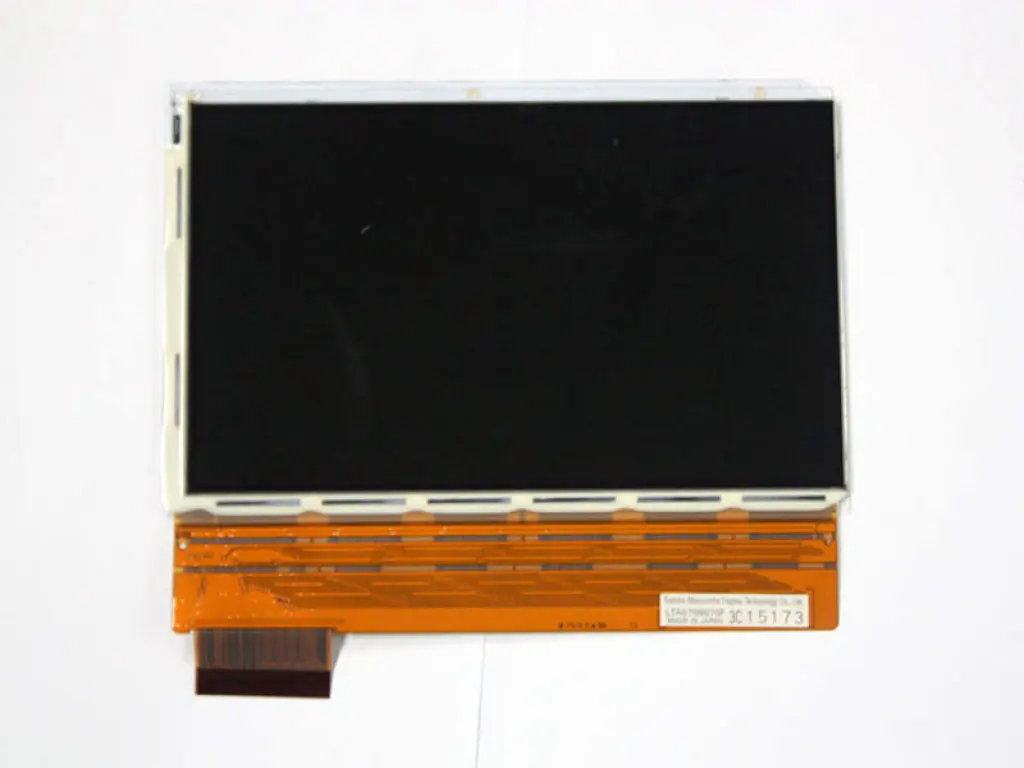

Toshiba LTA070B070F 7.0" 800x480 WVGA Industrial TFT LCD in stock
Toshiba LTA070B070F 7.0" 800x480 WVGA Industrial TFT LCD in stock
Price: $130.00
$125.00/ piece
Add to cart
LTA070B070F
LTA070B070F

Toshiba LTA070B070F 7.0" 800x480 WVGA Industrial TFT LCD in stock

Price: $130.00
$125.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

Toshiba LTA070B070F 7.0" 800x480 WVGA Industrial TFT LCD in stock

Product Information Product Specifications
Model:
LTA070B070F
Brand:
Toshiba
Application:
Industrial
Resolution:
800×480 (WVGA)
Brightness:
N/A (Open Cell, B/L Not Included)
Contrast Ratio:
250:1
Viewing Angle:
55/55/30/60
Lamp Type:
N/A (Open Cell)
Signal Interface:
TTL
Panel Type:
Color TFT LCD (Open Cell, B/L Not Included)
Support Color:
262K
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
99
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

LTA070B070F is Toshiba ultra-thin bare liquid crystal cell, mass-produced for portable consumer display devices, and widely reused for miniature industrial handheld test equipment due to ultra-thin outline and wide temperature tolerance.


Standard 800×480 WVGA resolution perfectly adapts to mainstream portable device and compact industrial control UI layout, supporting navigation graphics, real-time data tables, trend curves and equipment alarm interfaces without UI cropping or compression. 30Pin 3.3V parallel RGB interface is compatible with old portable device mainboards and miniature industrial single-chip MCU control circuits, no complicated signal conversion board required for direct replacement.
ParameterTechnical Specification
Full ModelLTA070B070F
ManufacturerToshiba Matsushita Display (TMD) Japan
Diagonal Size7.0 inches, 16:9 wide screen
Native Resolution800(RGB) × 480 WVGA, 133 PPI
LCD Technologya-Si TN TFT-LCD, Transmissive, Normally White
Pixel ArrangementRGB Vertical Stripe
Pixel Pitch0.1905 × 0.1905 mm
Color Performance6-bit single channel, 262K display colors
Signal Interface30Pin FPC analog parallel RGB TTL, VDD=3.3V logic voltage
Backlight ConfigurationCELL ONLY, No onboard backlight (external independent CCFL/WLED backlight required)
Typical BrightnessDepends on matched external backlight
Typical Contrast Ratio250:1
Viewing Angle (CR≥10, L/R/U/D)60° / 60° / 30° / 60°, Optimal viewing: 6 o’clock front lower
Total Response Time (Tr+Td)33 ms typical
Standard Refresh Rate60Hz fixed
Active Display Area (AA)152.4 mm (W) × 91.44 mm (H)
Overall Outline Dimension163.4 mm (W) × 106.1 mm (H) × 1.89 mm ultra-thin thickness
Net Weight~95g ultra-light bare cell
Surface TreatmentStandard transparent polarizer, matte AG anti-glare film optional
Operating Temperature Range-10 ℃ ~ +85 ℃ wide industrial & portable device grade
Storage Temperature Range-20 ℃ ~ +85 ℃
Touch PanelBare LCD cell without built-in touch; separate 7-inch 4-wire resistive touch for optical bonding
Original OEM ApplicationPortable DVD, digital photo frame, mini UMPC/netbook, handheld portable equipment
Quality GradeOriginal A+ grade, zero bright dot, dark dot, line defect, no color cast
Stock StatusIn-Stock, full pre-delivery aging & signal test, ship within 1–3 working days
Compliance StandardRoHS Lead-Free Certified
Product StatusEOL Discontinued bare LCD cell, tested A-grade spot stock only

Core Product Advantages

  1. -10℃ ~ +85℃ ultra-wide temperature: Adapt to low-temperature portable handheld equipment, high-temperature workshop small control cabinets

  2. Ultra-thin 1.89mm bare cell, only 95g lightweight, perfect for narrow cavity compact devices

  3. Standard 800×480 WVGA universal resolution, compatible with most portable & mini industrial control UI programs

  4. 30Pin 3.3V parallel RGB interface, low power consumption, good compatibility with vintage MCU drive boards

  5. Dual-scenario application for consumer portable display and compact industrial handheld test terminals

  6. Warehouse In-Stock fast delivery, A+ original bare cell stock, full pre-shipment pixel & aging inspection report

  7. Flexible matching of external CCFL/WLED backlight, freely adjust brightness according to application scenarios

 Typical Application Scenarios

  1. Vintage portable DVD, digital photo frame broken bare cell replacement

  2. Mini UMPC/netbook small auxiliary display screen repair

  3. Compact portable industrial field maintenance diagnostic handheld testing instruments

  4. Mini packaging, textile auxiliary machine small PLC parameter monitoring display module

  5. Environmental mini data loggers, portable temperature/humidity recording terminal

  6. Replacement bare cell for Toshiba LTA070B07x series 7-inch WVGA thin TFT LCD

FAQ

Q1: Does LTA070B070F come with backlight assembly?

A1: No, this model is pure LCD bare CELL without any built-in backlight. You need to purchase external independent CCFL or WLED backlight separately.

Q2: What power supply voltage does the signal interface use?

A2: Signal VDD is standard 3.3V, compatible with most portable device and small industrial mainboard output.

Q3: Can this cell connect LVDS/HDMI driver boards directly?

A3: It only supports 30Pin analog parallel RGB TTL input; extra parallel-to-LVDS/HDMI conversion board is required for digital video signal conversion.

Q4: What temperature environment can this bare cell adapt to?

A4: Operating temperature -10℃ ~ +85℃, suitable for portable handheld devices and indoor industrial small equipment; avoid long-term direct strong sunlight exposure.

Q5: Does this module come with touch screen by default?

A5: Pure bare LCD cell without touch layer. To build touch display, need separate matched 7-inch 4-wire resistive touch digitizer for optical bonding.

Q6: Is the product in stock and deliverable quickly?

A6: Yes, sufficient A+ fully tested original bare cells are stored in warehouse, can be shipped within 1–3 working days after order confirmation, each unit passes full pixel aging test before delivery.
