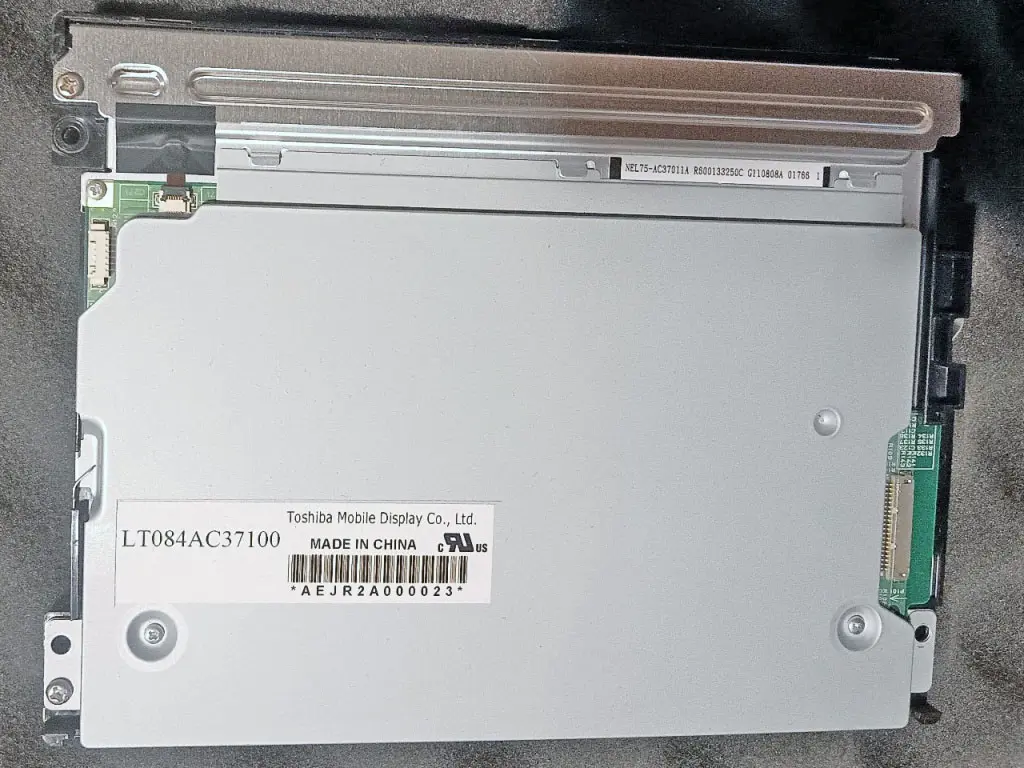

Toshiba LT084AC37100 8.4" 1024x768 XGA Industrial LCD Module
| Parameter | Technical Specification |
|---|---|
| Full Model | LT084AC37100 (Compatible sibling: LT084AC37000 / LT084AC37300) |
| Manufacturer | Toshiba Matsushita Display (TMD) |
| Diagonal Size | 8.4 inches, 4:3 square screen |
| Native Resolution | 1024(RGB) × 768 XGA, 152 PPI |
| LCD Technology | LTPS TN TFT-LCD, Transmissive, Normally White |
| Pixel Arrangement | RGB Vertical Stripe |
| Pixel Pitch | 0.1665 × 0.1665 mm |
| Color Performance | 6-bit single channel, total 262K display colors |
| Signal Interface | Single-channel LVDS (6-bit), 20Pin Molex 53261-0671 connector, 3.3V logic voltage |
| Backlight System | Edge WLED (2 strings), Onboard integrated LED driver IC with PWM dimmingRated Lifespan: 70,000 hours typical |
| Typical Brightness | 320 cd/m² standard industrial brightness |
| Typical Contrast Ratio | 450:1 |
| Viewing Angle (CR≥10, L/R/U/D) | 60° / 60° / 50° / 50°, Optimal viewing: front straight 12 o’clock |
| Response Time (Tr / Td) | 8ms / 17ms typical |
| Standard Refresh Rate | 60Hz fixed |
| Active Display Area (AA) | 170.496 mm (W) × 127.872 mm (H) |
| Overall Outline Dimension | 199.5 mm (W) × 149.5 mm (H) × 13.5 mm thickness |
| Net Weight | ~480g lightweight LTPS module |
| Surface Treatment | Standard transparent polarizer, matte AG anti-glare film optional |
| Operating Temperature Range | -20 ℃ ~ +70 ℃ industrial wide grade |
| Storage Temperature Range | -30 ℃ ~ +80 ℃ |
| Touch Panel | Bare LCD without built-in touch; dedicated 8.4-inch 4-wire resistive touch optional optical bonding |
| Typical OEM Application | Industrial panel PC, CNC HMI, medical equipment, self-service kiosks |
| Compliance Standard | RoHS Lead-Free Certified, mercury-free WLED backlight |
| Product Status | EOL Discontinued legacy industrial panel, A-grade tested spot stock only |
LTPS low-power technology: Lower power consumption than ordinary a-Si panels, extend industrial equipment battery life
Built-in WLED drive & PWM dimming circuit, no separate external LED driver board required, save cabinet space
-20℃ ~ +70℃ wide industrial temperature, adapt to cold unheated workshops and high-temperature closed equipment cabinets
70,000-hour long-life WLED backlight, greatly reduce maintenance frequency for non-stop production equipment
Classic 1024×768 XGA 4:3 resolution, zero distortion compatibility with vintage machine tool & medical control software
Single-channel 20Pin LVDS universal interface, wide matching range of industrial control drive hardware
A-grade original surplus stock, full optical aging inspection before delivery for maintenance repair
Vertical/horizontal CNC machining center, lathe industrial HMI replacement screen
Industrial panel PC, embedded all-in-one machine display module
Medical ventilator, anesthesia machine, portable patient monitoring equipment screen
Self-service ticket vending machine, mini ATM, indoor ordering kiosk display
Laboratory precision measuring instruments, environmental data loggers, visual inspection equipment
Replacement spare panel for Toshiba LT084AC37x series 8.4-inch WLED XGA LTPS TFT modules
