TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel
TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel
Price: $235.00
$230.00/ piece
Add to cart
TM104SDH03 TIANMA
TM104SDH03 TIANMA
TM104SDH03 TIANMA
TM104SDH03 TIANMA

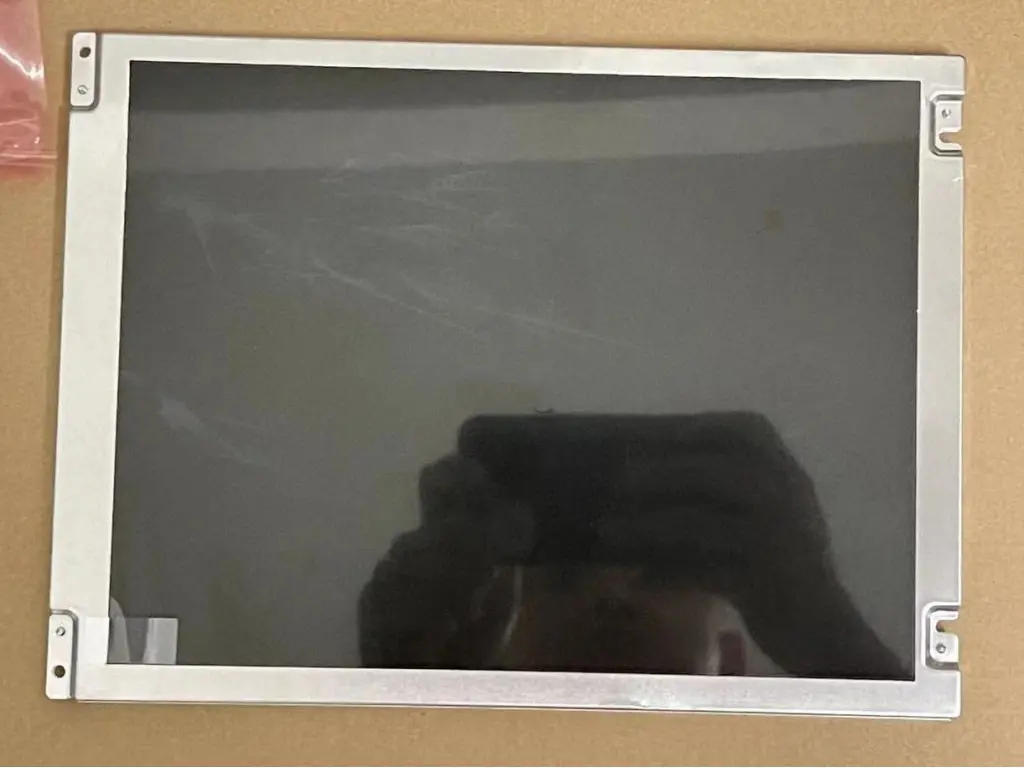

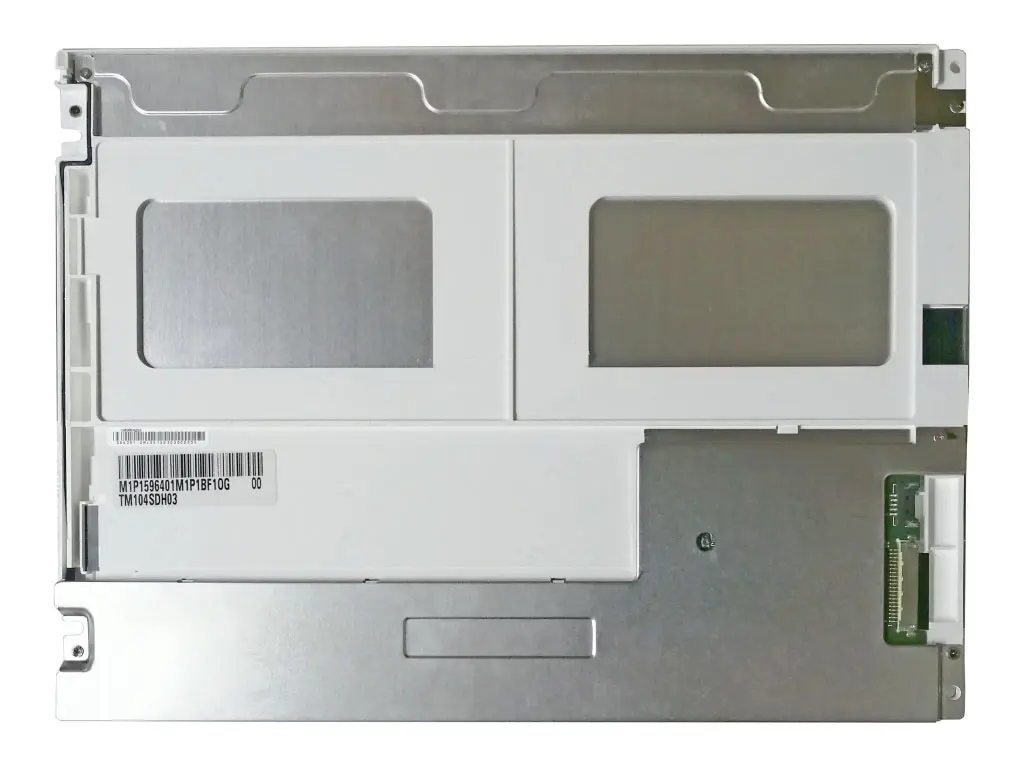

TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel

Price: $235.00
$230.00/ piece
Delivery:
Payment:
Calculate shipping price
Require:*
Product Model* Target price Qty *
Message
Your contact info: Additional info:
Name: *
Mr. Ms.
1. Quote with shipping freight?
Email : *
YES NO
Phone: 2. Which carrier do you perfert?
Company:
Fedex UPS DHL
TNT other
Country:*

TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel

Product Information Product Specifications
Model:
TM104SDH03
Brand:
TIANMA
Application:
Industrial
Size:
10.4"
Resolution:
800(RGB)×600, SVGA, 4:3
Brightness:
350 cd/m² (Typ.)
Contrast Ratio:
500:1 (Typ.) (TM)
Viewing Angle:
70/70/60/70 (Typ.)(CR≥10)
Lamp Type:
5S8P WLED, 50K hrs, With LED Driver
Signal Interface:
LVDS (1 ch, 6/8-bit) , Connector 20 pins
Panel Type:
a-Si TFT-LCD, LCM
Frame Rate:
60Hz
Active Area:
211.2×158.4 mm (H×V)
Outline:
243×179.4×9.1 mm (H×V×D)
Storage Temp:
-30 ~ 85 °C
Operating Temp:
-30 ~ 80 °C
Ordering instructions
Quality:
test ok before ship it
RMA Policy:
RMA 6 month
Sample:
Paid Sample
Stock:
369
Stock Location:
China
Delivery:
WorldWide
Lead Time:
1-3 Days
Weight:
1.000 KG
Overview

TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel

The Tianma TM104SDH03 is a high-performance 10.4-inch industrial TFT-LCD panel engineered for reliability and visual excellence. It features an SVGA resolution (800 × 600 pixels) with a classic 4:3 aspect ratio, offering crisp image quality for professional monitoring. The module is equipped with a high-intensity WLED backlight system providing a typical brightness of 350 cd/m² and a high 500:1 contrast ratio. Designed for seamless connectivity, it utilizes a 20-pin LVDS interface and supports a temperature range of -30°C to +80°C, ensuring stable operation in diverse industrial environments.

TM104SDH03 TIANMAlcd display panel Highlights:

  • Optimized SVGA Resolution: The 800 x 600 pixel density provides enhanced detail and more workspace compared to standard VGA, making it perfect for sophisticated HMI panels and industrial control systems.

  • Rugged 24/7 Durability: Built with industrial-grade components and a long-life LED backlight, this panel is specifically designed for long-term reliability in medical, marine, and factory automation applications.

  • Superior Legibility: Features an anti-glare (AG) surface treatment that minimizes reflections, combined with a high contrast ratio to ensure sharp text and clear data visualization under various lighting conditions.

  • Slim and Lightweight Design: Its compact mechanical profile and low power consumption allow for easy integration into space-constrained enclosures without compromising on thermal management or performance.


TM104SDH03 TIANMAlcd display panel  Specification:

ItemSpecification
Panel BrandTIANMA
Panel ModelTM104SDH03
Screen Size10.4 inch
Resolution800(RGB) × 600 (SVGA)
Display ModeTN, Normally White, Transmissive
Brightness350 cd/m² (Typ.)
Contrast Ratio500:1 (Typ.)
Viewing Angle70/70/60/70 (Typ.)(CR≥10)
Color Depth262K / 16.7M (6-bit / 8-bit)
Backlight TypeWLED
Interface TypeLVDS (1 ch, 6/8-bit) , Connector 20 pins
Input Voltage3.3V (Typ.)
Operating Temperature-30 ~ 80 °C
Storage Temperature-30 ~ 85 °C


TM104SDH03 TIANMAlcd display panel  Applications:

Industrial human-machine interfaces

Portable medical monitoring devices

Gas station pump displays

Building intercom systems

Centralized environmental control panels


P1040XGF1MA00 TIANMA tft lcd module FAQ:

How can I confirm this is an original Tianma panel? Is it brand new?

We guarantee that every TM104SDH03 we provide is 100% original brand new Grade A stock. The back panel features Tianma’s unique anti-counterfeit label and serial number, which can be verified via QR code.

Does this screen use an LVDS interface? Does it require a separate backlight driver board?

Yes, it uses an LVDS (1 ch, 6-bit) interface. This model has a built-in LED backlight circuit, but typically requires an external backlight enable signal. We can provide the detailed pinout manual for your reference

Do you perform a power-on test before shipping? How do you guarantee no bright pixels?

We conduct a strict 5-color "Black/White/RGB" power-on test before shipment. Only screens that meet Grade A standards (no dead or bright pixels) will be shipped, and we can keep the test video for you.

Click here to learn more about: Tianma  displays

Return to Home:https://www.zylcdshop.com/

Product Comparison
Model:
Size:
Resolution:
Brightness:
Contrast Ratio:
Viewing Angle:
Lamp Type:
Signal Interface:
Panel Type:
TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel

TM104SDH03 TIANMA 10.4 inch 800*600 lcd display panel

TM104SDH03

10.4"
800(RGB)×600, SVGA, 4:3
350 cd/m² (Typ.)
500:1 (Typ.) (TM)
70/70/60/70 (Typ.)(CR≥10)
5S8P WLED, 50K hrs, With LED Driver
LVDS (1 ch, 6/8-bit) , Connector 20 pins
a-Si TFT-LCD, LCM
TM104SDHG30  TIANMA  10.4 inch 800*600 lcd display screens

TM104SDHG30 TIANMA 10.4 inch 800*600 lcd display screens

TM104SDHG30

10.4"
800(RGB)×600, 4:3, SVGA
350 cd/m² (Typ.)
500:1 (Typ.) (TM)
70/70/60/70 (Typ.)(CR≥10)
3S12P WLED, 30K hrs, No Driver
TTL (1 ch, 6/8-bit), 60 pins FPC
a-Si TFT-LCD, LCM
TM104SDHG40 TIANMA  10.4 inch 800*600 lcd display screens

TM104SDHG40 TIANMA 10.4 inch 800*600 lcd display screens

TM104SDHG40

10.4"
800(RGB)×600, 4:3, SVGA
400 cd/m² (Typ.)
500:1 (Typ.) (TM)
70/70/60/70 (Typ.)(CR≥10)
8S3P WLED, 50K hrs, With LED Driver
LVDS (1 ch, 6/8-bit), 20 pins Connector
a-Si TFT-LCD
TM104SDH03 is a 10.4" a-Si TFT-LCD, LCM Display screen Product from TIANMA.According to TIANMA's product specification sheet,TM104SDH03 display has a resolution of 800(RGB)×600, SVGA, 4:3, Contrast Ratio is 500:1 (Typ.) (TM),Viewing Angle is 70/70/60/70 (Typ.)(CR≥10),Lamp Type is 5S8P WLED, 50K hrs, With LED Driver,Signal Interface is LVDS (1 ch, 6/8-bit) , Connector 20 pins,Brightness is 350 cd/m² (Typ.).Based on its characteristics, this model is recommended for application in Industrial and other products.The weight of TM104SDH03 after packaging is 1.000KG.We have made every effort to minimize weighing variances; however, we cannot guarantee absolute accuracy.
